Software

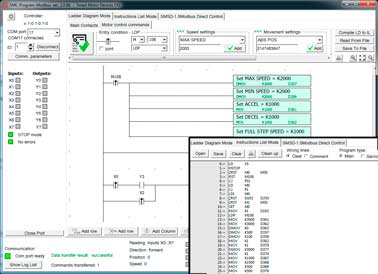

SMC-Program-Modbus is intended for stepper motor controllers SMSD-Modbus series. It can be used to configure the controller parameters and control the drive. The program is intended to control the operation of stepper motor, assemble user programs using LD and IL languages and write them to the controller's memory. Also the software provides possibility of debugging user programs.

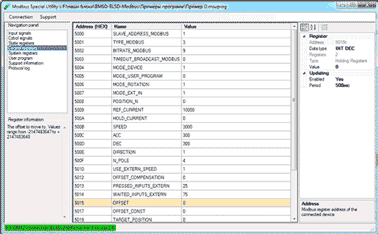

The Modbus Special Utility program is designed to work with programmable controllers for brushed and brushless DC motors: BMSD‑20Modbus, BMSD‑40Modbus and BLSD‑20Modbus. This software provides interface for monitoring and changing the registers of the controller, configuring the parameters of the drive, allows to create and run a control user program.

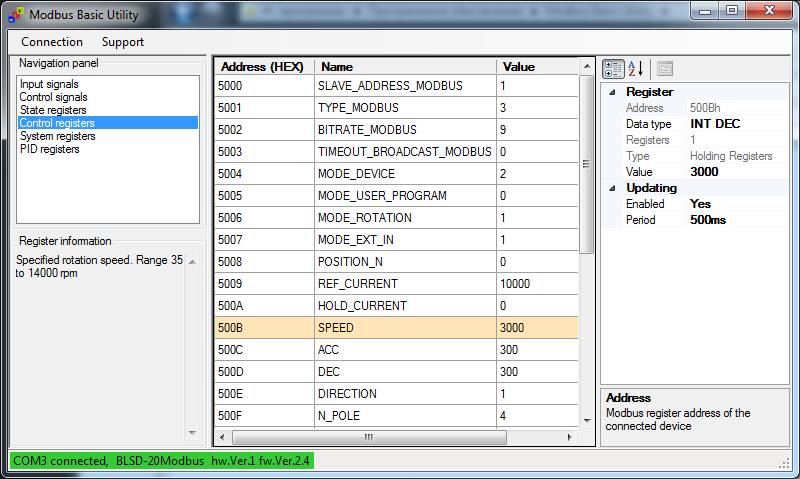

The Modbus Basicl Utility program is designed to configure the operating parameters and PID regulator settings of DC motor controllers (BMD-12, BMSD‑20Modbus, BMSD‑40Modbus and BLSD‑20Modbus). The program allows to read and change the controller registers, configure operating parameters, perform a test run or stop the electric drive.

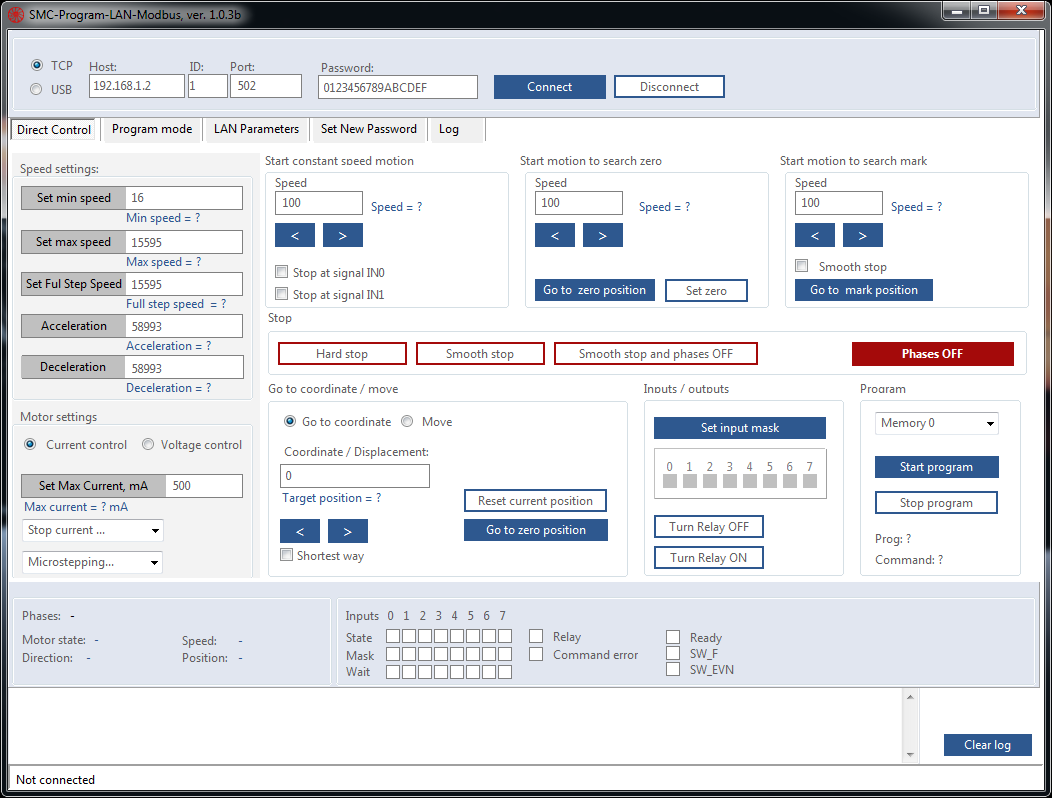

The software SMC-Program-LAN Modbus provides connection and control of controllers SMSD-4.2LAN or SMSD-8.0LAN with Modbus firmware. Connection via Ethernet or USB is possible.

The program provides motion control, adjusting of control parameters (control mode, operation and holding current, microstepping), reading and writing executing programs to the controller, assembling and saving executing programs to a computer, getting the current motor state and etc.

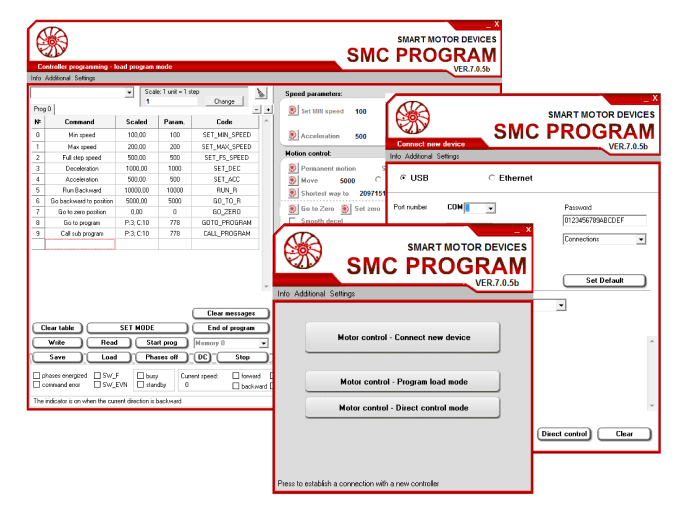

The software SMC‑Program‑LAN provides connection and control of few controllers SMSD‑4.2LAN or SMSD‑8.0LAN connected via Ethernet or USB interface.

The program provides motion control, adjusting of control parameters (control mode, operation and holding current, microstepping), reading and writing executing programs to the controller, assembling and saving executing programs to a computer, getting the current motor state and the list of latest occured errors and events.

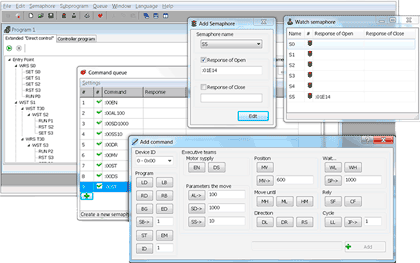

SMC-Program-Extended is used with SMSD-4.2RS-485 controllers for stepper motors. Communication interface and full command list are open and available in SMSD controller documentation. But for time saving, customers' support and convenience we offer ready software for easy work and fast execution programs assembling.

SMC-program-Extended allows simple motion control - set start and working speed, acceleration, motion direction and dispalcement. And another possibility - to assemble execution commands sequences - with operation loops, synchronization with other devices (inputs/outputs control). Real-time commands sending to SMSD is provided.

SMSD-4.2RS-485 controllers provide common data bus addressing - every of the controllers has it's own unique ID, few controllers can be connected to one bus RS-485.

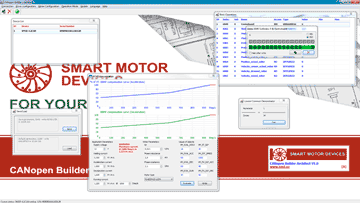

For the purposes of the controller configurating, debugging and operation testing we provide the special free software CANopen Builder.

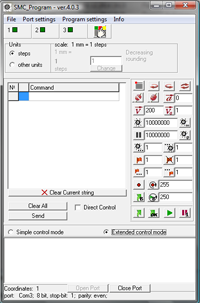

SMC-Program is used with SMSD controllers for stepper motors. Communication interface and full command list are open and available in SMSD controller documentation. But for time saving, customers' support and convenience we offer ready software for easy work and fast execution programs assembling.

SMC-program allow simple motion control - set start and working speed, acceleration, motion direction and dispalcement. And another possibility - to assemble execution commands sequences - with operation loops, synchronization with other devices (inputs/outputs control). Real-time commands sending to SMSD is provided for controllers with Direct Control function. Motion scale and adjustment is provided for SMSD with analog position control function.

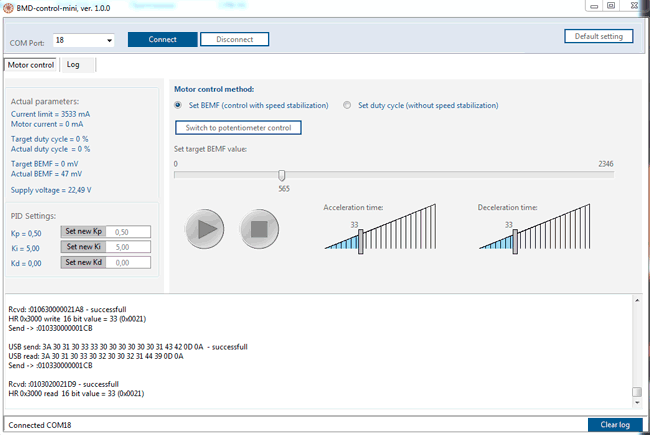

BMD‑control-mini software is designated for quick parameterization of the DC brush motor controller BMD-12. The software also performs a given movement, setting speed and acceleration, starting and stopping the motor, PID setting and control motor state.

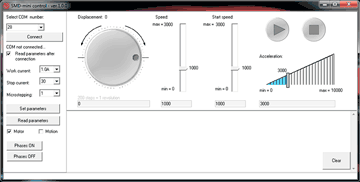

SMD‑mini‑control software is designated for quick parameterization of the stepper motor with integrated controller SM4247 with SMD-1.6mini ver.2. The software also performs a given movement, setting speed and acceleration, starting and stopping the motor, turning on/off motor phases.

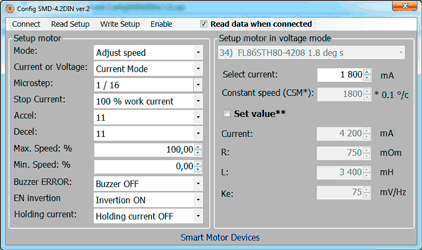

The utility software with a simple interface allows writing and reading of operation settings for the driver SMD‑4.2DIN ver.2.

BxSD-program is intended for base work with BLSD and BMSD controllers. The program allow setting controllers' communication address, control motion parameters and display real motor parameters - speed, direction and revolution counter according encoder feedback information.
