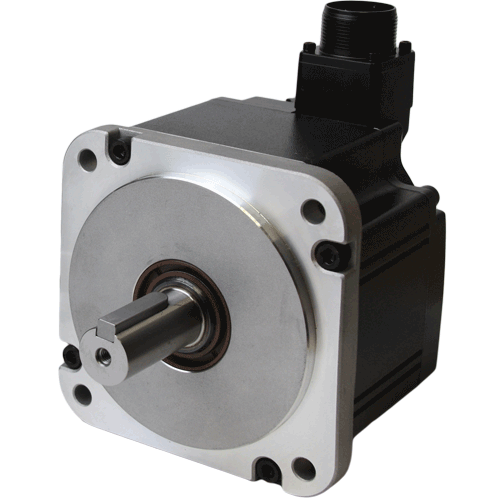

Medium inertia AC servo motor EM3G-09

Output power

850 W

Rated speed

1500 rpm

Maximum speed

3000 rpm

Rated torque

5.41 Nm

Flange

130 mm

EM3G-09

AC brushless servo motor EM3G-09 is a smallest in standard medium speed and medium inertia series. This model delivers enough high torque with a small frame size. This servo motor is supplied with high resolution absolute 23-bit optical or 17-bit magnetic encoder.

Technical data

Rated torque

5.41 Nm

Maximum torque

16.2 Nm

Rated current (200 V models EM3G-09A)

6.8 A

Rated current (400 V models EM3G-09D)

3.4 A

Maximum current (200 V models EM3G-09A)

22.6 A

Maximum current (400 V models EM3G-09D)

10.9 A

Motor inertia (motor without brake)

11.9 kg∙cm²

Motor inertia (motor with brake)

12.5 kg∙cm²

Allowable radial shaft load

490 N

Allowable axial shaft load

98 N

Optional brake holding torque

≥20 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

5.6 kg

Weight (motor with brake)

7.3 kg

Rated torque

5.41 Nm

Maximum torque

16.2 Nm

Rated current (200 V models EM3G-09A)

6.8 A

Rated current (400 V models EM3G-09D)

3.4 A

Maximum current (200 V models EM3G-09A)

22.6 A

Maximum current (400 V models EM3G-09D)

10.9 A

Motor inertia (motor without brake)

11.9 kg∙cm²

Motor inertia (motor with brake)

12.5 kg∙cm²

Allowable radial shaft load

490 N

Allowable axial shaft load

98 N

Optional brake holding torque

≥20 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

5.6 kg

Weight (motor with brake)

7.3 kg

Available motor models

Motor model Encoder Brake Servo driver Input drive supply voltage
EM3G-09ALA224 Absolute optic encoder,
resolution 23-bit
(8 388 608 ppr)
- ED3L-10AMA
ED3L-10AEA
ED3L-10APA
Single or three phase AC
200V...240V
EM3G-09ALA244
EM3G-09ATA224 Absolute magnetic encoder,
resolution 17-bit
(131 072 ppr)
-
EM3G-09ATA244
EM3G-09DLA224 Absolute optic encoder,
resolution 23-bit
(8 388 608 ppr)
- ED3L-10DMA
ED3L-10DEA
ED3L-10DPA
Three phase AC
380V...440V
EM3G-09DLA244
EM3G-09DTA224 Absolute magnetic encoder,
resolution 17-bit
(131 072 ppr)
-
EM3G-09DTA244

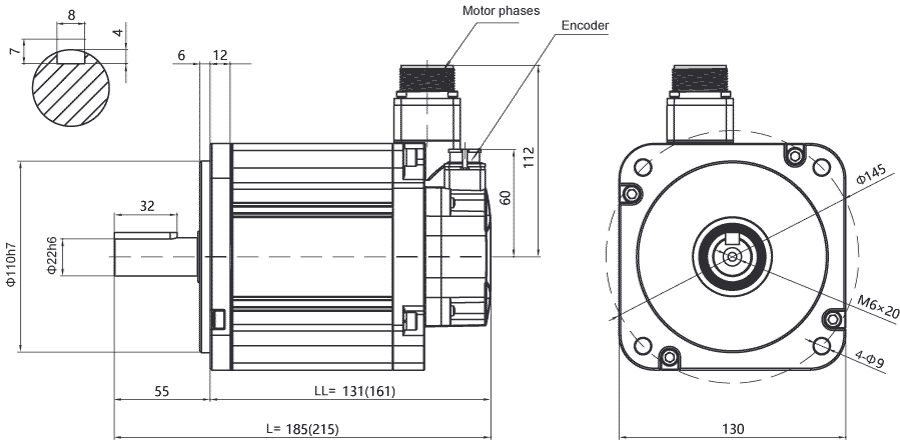

Dimensions of AC servo motor EM3G-09

Dimensions of AC servo motor EM3G-09

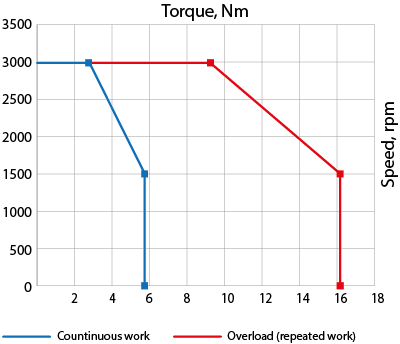

Speed-torque curves of AC servo motor EM3G-09

Speed-torque curves of AC servo motor EM3G-09

Description of AC servo motor EM3G-09

EM3G-09 is a smallest AC brushless servo motor in the standard medium speed and medium inertia series. This model delivers enough high torque with a small frame size. This servo motor is supplied with high resolution absolute 23-bit optical or 17-bit magnetic encoder. Optional 24VDC brake is available.

EM3G servo motor series is designed to provide increased operating speed range without reducing output power. This feature significantly expands the range of possible usage applications and in many cases allows excluding a gearbox, improving reliability and reducing overall cost.
