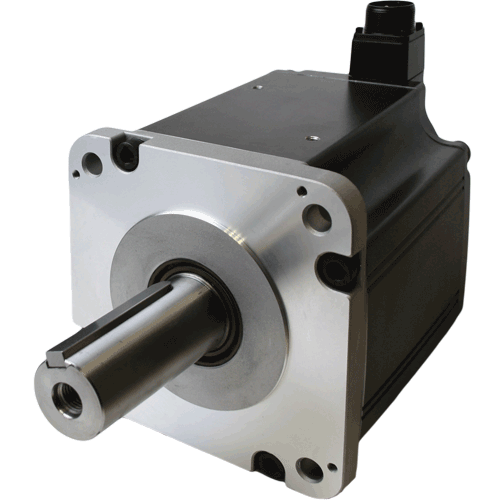

Medium inertia AC servo motor EM3G-75

Output power

7500 W

Rated speed

1500 rpm

Maximum speed

3000 rpm

Rated torque

48.0 Nm

Flange

180 mm

EM3G-75

EM3G-75 is a powerful 7500 W AC brushless servo motor. The motor is medium speed and medium inertia model with expanded range of run speeds. Movement accuracy is ensured by high resolution 23-bit optical or 17-bit magnetic absolute encoder.

Technical data

Rated torque

48.0 Nm

Maximum torque

120.0 Nm

Rated current

26.5 A

Maximum current

70.0 A

Motor inertia (motor without brake)

117 kg∙cm²

Motor inertia (motor with brake)

123 kg∙cm²

Allowable radial shaft load

1764 N

Allowable axial shaft load

588 N

Optional brake holding torque

≥72 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

29.0 kg

Weight (motor with brake)

33.6 kg

Rated torque

48.0 Nm

Maximum torque

120.0 Nm

Rated current

26.5 A

Maximum current

70.0 A

Motor inertia (motor without brake)

117 kg∙cm²

Motor inertia (motor with brake)

123 kg∙cm²

Allowable radial shaft load

1764 N

Allowable axial shaft load

588 N

Optional brake holding torque

≥72 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

29.0 kg

Weight (motor with brake)

33.6 kg

Available motor models

Motor model Encoder Brake Servo driver Input drive supply voltage
EM3G-75DLA224 Absolute optic encoder,
resolution 23-bit
(8 388 608 ppr)
- ED3L-75DMA
ED3L-75DEA
ED3L-75DPA
Three phase AC
380V...440V
EM3G-75DLA244
EM3G-75DTA224 Absolute magnetic encoder,
resolution 17-bit
(131 072 ppr)
-
EM3G-75DTA244

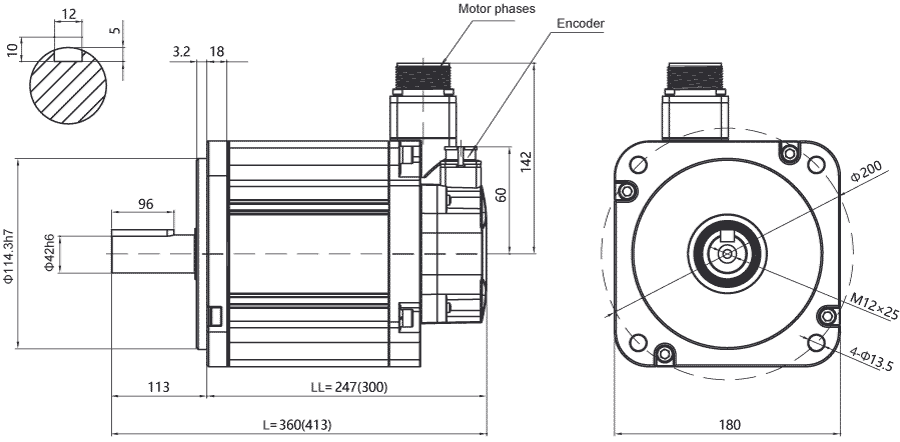

Dimensions of AC servo motor EM3G-75

Dimensions of AC servo motor EM3G-75

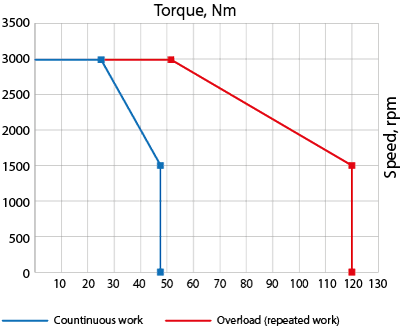

Speed-torque curves of AC servo motor EM3G-75

Speed-torque curves of AC servo motor EM3G-75

Description of AC servo motor EM3G-75

EM3G-75 is a powerful 7500 W AC brushless servo motor. The motor is medium speed and medium inertia model with expanded range of run speeds. Movement accuracy is ensured by high resolution 23-bit optical or 17-bit magnetic absolute encoder. Optional 24 VDC brake is available.

EM3G servo motor series is designed to provide increased operating speed range without reducing output power. This feature significantly expands the range of possible usage applications and in many cases allows excluding a gearbox, improving reliability and reducing overall cost.
