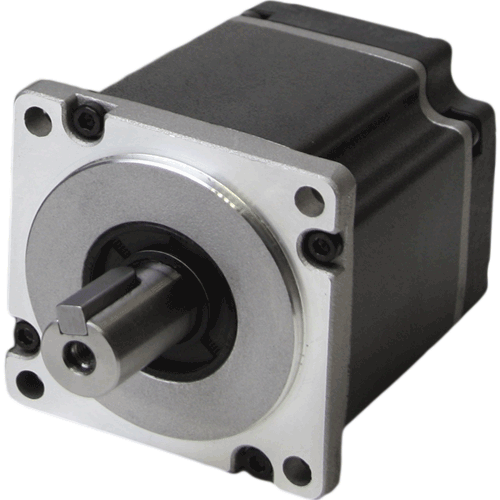

High speed medium inertia AC servo motor EM3J-02
Output power
200 W
Rated speed
3000 rpm
Maximum speed
6000 rpm
Rated torque
0.64 Nm
Flange
60 mm
EM3J-02 is a high speed and medium inertia 200 W synchronous AC brushless servo motor. The motors can be equipped with 17-bit magnetic or 23-bit optical absolute encoder. Optional 24 VDC brake is available.
Technical data
Rated torque
0.64 Nm
Maximum torque (EM3J-02ATA)
1.91 Nm
Maximum torque (EM3J-02ALA)
2.23 Nm
Rated current
1.5 A
Maximum current (EM3J-02ATA)
4.7 A
Maximum current (EM3J-02ALA)
5.8 A
Motor inertia (motor without brake)
0.33 kg∙cm²
Motor inertia (motor with brake)
0.36 kg∙cm²
Allowable radial shaft load
245 N
Allowable axial shaft load
74 N
Optional brake holding torque
≥1.5 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
0.9 kg
Weight (motor with brake)
1.3 kg
Rated torque
0.64 Nm
Maximum torque (EM3J-02ATA)
1.91 Nm
Maximum torque (EM3J-02ALA)
2.23 Nm
Rated current
1.5 A
Maximum current (EM3J-02ATA)
4.7 A
Maximum current (EM3J-02ALA)
5.8 A
Motor inertia (motor without brake)
0.33 kg∙cm²
Motor inertia (motor with brake)
0.36 kg∙cm²
Allowable radial shaft load
245 N
Allowable axial shaft load
74 N
Optional brake holding torque
≥1.5 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
0.9 kg
Weight (motor with brake)
1.3 kg
Available motor models
| Motor model | Encoder | Brake | Waterproof connector | Servo driver | Input drive supply voltage |
| Absolute optic encoder, resolution 23-bit (8 388 608 ppr) | - | - | ED3L-02AEA ED3L-02APA | Single phase AC 200V...240V | |
| EM3J-02ALA241 | ✓ | ||||
| EM3J-02ALA222 | - | ✓ | |||
| EM3J-02ALA242 | ✓ | ||||
| EM3J-02ATA221 | Absolute magnetic encoder, resolution 17-bit (131 072 ppr) | - | - | ||
| EM3J-02ATA241 | ✓ | ||||
| EM3J-02ATA222 | - | ✓ | |||
| EM3J-02ATA242 | ✓ |

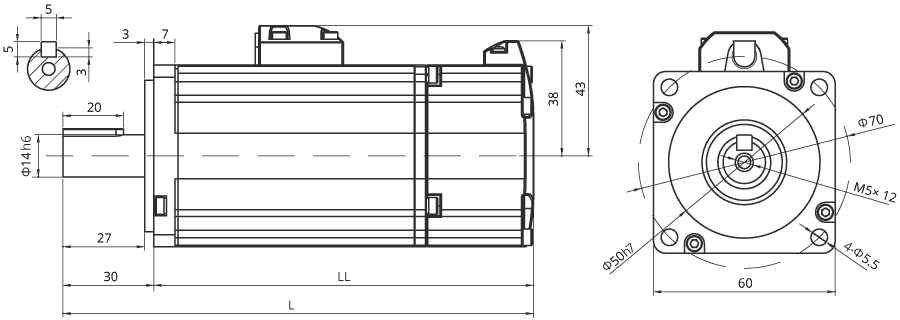

Dimensions of AC servo motor EM3J-02
| Motor model | L, mm | LL, mm |
| EM3J-02ALA22x | 108 | 78 |
| EM3J-02ALA24x | 137 | 107 |
| EM3J-02ATA22x | 127 | 97 |
| EM3J-02ATA24x | 156 | 126 |

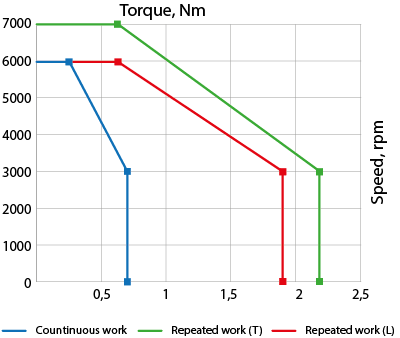

Speed-torque curves of AC servo motor EM3J-02
Description of AC servo motor EM3J-02
EM3J-02 is a high speed and medium inertia 200 W synchronous AC brushless servo motor. The motors can be equipped with 17-bit magnetic or 23-bit optical absolute encoder.
Independent electromagnetic design improve rotor rotation inertia. Inherit all the advantages of EM3A series, but with higher inertia. This high speed series offers a range of output power and different encoder types.
Optional 24 VDC brake is available.
