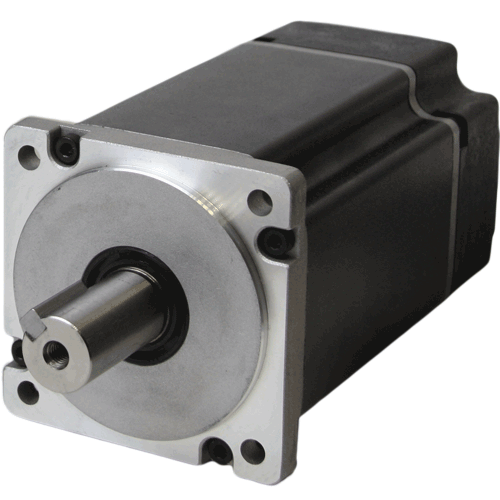

High speed medium inertia AC servo motor EM3J-10

Output power

1000 W

Rated speed

3000 rpm

Maximum speed

6000 rpm

Rated torque

3.18 Nm

Flange

80 mm

EM3J-10

EM3J-10 is a high speed and medium inertia 1000 W synchronous AC brushless servo motor. The motors can be equipped with 17-bit magnetic or 23-bit optical absolute encoder. Optional 24VDC brake is available.

Technical data

Rated torque

3.18 Nm

Maximum torque

9.54 Nm

Rated current

7.1 A

Maximum current

22.0 A

Motor inertia (motor without brake)

2.26 kg∙cm²

Motor inertia (motor with brake)

2.41 kg∙cm²

Allowable radial shaft load

392 N

Allowable axial shaft load

147 N

Optional brake holding torque

≥3.2 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

3.1 kg

Weight (motor with brake)

3.8 kg

Rated torque

3.18 Nm

Maximum torque

9.54 Nm

Rated current

7.1 A

Maximum current

22.0 A

Motor inertia (motor without brake)

2.26 kg∙cm²

Motor inertia (motor with brake)

2.41 kg∙cm²

Allowable radial shaft load

392 N

Allowable axial shaft load

147 N

Optional brake holding torque

≥3.2 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

3.1 kg

Weight (motor with brake)

3.8 kg

Available motor models

Motor model Encoder Brake Waterproof connector Servo driver Input drive supply voltage
EM3J-10ALA221 Absolute optic encoder,
resolution 23-bit
(8 388 608 ppr)
- - ED3L-10AMA
ED3L-10AEA
ED3L-10APA
Single phase AC
200V...240V
EM3J-10ALA241
EM3J-10ALA222 -
EM3J-10ALA242
EM3J-10ATA221 Absolute magnetic encoder,
resolution 17-bit
(131 072 ppr)
- -
EM3J-10ATA241
EM3J-10ATA222 -
EM3J-10ATA242

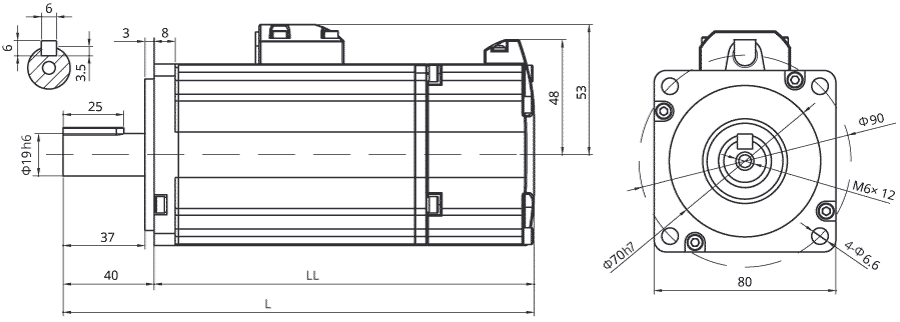

Dimensions of AC servo motor EM3J-10

Dimensions of AC servo motor EM3J-10
Motor model L, mm LL, mm
EM3J-10ALA22x 157 117
EM3J-10ALA24x 190 150
EM3J-10ATA22x 174 134
EM3J-10ATA24x 207 167

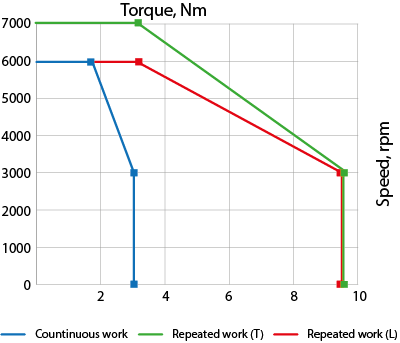

Speed-torque curves of AC servo motor EM3J-10

Speed-torque curves of AC servo motor EM3J-10

Description of AC servo motor EM3J-10

EM3J-10 is a high speed and medium inertia 1000 W synchronous AC brushless servo motor. The motors can be equipped with 17-bit magnetic or 23-bit optical absolute encoder.

Independent electromagnetic design improve rotor rotation inertia. Inherit all the advantages of EM3A series, but with higher inertia. This high speed series offers a range of output power and different encoder types.

Optional 24 VDC brake is available.
