<h2>Available motor models</h2> <div> <table> <tr> <td>Motor model</td> <td>Encoder</td> <td>Brake</td> <td>Servo driver</td> <td>Input drive supply voltage</td> <td>Possible replacement</td> </tr> <tr> <td> EMG-15APA22 EMG-15APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-15A</a> </td> <td rowspan="10">Single or three phase AC 200V...240V</td> <td rowspan="10"> Without brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ATA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ALA224</a> With brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ATA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ALA244</a> </td> </tr> <tr> <td> EMG-15APA24 EMG-15APB24 </td> <td>✓</td> </tr> <tr> <td>EMG-15ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15AMA</a> </td> </tr> <tr> <td>EMG-15ADA24</td> <td>✓</td> </tr> <tr> <td> EMG-15AFD22 EMG-15AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15AMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-15AMA</a> </td> </tr> <tr> <td> EMG-15AFD24 EMG-15AFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15ASA22 EMG-15ASB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15AMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-15AMG</a> </td> </tr> <tr> <td> EMG-15ASA24 EMG-15ASB24</td> <td>✓</td> </tr> <tr> <td> EMG-15ALB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15AMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-15AMA</a> </td> </tr> <tr> <td> EMG-15ALB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DPA22 EMG-15DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-15D</a> </td> <td rowspan="8">Three phase AC 380V...440V</td> <td rowspan="8"> Without brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DTA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DLA224</a> With brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DTA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DLA244</a> </td> </tr> <tr> <td> EMG-15DPA24 EMG-15DPB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15DMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-15DMA</a> </td> </tr> <tr> <td> EMG-15DFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DSA22 EMG-15DSB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15DMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-15DMG</a> </td> </tr> <tr> <td> EMG-15DSA24 EMG-15DSB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DLB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-15DMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-15DMA</a> </td> </tr> <tr> <td> EMG-15DLB24 </td> <td>✓</td> </tr> </table> </div>

Motor models

<h2>Modelos de motores disponibles</h2> <div> <table> <tr> <td>Modelo de motor</td> <td>Codificador</td> <td>Freno</td> <td>Servo controlador</td> <td>Tensión de alimentación del variador de entrada</td> <td>Posible reemplazo</td> </tr> <tr> <td> EMG-15APA22 EMG-15APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-15A</a> </td> <td rowspan="10">Fase única o trifásica AC 200V...240V</td> <td rowspan="10"> Sin freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ATA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ALA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ATA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ALA244</a> </td> </tr> <tr> <td> EMG-15APA24 EMG-15APB24 </td> <td>✓</td> </tr> <tr> <td>EMG-15ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15AMA</a> </td> </tr> <tr> <td>EMG-15ADA24</td> <td>✓</td> </tr> <tr> <td> EMG-15AFD22 EMG-15AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15AMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-15AMA</a> </td> </tr> <tr> <td> EMG-15AFD24 EMG-15AFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15ASA22 EMG-15ASB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15AMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15AMG</a> </td> </tr> <tr> <td> EMG-15ASA24 EMG-15ASB24</td> <td>✓</td> </tr> <tr> <td> EMG-15ALB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15AMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-15AMA</a> </td> </tr> <tr> <td> EMG-15ALB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DPA22 EMG-15DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-15D</a> </td> <td rowspan="8">Trifásica AC 380V...440V</td> <td rowspan="8"> Sin freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DTA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DLA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DTA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DLA244</a> </td> </tr> <tr> <td> EMG-15DPA24 EMG-15DPB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15DMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-15DMA</a> </td> </tr> <tr> <td> EMG-15DFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DSA22 EMG-15DSB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15DMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15DMG</a> </td> </tr> <tr> <td> EMG-15DSA24 EMG-15DSB24 </td> <td>✓</td> </tr> <tr> <td> EMG-15DLB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-15DMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-15DMA</a> </td> </tr> <tr> <td> EMG-15DLB24 </td> <td>✓</td> </tr> </table> </div>

Modelos

models

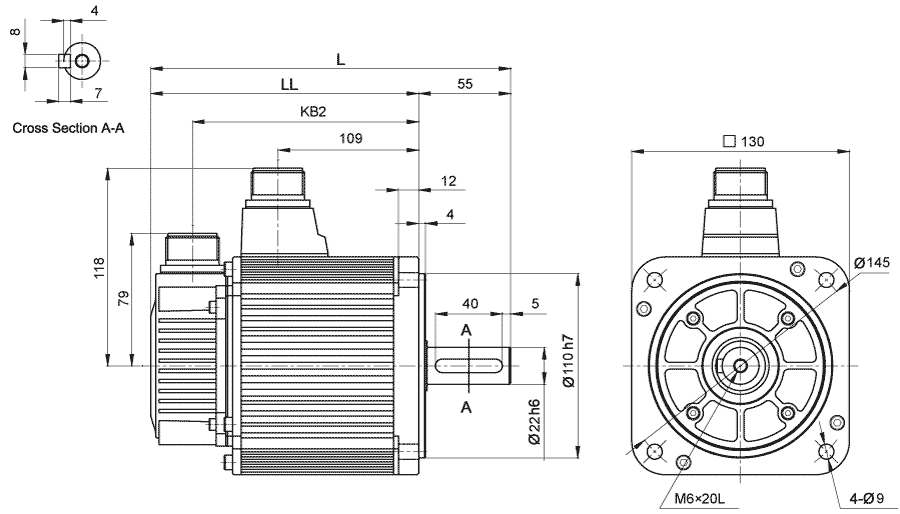

<h2>Dimensions of AC servo motor EMG-15</h2> <picture><img src="/files/products/ac-servo-motors/emg-15/emg-15-dimensions.png" alt="Dimensions of AC servo motor EMG-15"/></picture>

Dimensions

<h2>Dimensiones del servomotor AC EMG-15</h2> <picture><img src="/files/products/ac-servo-motors/emg-15/emg-15-dimensions.png" alt="Dimensiones del servomotor AC EMG-15"/></picture>

Dimensiones

dimensions

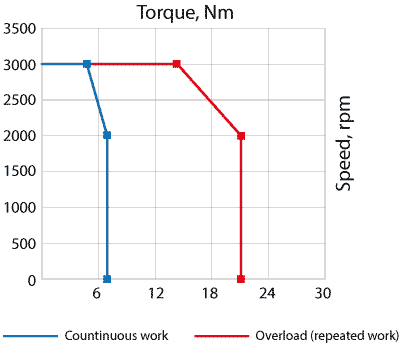

<h2>Speed-torque curves of AC servo motor EMG-15</h2> <picture><img src="/files/products/ac-servo-motors/emg-15/emg-15-chart.png" alt="Speed-torque curves of AC servo motor EMG-15"/></picture>

Speed-torque chart

<h2>Curvas velocidad-par del servomotor AC EMG-15</h2> <picture><img src="/files/products/ac-servo-motors/emg-15/emg-15-chart.png" alt="Curvas velocidad-par del servomotor AC EMG-15"/></picture>

Gráfico

chart

Catalog

Catalogar

сatalog

1500 W AC servo motor EMG-15 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer models <a href="/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a> or <a href="/products/ac-servo-motors/em3g-18" style="color: #770027">EM3G-18</a>.

1500 W AC servo motors EMG-15 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer models EM3G-13 or EM3G-18

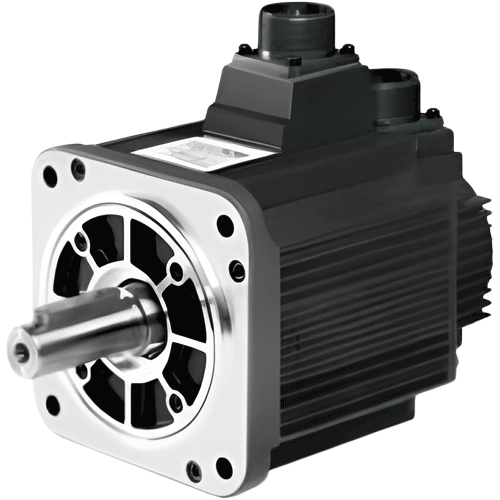

Buy EMG-15 - medium inertia AC servo motor (obsolete)

Medium inertia AC servo motor (obsolete)

EMG-15

Los servomotor AC de 1500 W EMG-15 están obsoletos y no se utilizan para sistemas nuevos. Como reemplazo, se recomienda considerar los modelos más nuevos <a href="/es/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a> o <a href ="/es/products/ac-servo-motors/em3g-18" style="color: #770027">EM3G-18</a>.

Los servomotores de CA de 1500 W EMG-15 están obsoletos y no se utilizan para sistemas nuevos. Como reemplazo, se recomienda considerar los modelos más nuevos EM3G-13 o EM3G-18

Comprar EMG-15 - servomotor AC de media inercia (obsoleto)

Servomotor AC de media inercia (obsoleto)

series

flange

available

construction

voltage

power

rated-speed

max-speed

rated-torque

max-torque

emg-15

Output power

Potencia de salida

Rated speed

Velocidad nominal

Maximum speed

Velocidad máximo

Rated torque

Par nominal

Flange

Brida

Maximum torque

Par máximo

Optional brake voltage

Voltaje de freno opcional

Estun AC servo motors provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW, different feedback systems, brake option is available.

Estun AC servo motors{variable} provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW.

Buy AC servo motors Estun{variable}

AC servo motors Estun

Los servomotores Estun AC proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW, diferentes sistemas de retroalimentación y opción de freno.

Los servomotores Estun AC{variable} proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW.

Medium inertia AC servo motor (obsolete) EMG-15

Technical data

Available motor models

Dimensions of AC servo motor EMG-15

Speed-torque curves of AC servo motor EMG-15

Downloads

Get a quote

Dear guest

Error

Motor model	Encoder	Brake	Servo driver	Input drive supply voltage	Possible replacement
EMG-15APA22 EMG-15APB22	Incremental (2 500 ppr)	-	PRONET-E-15A	Single or three phase AC 200V...240V	Without brake: EM3G-13ATA224 EM3G-13ALA224 EM3G-18ATA224 EM3G-18ALA224 With brake: EM3G-13ATA244 EM3G-13ALA244 EM3G-18ATA244 EM3G-18ALA244
EMG-15APA24 EMG-15APB24		✓
EMG-15ADA22	Incremental 17-bit (131 072 ppr)	-	PRONET-15AMA
EMG-15ADA24		✓
EMG-15AFD22 EMG-15AFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-15AMG ED3L-15AMA
EMG-15AFD24 EMG-15AFB24		✓
EMG-15ASA22 EMG-15ASB22	Absolute 17-bit (131 072 ppr)	-	PRONET-15AMA PRONET-15AMG
EMG-15ASA24 EMG-15ASB24		✓
EMG-15ALB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-15AMG ED3L-15AMA
EMG-15ALB24		✓
EMG-15DPA22 EMG-15DPB22	Incremental (2 500 ppr)	-	PRONET-E-15D	Three phase AC 380V...440V	Without brake: EM3G-13DTA224 EM3G-13DLA224 EM3G-18DTA224 EM3G-18DLA224 With brake: EM3G-13DTA244 EM3G-13DLA244 EM3G-18DTA244 EM3G-18DLA244
EMG-15DPA24 EMG-15DPB24		✓
EMG-15DFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-15DMG ED3L-15DMA
EMG-15DFB24		✓
EMG-15DSA22 EMG-15DSB22	Absolute 17-bit (131 072 ppr)	-	PRONET-15DMA PRONET-15DMG
EMG-15DSA24 EMG-15DSB24		✓
EMG-15DLB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-15DMG ED3L-15DMA
EMG-15DLB24		✓
