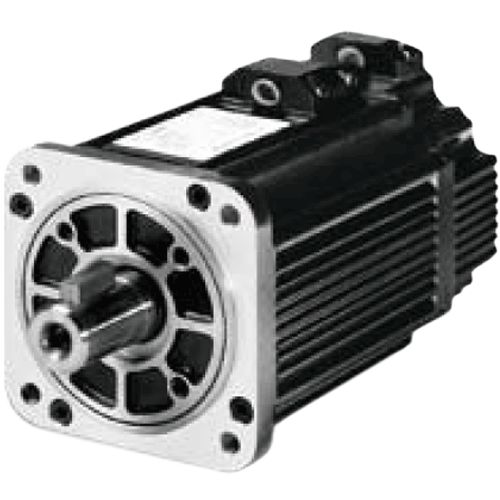

Low power AC servo motor (obsolete) EMJ-01
Output power
100 W
Rated speed
3000 rpm
Maximum speed
5000 rpm
Rated torque
0.32 Nm
Flange
40 mm
100W AC servo motors EMJ-01 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer model EM3A-01.
Technical data
Rated torque
0.32 Nm
Maximum torque
0.96 Nm
Output power
100 W
Optional brake voltage
24 VDC
Rated torque
0.32 Nm
Maximum torque
0.96 Nm
Output power
100 W
Optional brake voltage
24 VDC
Available motor models
| Motor model | Encoder | Brake | Servo driver | Input drive supply voltage | Possible replacement |
| Incremental (2 500 ppr) | - | Single phase AC 200V...240V | EM3A-01ALA EM3A-01ALA | ||
| ✓ | |||||
| Absolute 17-bit (131 072 ppr) | - | | |||
| ✓ |

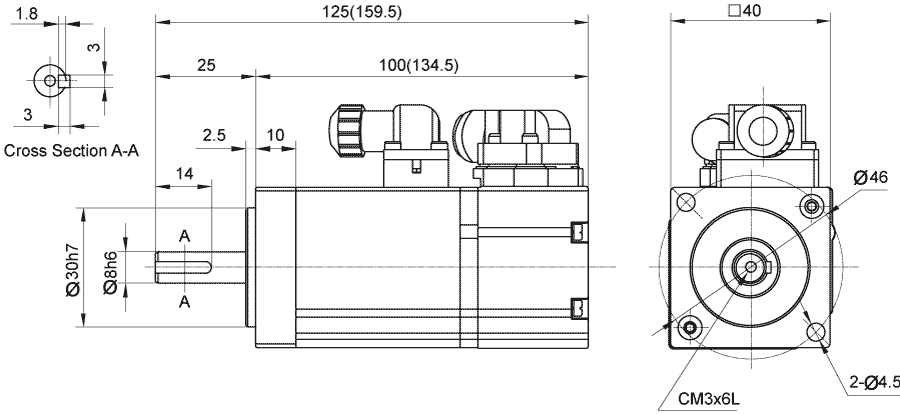

Dimensions of AC servo motor EMJ-01

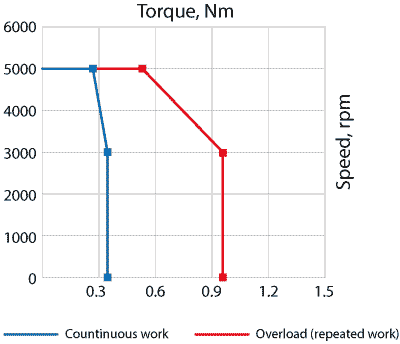

Speed-torque curves of AC servo motor EMJ-01
