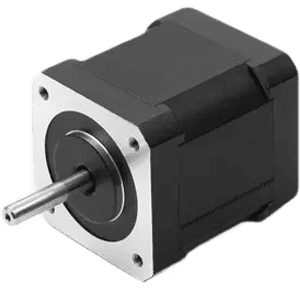

Brushless DC motor DB42M03
Size
NEMA 17
Flange
42 mm
Rated power
52 W
Voltage
24 V
Rated speed
4000 rpm
BLDC motor with quiet running characteristics, high acceleration rates, a long service life and speeds of up to 4000 rpm. By mounting an encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques and a wider performance range we offer planetary gearboxes.
Technical data
Rated torque
1.25 kgf∙cm
Peak torque
3.8 kgf∙cm
Rated current
3.47 A
Peak current
10.6 A
Rotor inertia
48 gcm²
Torque constant
3.6 N∙cm/A
Line to line inductance
1.2 mH
Line to line resistance
0.8 Ohm
Weight
0.45 kg
Length «A»
60.3 mm
Rated torque
1.25 kgf∙cm
Peak torque
3.8 kgf∙cm
Rated current
3.47 A
Peak current
10.6 A
Rotor inertia
48 gcm²
Torque constant
3.6 N∙cm/A
Line to line inductance
1.2 mH
Line to line resistance
0.8 Ohm
Weight
0.45 kg
Length «A»
60.3 mm

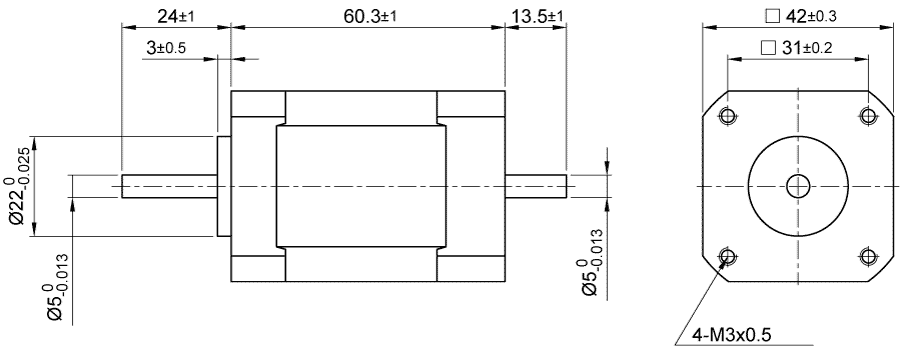

Dimensions of brushless DC motor DB42M03
