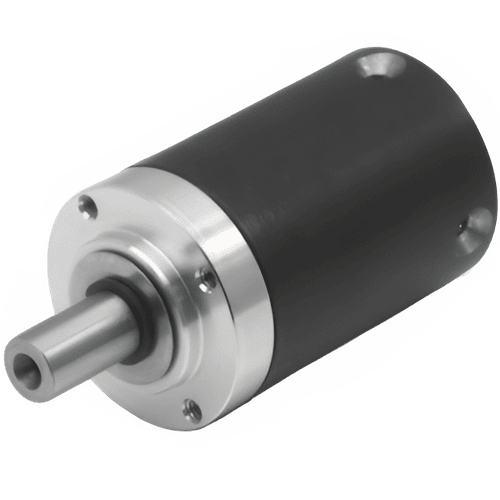

Precision planetary gearbox GPLE22
Suitable motor sizes
NEMA 8 (20 mm), NEMA 11 (28 mm), NEMA 17 (42 mm)
Rated output torque
1.5 Nm
Max. backlash
55´ (arc minutes)
Efficiency
80%
Possible reduction ratios
9, 12, 15
GPLE22 precision low-backlash planetary gearboxes are designed to meet the modern requirements of the industrial market and are manufactured in accordance with DIN ISO 9001. The gearboxes are compact in size and can be easily mounted on standard motor sizes NEMA 8 (20 mm), NEMA 11 (28 mm), NEMA 17 (42 mm).
Technical data
Max. input speed
4500 rpm
Moment of inertia
0.09 kg∙mm²
Admissible radial shaft Load
20 N
Admissible axial shaft Load
20 N
Service life
10000 h
Protection class
IP43
Operation temperature
-25°C ... +90°C
Weight
0.1 kg
Length «L»
34 mm
Max. input speed
4500 rpm
Moment of inertia
0.09 kg∙mm²
Admissible radial shaft Load
20 N
Admissible axial shaft Load
20 N
Service life
10000 h
Protection class
IP43
Operation temperature
-25°C ... +90°C
Weight
0.1 kg
Length «L»
34 mm

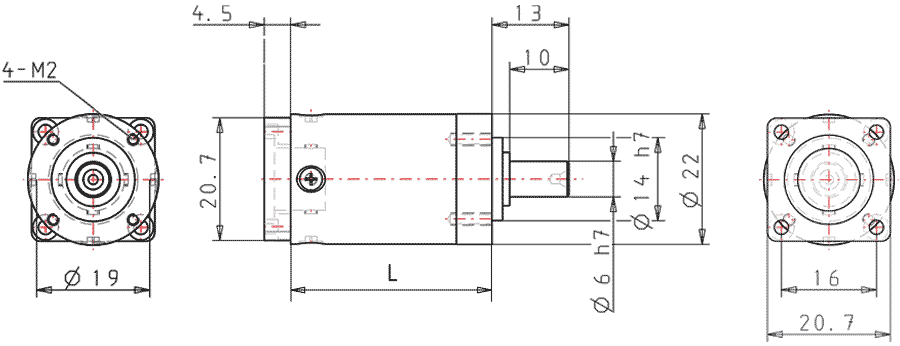

Dimensions of precision planetary gearbox GPLE22
Description of precision planetary gearbox GPLE22
GPLE22 precision low-backlash planetary gearboxes are designed to meet the modern requirements of the industrial market and are manufactured in accordance with DIN ISO 9001. The gearboxes are compact in size and can be easily mounted on standard motor sizes NEMA 8 (20 mm), NEMA 11 (28 mm) and NEMA 17 (42 mm).
GPLE22 gearboxes provide high torque transmission with low backlash, are characterized by high permissible axial and radial loads, high torsional rigidity and silent operation.
Note: GPLE22 gearboxes can only be ordered with a motor.
