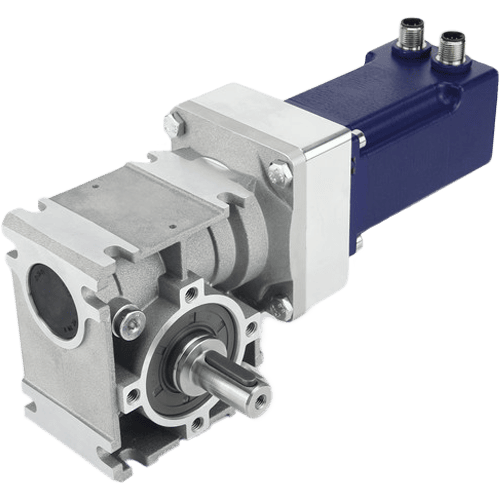

Worm gearbox GSGE60
Suitable motor sizes
NEMA 23 (56 mm)
Rated output torque
35 – 44 Nm
Max. backlash
120´ (arc minutes)
Efficiency
45 - 86%
Possible reduction ratios
5, 15, 25, 50
The GSGE60 gearboxes are intended for motor NEMA 23 (57 mm flange size). The output shaft is located 90° from the motor shaft. Worm gearboxes are characterized by self-locking and characterized by high efficiency. GSGE gearboxes come with a long-term synthetic lubricant, and are therefore maintenance free. The gearbox can only be ordered with a motor.
Reduction ratios of worm gearbox GSGE60
| Reduction ratio | Rated output torque, Nm | Efficiency, % | Max. input speed, rpm | Admissible axial shaft load, N | Admissible radial shaft load (single shaft center), N | Admissible radial shaft load (hollow shaft center), N | Weight, kg |
| 5 | 35 | 86 | 1800 | 1800 | 1100 | 2200 | 1.7 |
| 15 | 44 | 71 | 1600 | 3200 | |||
| 25 | 38 | 63 | 1800 | 3600 | |||
| 50 | 39 | 45 | 1800 | 3600 |

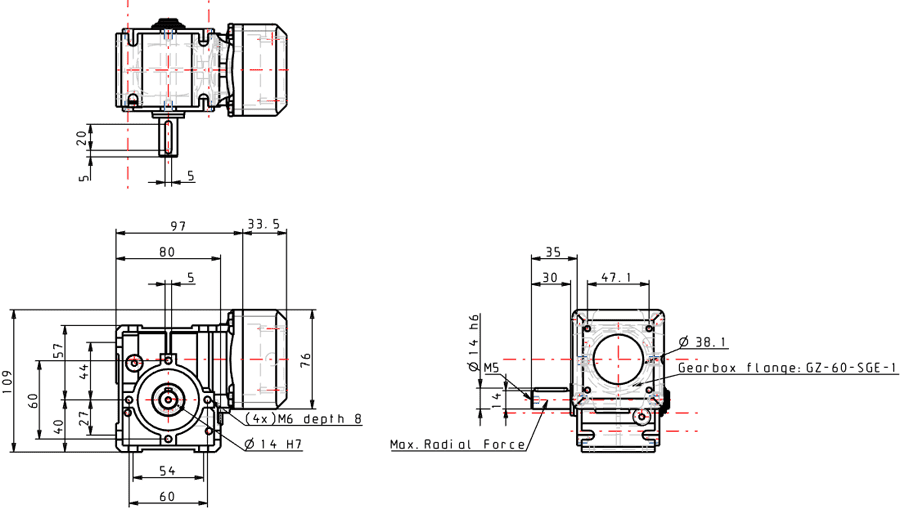

Dimensions of worm gearbox GSGE60
Description of worm gearbox GSGE60
The GSGE60 gearboxes are intended for motor NEMA 23 (57 mm flange size). The output shaft is located 90° from the motor shaft. Worm gearboxes are characterized by self-locking and characterized by high efficiency. GSGE gearboxes come with a long-term synthetic lubricant, and are therefore maintenance free. The gearbox can only be ordered with a motor.
Note: the GSGE60 gearboxes can only be ordered with a motor and are delivered with a hollow shaft. The output shaft with keys and the mounting material are included in the scope of delivery.
