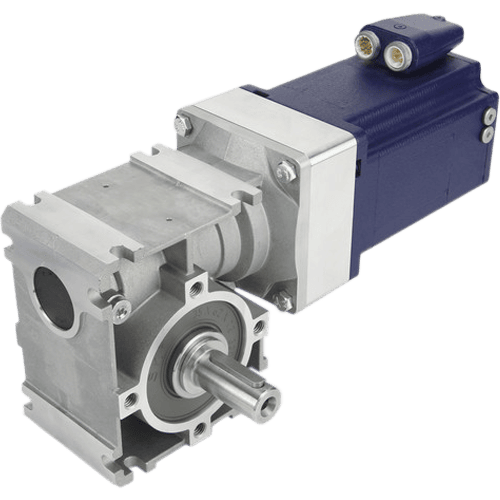

Worm gearbox GSGE80
Suitable motor sizes
NEMA 34 (86 mm)
Rated output torque
61 – 64 Nm
Max. backlash
120´ (arc minutes)
Efficiency
50 - 80%
Possible reduction ratios
12.5, 25, 50
The GSGE80 gearboxes are intended for motor NEMA 34 (86 mm flange size). The output shaft is located 90° from the motor shaft. Worm gearboxes are characterized by self-locking and characterized by high efficiency. GSGE gearboxes come with a long-term synthetic lubricant, and are therefore maintenance free. The gearbox can only be ordered with a motor.
Reduction ratios of worm gearbox GSGE80
| Reduction ratio | Rated output torque, Nm | Efficiency, % | Max. input speed, rpm | Admissible axial shaft load, N | Admissible radial shaft load, N | Weight, kg |
| 12.5 | 61 | 80 | 1800 | 3200 | 1200 | 3 |
| 25 | 64 | 68 | ||||
| 50 | 50 |

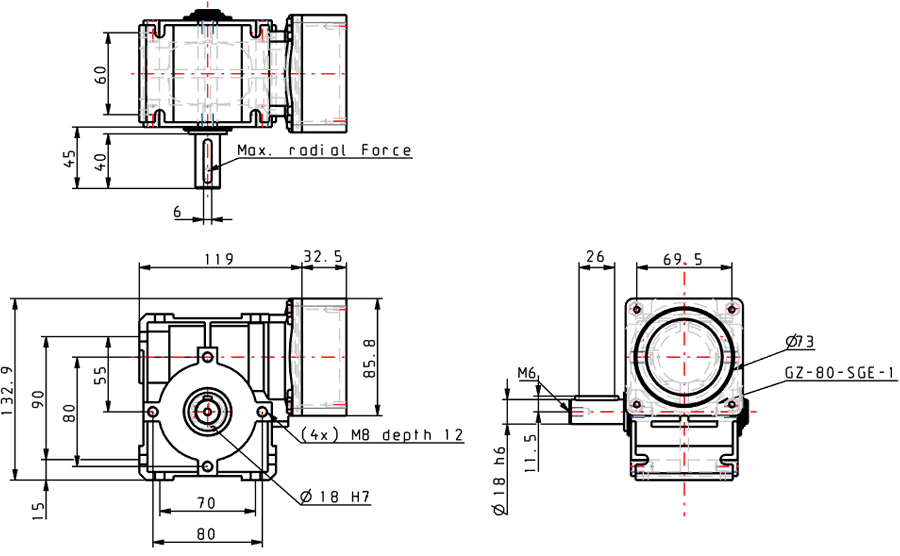

Dimensions of worm gearbox GSGE80
Description of worm gearbox GSGE80
The GSGE80 gearboxes are intended for motor NEMA 34 (86 mm flange size). The output shaft is located 90° from the motor shaft. Worm gearboxes are characterized by self-locking and characterized by high efficiency. GSGE gearboxes come with a long-term synthetic lubricant, and are therefore maintenance free. The gearbox can only be ordered with a motor.
Note: the GSGE80 gearboxes can only be ordered with a motor and are delivered with a hollow shaft. The output shaft with keys and the mounting material are included in the scope of delivery.
