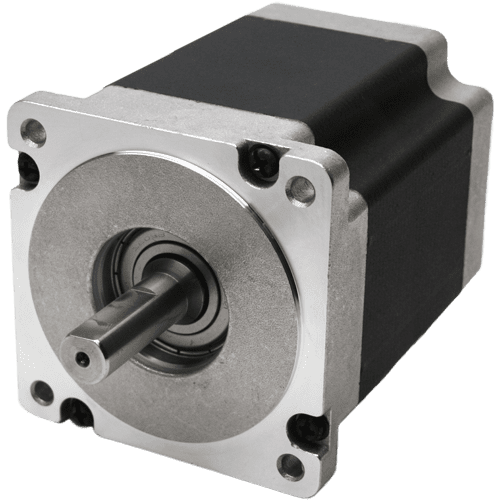

NEMA 34 Stepper motor FL86STH118-6004A
Size
NEMA 34
Flange
86 mm
Holding torque
87 kgf∙cm
Current per phase
6.0 A
Length
118 mm
The FL86STH118-6004A stepper motors are known for their high torque capabilities. They are commonly utilized in medium to large-sized industrial equipment to drive linear motion systems and CNC machines. These motors find widespread application in industrial automation equipment, including assembly and packaging machines, robotics, and welding equipment.
Technical data
Rotor inertia
2700 gcm²
Phase inductance
6.5 mH
Phase resistance
0.6 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
3.8 kg
Rotor inertia
2700 gcm²
Phase inductance
6.5 mH
Phase resistance
0.6 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
3.8 kg

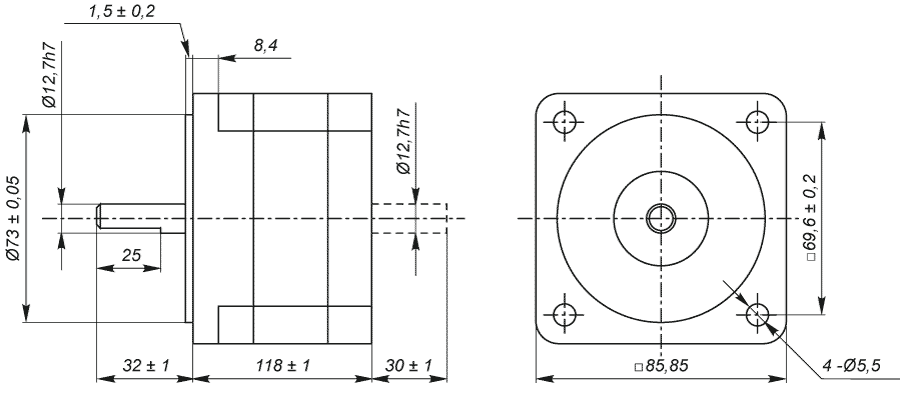

Dimensions of stepper motor FL86STH118-6004A
