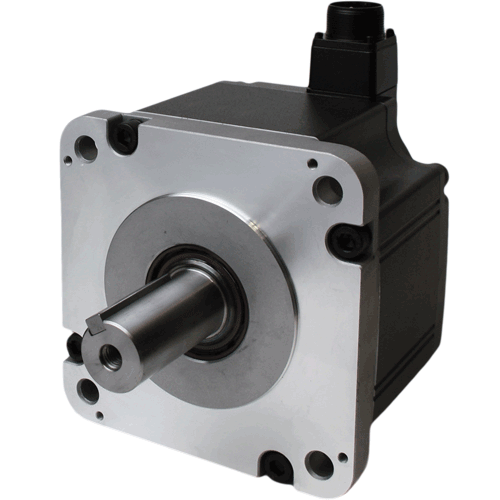

Medium inertia AC servo motor EM3G-44

Output power

4400 W

Rated speed

1500 rpm

Maximum speed

3000 rpm

Rated torque

28.4 Nm

Flange

180 mm

EM3G-44

AC brushless servo motor EM3G-44 provides higher output torque compare to the same size 5 kW models. The motor is medium speed and medium inertia model with expanded range of run speeds. Movement accuracy is ensured by high resolution 23-bit optical or 17-bit magnetic absolute encoder.

Technical data

Rated torque

28.4 Nm

Maximum torque

80.0 Nm

Rated current

16.8 A

Maximum current

49.5 A

Motor inertia (motor without brake)

58.8 kg∙cm²

Motor inertia (motor with brake)

64.6 kg∙cm²

Allowable radial shaft load

1470 N

Allowable axial shaft load

490 N

Optional brake holding torque

≥44 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

17.6 kg

Weight (motor with brake)

21.8 kg

Rated torque

28.4 Nm

Maximum torque

80.0 Nm

Rated current

16.8 A

Maximum current

49.5 A

Motor inertia (motor without brake)

58.8 kg∙cm²

Motor inertia (motor with brake)

64.6 kg∙cm²

Allowable radial shaft load

1470 N

Allowable axial shaft load

490 N

Optional brake holding torque

≥44 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

17.6 kg

Weight (motor with brake)

21.8 kg

Available motor models

Motor model Encoder Brake Servo driver Input drive supply voltage
EM3G-44DLA224 Absolute optic encoder,
resolution 23-bit
(8 388 608 ppr)
- ED3L-50DMA
ED3L-50DEA
ED3L-50DPA
Three phase AC
380V...440V
EM3G-44DLA244
EM3G-44DTA224 Absolute magnetic encoder,
resolution 17-bit
(131 072 ppr)
-
EM3G-44DTA244

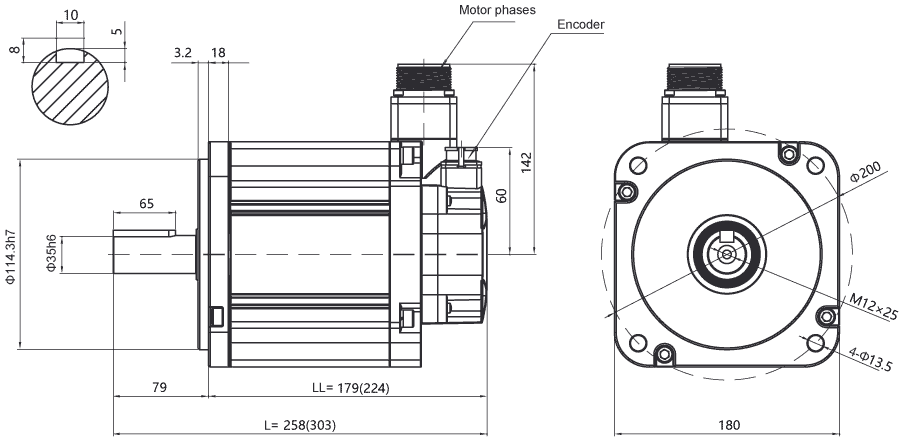

Dimensions of AC servo motor EM3G-44

Dimensions of AC servo motor EM3G-44

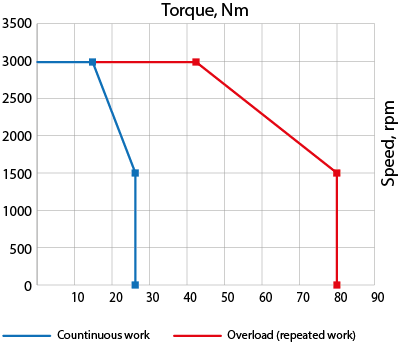

Speed-torque curves of AC servo motor EM3G-44

Speed-torque curves of AC servo motor EM3G-44

Description of AC servo motor EM3G-44

AC brushless servo motor EM3G-44 provides higher output torque compare to the same size 5 kW models. The motor is medium speed and medium inertia model with expanded range of run speeds. Movement accuracy is ensured by high resolution 23-bit optical or 17-bit magnetic absolute encoder. Optional 24 VDC brake is available.

EM3G servo motor series is designed to provide increased operating speed range without reducing output power. This feature significantly expands the range of possible usage applications and in many cases allows excluding a gearbox, improving reliability and reducing overall cost.
