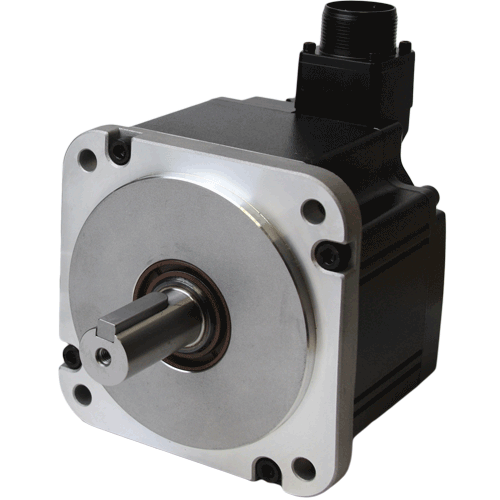

Low speed high inertia AC servo motor EM3L-10
Output power
1000 W
Rated speed
1000 rpm
Maximum speed
1500 rpm
Rated torque
9.5 Nm
Flange
130 mm
EM3L-10 is a high torque series AC brushless motor. This low speed and high inertia model is designed for high-torque applications. The motor is supplied with modern 23-bit optical or 17-bit magnetic absolute encoder. Optional 24 VDC brake is available.
Technical data
Rated torque
9.5 Nm
Maximum torque
31.0 Nm
Rated current
3.1 A
Maximum current
10.0 A
Motor inertia (motor without brake)
22.3 kg∙cm²
Motor inertia (motor with brake)
22.9 kg∙cm²
Allowable radial shaft load
980 N
Allowable axial shaft load
392 N
Optional brake holding torque
≥20 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
8.3 kg
Weight (motor with brake)
10.0 kg
Rated torque
9.5 Nm
Maximum torque
31.0 Nm
Rated current
3.1 A
Maximum current
10.0 A
Motor inertia (motor without brake)
22.3 kg∙cm²
Motor inertia (motor with brake)
22.9 kg∙cm²
Allowable radial shaft load
980 N
Allowable axial shaft load
392 N
Optional brake holding torque
≥20 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
8.3 kg
Weight (motor with brake)
10.0 kg
Available motor models
| Motor model | Encoder | Brake | Servo driver | Input drive supply voltage |
| EM3L-10DLA224 | Absolute optic encoder, resolution 23-bit (8 388 608 ppr) | - | ED3L-10DMA ED3L-10DEA ED3L-10DPA | Three phase AC 380V...440V |
| EM3L-10DLA244 | ✓ | |||
| EM3L-10DTA224 | Absolute magnetic encoder, resolution 17-bit (131 072 ppr) | - | ||
| ✓ |

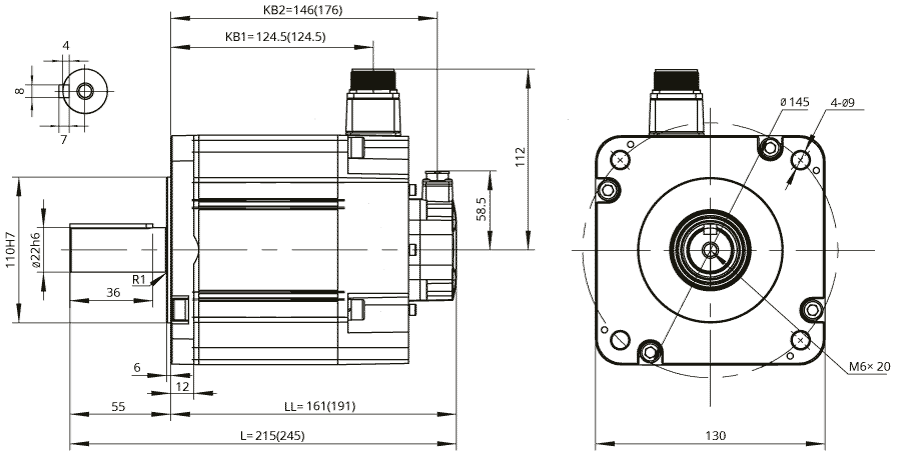

Dimensions of AC servo motor EM3L-10

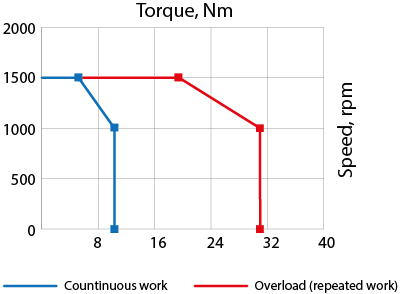

Speed-torque curves of AC servo motor EM3L-10
