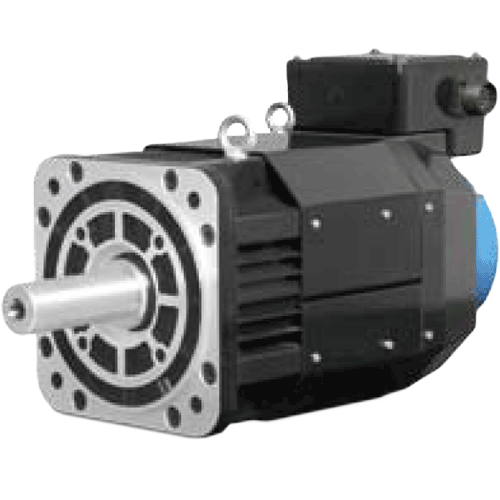

High power AC servo motor EMB-1A

Output power

11000 W

Rated speed

1500 rpm

Maximum speed

2000 rpm

Rated torque

70.0 Nm

Flange

220 mm

EMB-1A

High power AC servo motor EMB-1A series are used in machine tools, handling machines, foodstuff processing or textile machines. These powerful series motors are suitable for high torque applications with demands on precision and dynamic motion. The motors are equipped with 17-bit absolute encoder or resolver. Models with holding brake are available.

Technical data

Rated torque

70.0 Nm

Maximum torque

175.0 Nm

Rated current

28.0 A

Maximum current

70.0 A

Motor inertia (motor without brake)

271.6 kg∙cm²

Motor inertia (motor with brake)

278.9 kg∙cm²

Optional brake holding torque

≥100 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

54.7 kg

Weight (motor with brake)

60.7 kg

Rated torque

70.0 Nm

Maximum torque

175.0 Nm

Rated current

28.0 A

Maximum current

70.0 A

Motor inertia (motor without brake)

271.6 kg∙cm²

Motor inertia (motor with brake)

278.9 kg∙cm²

Optional brake holding torque

≥100 Nm

Optional brake voltage

24 VDC

Weight (motor without brake)

54.7 kg

Weight (motor with brake)

60.7 kg

Available motor models

Motor model Encoder Brake Servo driver Input drive supply voltage
EMB-1ADSA22 Absolute optic encoder,
resolution 17-bit
(131 072 ppr)
- PRONET-1ADMA
PRONET-1ADMG
Three phase AC
380V...440V
EMB-1ADSA24
EMB-1ADRA22 Resolver - PRONET-1ADMB
EMB-1ADRA24

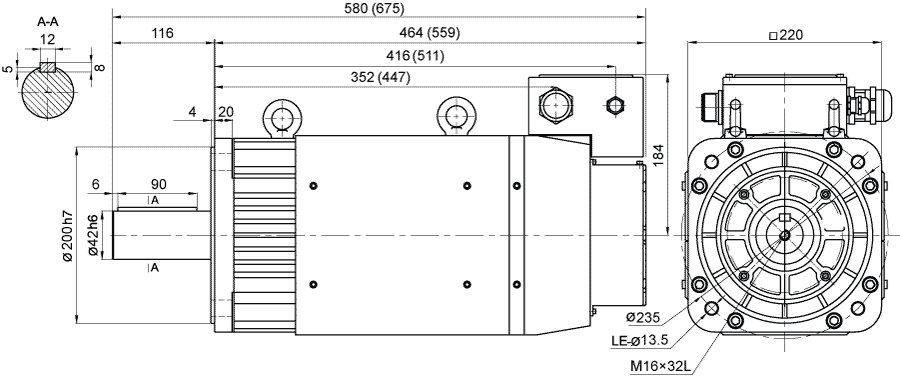

Dimensions of AC servo motor EMB-1A

Dimensions of AC servo motor EMB-1A

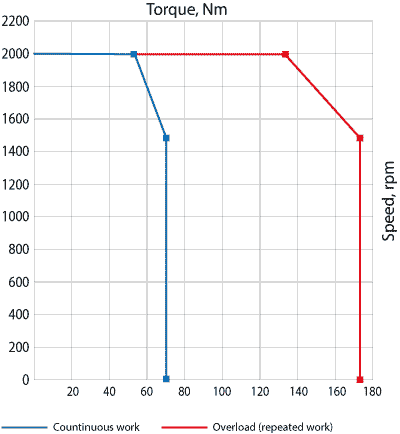

Speed-torque curves of AC servo motor EMB-1A

Speed-torque curves of AC servo motor EMB-1A
