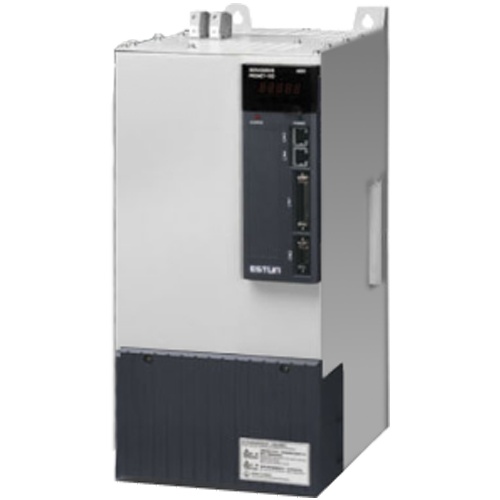

AC servo driver High power PRONET
Output power
11000 - 22000 W
Voltage
400 V
Control methods
Speed, position, torque
Communication protocols
RS-485 Modbus, CANOpen, Ethercat
High power versions of PRONET servo driver provide smooth, precise movement of servo motors up to 22 kW. The drivers perform speed, position and torque control. CANopen and Ethercat versions are available.
Technical data
Output motor power
11000 - 22000 W
Input voltage
Three-phase 400V (380 to 440V), 50/60Hz
Motor control
SVPWM
Control methods
Speed, position, torque
Speed control range
1:5000
Communication interfaces
RS-485, CANOpen, Ethercat
Discrete inputs
8 adjustable signals, 24 VDC control
Pulse position control inputs
PULS/SIGN
Analog inputs
2 inputs -10V...+10V for speed and torque control and limit
Discrete outputs
4, adjustable
Pulse outputs
PAO, PBO, PCO
Output motor power
11000 - 22000 W
Input voltage
Three-phase 400V (380 to 440V), 50/60Hz
Motor control
SVPWM
Control methods
Speed, position, torque
Speed control range
1:5000
Communication interfaces
RS-485, CANOpen, Ethercat
Discrete inputs
8 adjustable signals, 24 VDC control
Pulse position control inputs
PULS/SIGN
Analog inputs
2 inputs -10V...+10V for speed and torque control and limit
Discrete outputs
4, adjustable
Pulse outputs
PAO, PBO, PCO
Available driver models
| Standard version with CANopen | Ethercat version | Output power | Compatible motor models | Recommended replacement |
| PRONET-1ADMG | PRONET-1ADEG-EC | 11000 W | EMB-1ADSA | - |
| PRONET-1ADMB | - | EMB-1ADRA | - | |
| PRONET-1EDMG | PRONET-1EDEG-EC | 15000 W | EMB-1EDSA | - |
| PRONET-1EDMB | - | EMB-1EDRA | - | |
| PRONET-2BDMG | PRONET-2BDEG-EC | 22000 W | EMB-2BDSC | - |
| PRONET-2BDMB | - | EMB-2BDRC | - | |
| PRONET-75DMA (obsolete) | PRONET-75DEA-EC (obsolete) | 7500 W | EMB-75DSA (obsolete) | ED3L-75DMA ED3L-75DEA (motors EMB-75DLA, EM3G-75DLA, EM3G-75DTA) |
| PRONET-75DMB (obsolete) | - | EMB-75DRA (obsolete) | ||
| PRONET-1ADMA (obsolete) | PRONET-1ADEA-EC (obsolete) | 11000 W | EMB-1ADSA | PRONET-1ADMG PRONET-1ADEG-EC |
| PRONET-1EDMA (obsolete) | PRONET-1EDEA-EC (obsolete) | 15000 W | EMB-1EDSA | PRONET-1EDMG PRONET-1EDEG-EC |
| PRONET-2BDMA (obsolete) | PRONET-2BDEA-EC (obsolete) | 22000 W | EMB-2BDSC | PRONET-2BDMG PRONET-2BDEG-EC |
Description of AC servo driver High power PRONET
High power versions of PRONET servo drives provide smooth, precise and dynamic motion control of servo motors up to 22 kW. The drivers are intended to control high power 3-phase synchronous servo motors. Speed, position or torque control are performed with all major industrial methods. Versions with CANOpen and Ethercat are available.
Upgrade your machining processes with the advanced servo drives today.
Control methods:
- Analog speed control (zero clamp function is available)
- Contact speed control (up to 7 values, control with discrete inputs)
- Speed control with parameter reference
- Pulse position control (pulse Inhibit function is available)
- Contact position control (up to 16 coordinates or displacement values)
- Analog torque control
- Combinations of the above control methods are available
