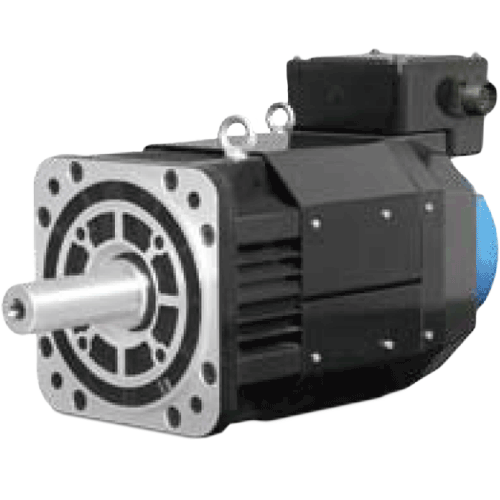

High power AC servo motor EMB-75
Output power
7500 W
Rated speed
1500 rpm
Maximum speed
2000 rpm
Rated torque
47.8 Nm
Flange
220 mm
High power AC servo motor EMB-75 series are used in machine tools, handling machines, foodstuff processing or textile machines. These powerful series motors are suitable for high torque applications. The motors are equipped with 17-bit absolute encoder or resolver. Models with holding brake are available. It is recommended to use newer servo motor model EM3G-75.
Technical data
Rated torque
47.8 Nm
Maximum torque
143.4 Nm
Rated current
18.0 A
Maximum current
56.0 A
Motor inertia (motor without brake)
186.2 kg∙cm²
Motor inertia (motor with brake)
193.6 kg∙cm²
Optional brake holding torque
≥100 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
43.8 kg
Weight (motor with brake)
49.8 kg
Rated torque
47.8 Nm
Maximum torque
143.4 Nm
Rated current
18.0 A
Maximum current
56.0 A
Motor inertia (motor without brake)
186.2 kg∙cm²
Motor inertia (motor with brake)
193.6 kg∙cm²
Optional brake holding torque
≥100 Nm
Optional brake voltage
24 VDC
Weight (motor without brake)
43.8 kg
Weight (motor with brake)
49.8 kg
Available motor models
| Motor model | Encoder | Brake | Servo driver | Input drive supply voltage | Recommended replacement |
| Absolute optic encoder, resolution 23-bit (8 388 608 ppr) | - | ED3L-75DMA ED3L-75DEA ED3L-75DPA | Three phase AC 380V...440V | - | |
| EMB-75DLA24 | ✓ | - | |||
| Absolute optic encoder, resolution 17-bit (131 072 ppr) | - | | EMB-75DLA22 EM3G-75DTA224 | ||
| EMB-75DSA24 | ✓ | EMB-75DLA24 EM3G-75DTA244 | |||
| Resolver | - | | EMB-75DLA22 EM3G-75DTA224 | ||
| EMB-75DRA24 | ✓ | EMB-75DLA24 EM3G-75DTA244 |

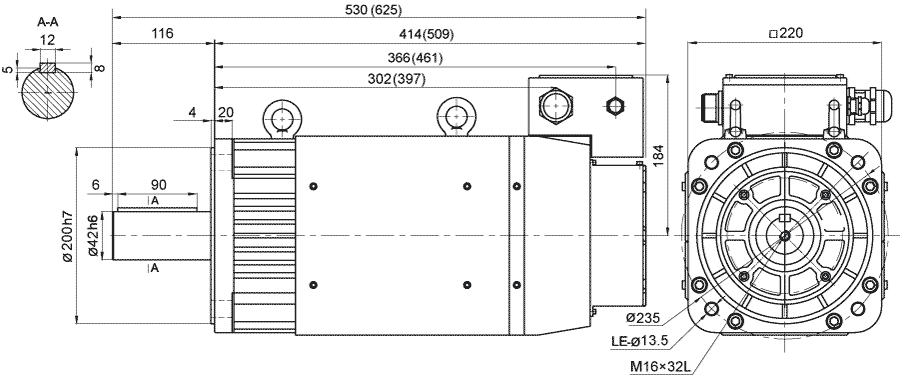

Dimensions of AC servo motor EMB-75

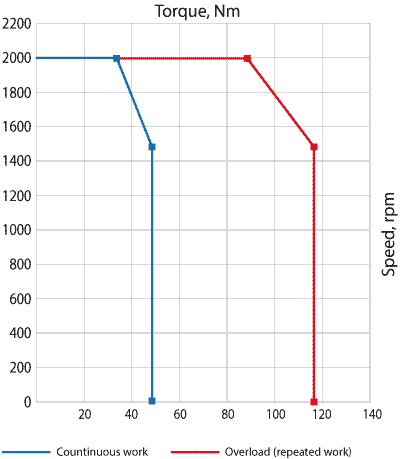

Speed-torque curves of AC servo motor EMB-75
