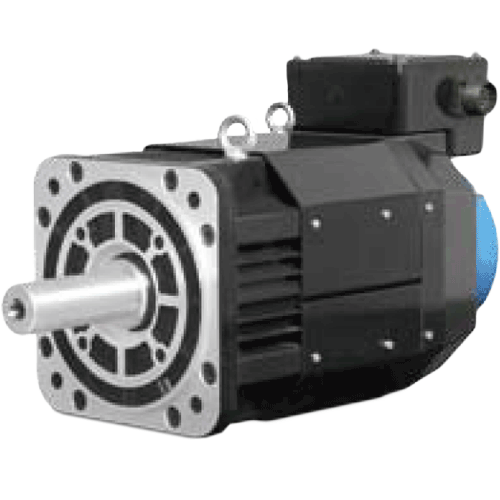

High power AC servo motor EMB-2B

Output power

22000 W

Rated speed

1500 rpm

Maximum speed

2000 rpm

Rated torque

140.0 Nm

Flange

280 mm

EMB-2B

High power AC servo motor EMB-2B series are used in machine tools, handling machines, foodstuff processing or textile machines. These powerful series motors are suitable for high torque applications with demands on precision and dynamic motion. The motors are equipped with 17-bit absolute encoder or resolver.

Technical data

Rated torque

140.0 Nm

Maximum torque

350.0 Nm

Rated current

52.0 A

Maximum current

130.0 A

Motor inertia (motor without brake)

576.6 kg∙cm²

Motor inertia (motor with brake)

601.6 kg∙cm²

Optional brake holding torque

≥150 Nm

Optional brake voltage

24 VDC

Rated torque

140.0 Nm

Maximum torque

350.0 Nm

Rated current

52.0 A

Maximum current

130.0 A

Motor inertia (motor without brake)

576.6 kg∙cm²

Motor inertia (motor with brake)

601.6 kg∙cm²

Optional brake holding torque

≥150 Nm

Optional brake voltage

24 VDC

Available motor models

Motor model Encoder Brake Servo driver Input drive supply voltage
EMB-2BDSC22 Absolute optic encoder,
resolution 17-bit
(131 072 ppr)
- PRONET-2BDMA
PRONET-2BDMG
Three phase AC
380V...440V
EMB-2BDSC24
EMB-2BDRC22 Resolver - PRONET-2BDMB

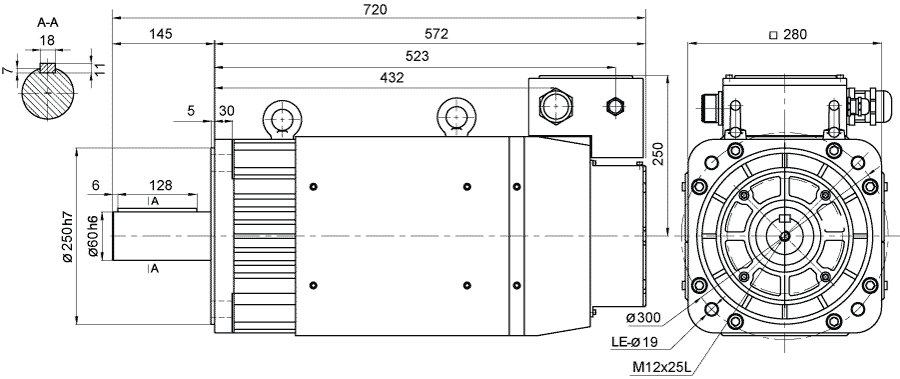

Dimensions of AC servo motor EMB-2B

Dimensions of AC servo motor EMB-2B

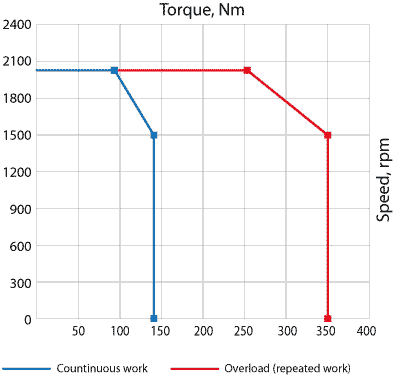

Speed-torque curves of AC servo motor EMB-2B

Speed-torque curves of AC servo motor EMB-2B
