<h2>Available motor models</h2> <div> <table> <tr> <td>Motor model</td> <td>Encoder</td> <td>Brake</td> <td>Servo driver</td> <td>Input drive supply voltage</td> <td>Possible replacement</td> </tr> <tr> <td> EMG-10APA22 EMG-10APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-10A</a> </td> <td rowspan="10">Single or three phase AC 200V...240V</td> <td rowspan="10"> Without brake: <a href="/products/ac-servo-motors/em3g-09">EM3G-09ATA224</a> <a href="/products/ac-servo-motors/em3g-09">EM3G-09ALA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> With brake: <a href="/products/ac-servo-motors/em3g-09">EM3G-09ATA244</a> <a href="/products/ac-servo-motors/em3g-09">EM3G-09ALA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> </td> </tr> <tr> <td> EMG-10APA24 EMG-10APB24 </td> <td>✓</td> </tr> <tr> <td>EMG-10ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMA</a> </td> </tr> <tr> <td>EMG-10ADA24</td> <td>✓</td> </tr> <tr> <td> EMG-10AFD22 EMG-10AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-10AMA</a> </td> </tr> <tr> <td> EMG-10AFD24 EMG-10AFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10ASA22 EMG-10ASB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EMG-10ASA24 EMG-10ASB24</td> <td>✓</td> </tr> <tr> <td> EMG-10ALB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-10AMA</a> </td> </tr> <tr> <td> EMG-10ALB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DPA22 EMG-10DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-10D</a> </td> <td rowspan="8">Three phase AC 380V...440V</td> <td rowspan="8"> Without brake: <a href="/products/ac-servo-motors/em3g-09">EM3G-09DTA224</a> <a href="/products/ac-servo-motors/em3g-09">EM3G-09DLA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> With brake: <a href="/products/ac-servo-motors/em3g-09">EM3G-09DTA244</a> <a href="/products/ac-servo-motors/em3g-09">EM3G-09DLA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> </td> </tr> <tr> <td> EMG-10DPA24 EMG-10DPB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-10DMA</a> </td> </tr> <tr> <td> EMG-10DFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DSA22 EMG-10DSB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EMG-10DSA24 EMG-10DSB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DLB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> <a href="/products/ac-servo-drivers/ed3l">ED3L-10DMA</a> </td> </tr> <tr> <td> EMG-10DLB24 </td> <td>✓</td> </tr> </table> </div>

Motor models

<h2>Modelos de motores disponibles</h2> <div> <table> <tr> <td>Modelo de motor</td> <td>Codificador</td> <td>Freno</td> <td>Servo controlador</td> <td>Tensión de alimentación del variador de entrada</td> <td>Posible reemplazo</td> </tr> <tr> <td> EMG-10APA22 EMG-10APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-10A</a> </td> <td rowspan="10">Fase única o trifásica AC 200V...240V</td> <td rowspan="10"> Sin freno: <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09ATA224</a> <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09ALA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09ATA244</a> <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09ALA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> </td> </tr> <tr> <td> EMG-10APA24 EMG-10APB24 </td> <td>✓</td> </tr> <tr> <td>EMG-10ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMA</a> </td> </tr> <tr> <td>EMG-10ADA24</td> <td>✓</td> </tr> <tr> <td> EMG-10AFD22 EMG-10AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-10AMA</a> </td> </tr> <tr> <td> EMG-10AFD24 EMG-10AFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10ASA22 EMG-10ASB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EMG-10ASA24 EMG-10ASB24</td> <td>✓</td> </tr> <tr> <td> EMG-10ALB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-10AMA</a> </td> </tr> <tr> <td> EMG-10ALB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DPA22 EMG-10DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-10D</a> </td> <td rowspan="8">Trifásica AC 380V...440V</td> <td rowspan="8"> Sin freno: <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09DTA224</a> <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09DLA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09DTA244</a> <a href="/es/products/ac-servo-motors/em3g-09">EM3G-09DLA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> </td> </tr> <tr> <td> EMG-10DPA24 EMG-10DPB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-10DMA</a> </td> </tr> <tr> <td> EMG-10DFB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DSA22 EMG-10DSB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EMG-10DSA24 EMG-10DSB24 </td> <td>✓</td> </tr> <tr> <td> EMG-10DLB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> <a href="/es/products/ac-servo-drivers/ed3l">ED3L-10DMA</a> </td> </tr> <tr> <td> EMG-10DLB24 </td> <td>✓</td> </tr> </table> </div>

Modelos

models

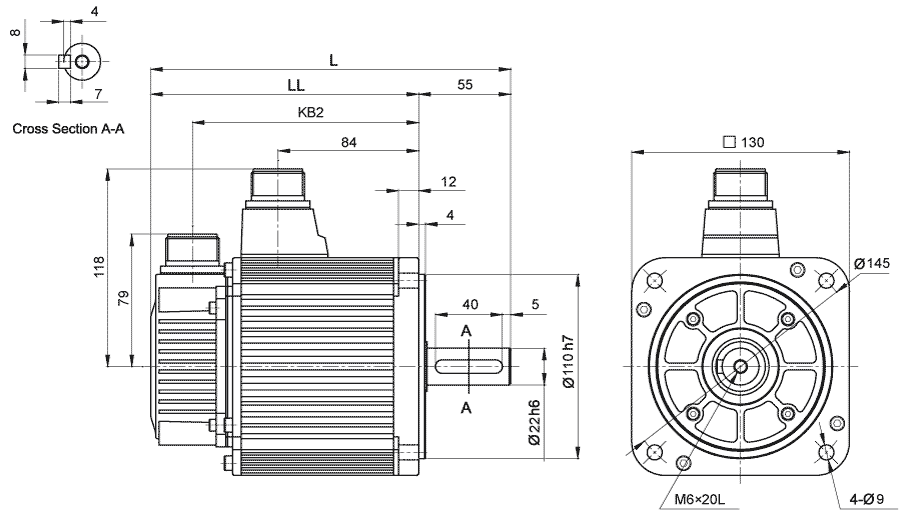

<h2>Dimensions of AC servo motor EMG-10</h2> <picture><img src="/files/products/ac-servo-motors/emg-10/emg-10-dimensions.png" alt="Dimensions of AC servo motor EMG-10"/></picture>

Dimensions

<h2>Dimensiones del servomotor AC EMG-10</h2> <picture><img src="/files/products/ac-servo-motors/emg-10/emg-10-dimensions.png" alt="Dimensiones del servomotor AC EMG-10"/></picture>

Dimensiones

dimensions

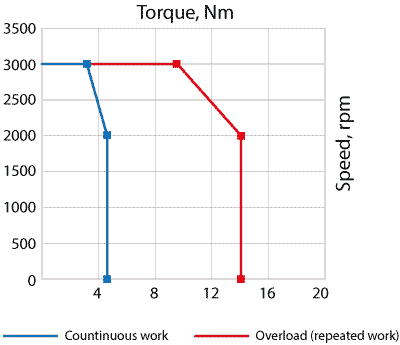

<h2>Speed-torque curves of AC servo motor EMG-10</h2> <picture><img src="/files/products/ac-servo-motors/emg-10/emg-10-chart.png" alt="Speed-torque curves of AC servo motor EMG-10"/></picture>

Speed-torque chart

<h2>Curvas velocidad-par del servomotor AC EMG-10</h2> <picture><img src="/files/products/ac-servo-motors/emg-10/emg-10-chart.png" alt="Curvas velocidad-par del servomotor AC EMG-10"/></picture>

Gráfico

chart

Catalog

Catalogar

сatalog

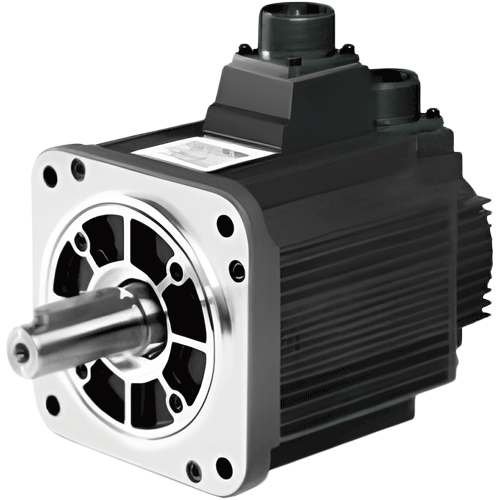

1000 W AC servo motor EMG-10 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer models <a href="/products/ac-servo-motors/em3g-09" style="color: #770027">EM3G-09</a> or <a href="/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a>.

The EMG-10 1000 W AC servo motors are obsolete and are not used in newer systems. It is recommended that you consider the newer EM3G-09 or EM3G-13 as a replacement

Buy EMG-10 - medium inertia AC servo motor (obsolete)

Medium inertia AC servo motor (obsolete)

EMG-10

Los servomotor AC de 1000 W EMG-10 están obsoletos y no se utilizan para sistemas nuevos. Como reemplazo, se recomienda considerar los modelos más nuevos <a href="/es/products/ac-servo-motors/em3g-09" style="color: #770027">EM3G-09</a> o <a href ="/es/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a>.

Los servomotores de CA EMG-10 de 1000 W son obsoletos y no se utilizan en sistemas más nuevos. Se recomienda considerar el EM3G-09 o EM3G-13 más nuevo como reemplazo

Comprar EMG-10 - servomotor AC de media inercia (obsoleto)

Servomotor AC de media inercia (obsoleto)

series

flange

available

construction

voltage

power

rated-speed

max-speed

rated-torque

max-torque

emg-10

Output power

Potencia de salida

Rated speed

Velocidad nominal

Maximum speed

Velocidad máximo

Rated torque

Par nominal

Flange

Brida

Maximum torque

Par máximo

Optional brake voltage

Voltaje de freno opcional

Estun AC servo motors provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW, different feedback systems, brake option is available.

Estun AC servo motors{variable} provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW.

Buy AC servo motors Estun{variable}

AC servo motors Estun

Los servomotores Estun AC proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW, diferentes sistemas de retroalimentación y opción de freno.

Los servomotores Estun AC{variable} proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW.

Medium inertia AC servo motor (obsolete) EMG-10

Technical data

Available motor models

Dimensions of AC servo motor EMG-10

Speed-torque curves of AC servo motor EMG-10

Downloads

Get a quote

Dear guest

Error

Motor model	Encoder	Brake	Servo driver	Input drive supply voltage	Possible replacement
EMG-10APA22 EMG-10APB22	Incremental (2 500 ppr)	-	PRONET-E-10A	Single or three phase AC 200V...240V	Without brake: EM3G-09ATA224 EM3G-09ALA224 EM3G-13ATA224 EM3G-13ALA224 With brake: EM3G-09ATA244 EM3G-09ALA244 EM3G-13ATA244 EM3G-13ALA244
EMG-10APA24 EMG-10APB24		✓
EMG-10ADA22	Incremental 17-bit (131 072 ppr)	-	PRONET-10AMA
EMG-10ADA24		✓
EMG-10AFD22 EMG-10AFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-10AMG ED3L-10AMA
EMG-10AFD24 EMG-10AFB24		✓
EMG-10ASA22 EMG-10ASB22	Absolute 17-bit (131 072 ppr)	-	PRONET-10AMA PRONET-10AMG
EMG-10ASA24 EMG-10ASB24		✓
EMG-10ALB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-10AMG ED3L-10AMA
EMG-10ALB24		✓
EMG-10DPA22 EMG-10DPB22	Incremental (2 500 ppr)	-	PRONET-E-10D	Three phase AC 380V...440V	Without brake: EM3G-09DTA224 EM3G-09DLA224 EM3G-13DTA224 EM3G-13DLA224 With brake: EM3G-09DTA244 EM3G-09DLA244 EM3G-13DTA244 EM3G-13DLA244
EMG-10DPA24 EMG-10DPB24		✓
EMG-10DFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-10DMG ED3L-10DMA
EMG-10DFB24		✓
EMG-10DSA22 EMG-10DSB22	Absolute 17-bit (131 072 ppr)	-	PRONET-10DMA PRONET-10DMG
EMG-10DSA24 EMG-10DSB24		✓
EMG-10DLB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-10DMG ED3L-10DMA
EMG-10DLB24		✓
