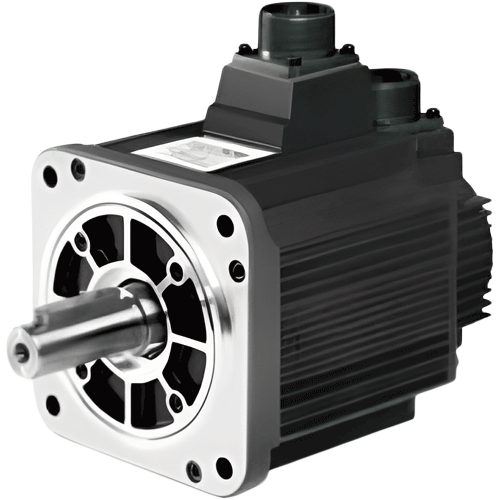

Medium inertia AC servo motor (obsolete) EMG-20
Output power
2000 W
Rated speed
2000 rpm
Maximum speed
3000 rpm
Rated torque
9.55 Nm
Flange
130 mm
2000 W AC servo motor EMG-20 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer model EM3G-18.
Technical data
Rated torque
9.55 Nm
Maximum torque
28.7 Nm
Output power
2000 W
Optional brake voltage
24 VDC
Rated torque
9.55 Nm
Maximum torque
28.7 Nm
Output power
2000 W
Optional brake voltage
24 VDC
Available motor models
| Motor model | Encoder | Brake | Servo driver | Input drive supply voltage | Possible replacement |
| | Incremental (2 500 ppr) | - | | Three phase AC 200V...240V | Without brake: With brake: |
| | ✓ | ||||
| Incremental 17-bit (131 072 ppr) | - | | |||
| ✓ | |||||
| | Incremental 20-bit (1 048 576 ppr) | - | | ||
| | ✓ | ||||
| | Absolute 17-bit (131 072 ppr) | - | | ||
| | ✓ | ||||
| | Absolute 23-bit (8 388 608 ppr) | - | | ||
| | ✓ | ||||
| | Incremental (2 500 ppr) | - | | Three phase AC 380V...440V | Without brake: With brake: |
| | ✓ | ||||
| | Incremental 20-bit (1 048 576 ppr) | - | | ||
| | ✓ | ||||
| Absolute 17-bit (131 072 ppr) | - | | |||
| | ✓ | ||||
| | Absolute 23-bit (8 388 608 ppr) | - | | ||
| | ✓ |

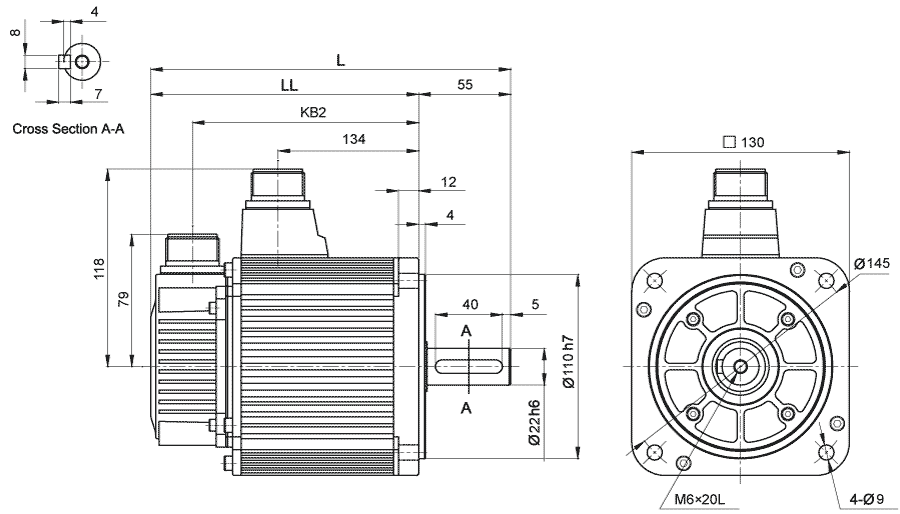

Dimensions of AC servo motor EMG-20

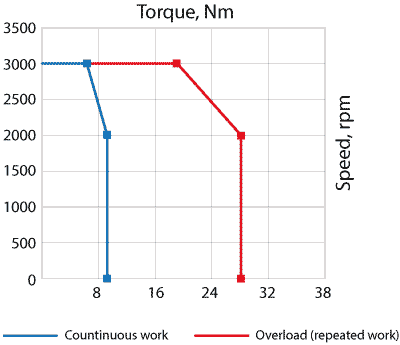

Speed-torque curves of AC servo motor EMG-20
