<h2>Available motor models</h2> <div> <table> <tr> <td>Motor model</td> <td>Encoder</td> <td>Brake</td> <td>Servo driver</td> <td>Input drive supply voltage</td> <td>Possible replacement</td> </tr> <tr> <td> EML-10APA22 EML-10APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-10A</a> </td> <td rowspan="10">Single or three phase AC 200V...240V</td> <td rowspan="10"> Without brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ATA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ALA224</a> With brake: <a href="/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ATA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18ALA244</a> </td> </tr> <tr> <td> EML-10APA24 EML-10APB24 </td> <td>✓</td> </tr> <tr> <td>EML-10ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMA</a> </td> </tr> <tr> <td>EML-10ADA24</td> <td>✓</td> </tr> <tr> <td> EML-10AFD22 EML-10AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10AFD24 EML-10AFB24 </td> <td>✓</td> </tr> <tr> <td> EML-10ASA22 EML-10ASB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10ASA24 EML-10ASB24</td> <td>✓</td> </tr> <tr> <td> EML-10ALB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10ALB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DPA22 EML-10DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-E-10D</a> </td> <td rowspan="8">Three phase AC 380V...440V</td> <td rowspan="8"> Without brake: <a href="/products/ac-servo-motors/em3l-10">EM3L-10DTA224</a> <a href="/products/ac-servo-motors/em3l-10">EM3L-10DLA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DTA224</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DLA224</a> With brake: <a href="/products/ac-servo-motors/em3l-10">EM3L-10DTA244</a> <a href="/products/ac-servo-motors/em3l-10">EM3L-10DLA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DTA244</a> <a href="/products/ac-servo-motors/em3g-18">EM3G-18DLA244</a> </td> </tr> <tr> <td> EML-10DPA24 EML-10DPB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DFB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DSA22 EML-10DSB22 </td> <td rowspan="2">Absolute 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMA</a> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DSA24 EML-10DSB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DLB22 </td> <td rowspan="2">Absolute 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DLB24 </td> <td>✓</td> </tr> </table> </div>

Motor models

<h2>Modelos de motores disponibles</h2> <div> <table> <tr> <td>Modelo de motor</td> <td>Codificador</td> <td>Freno</td> <td>Servo controlador</td> <td>Tensión de alimentación del variador de entrada</td> <td>Posible reemplazo</td> </tr> <tr> <td> EML-10APA22 EML-10APB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-10A</a> </td> <td rowspan="10">Fase única o trifásica AC 200V...240V</td> <td rowspan="10"> Sin freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ATA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ALA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ATA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13ALA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ATA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18ALA244</a> </td> </tr> <tr> <td> EML-10APA24 EML-10APB24 </td> <td>✓</td> </tr> <tr> <td>EML-10ADA22</td> <td rowspan="2">Incremental 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMA</a> </td> </tr> <tr> <td>EML-10ADA24</td> <td>✓</td> </tr> <tr> <td> EML-10AFD22 EML-10AFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10AFD24 EML-10AFB24 </td> <td>✓</td> </tr> <tr> <td> EML-10ASA22 EML-10ASB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10ASA24 EML-10ASB24</td> <td>✓</td> </tr> <tr> <td> EML-10ALB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10AMG</a> </td> </tr> <tr> <td> EML-10ALB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DPA22 EML-10DPB22 </td> <td rowspan="2">Incremental (2 500 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-E-10D</a> </td> <td rowspan="8">Trifásica AC 380V...440V</td> <td rowspan="8"> Sin freno: <a href="/es/products/ac-servo-motors/em3l-10">EM3L-10DTA224</a> <a href="/es/products/ac-servo-motors/em3l-10">EM3L-10DLA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA224</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DTA224</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DLA224</a> Con freno: <a href="/es/products/ac-servo-motors/em3l-10">EM3L-10DTA244</a> <a href="/es/products/ac-servo-motors/em3l-10">EM3L-10DLA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DTA244</a> <a href="/es/products/ac-servo-motors/em3g-13">EM3G-13DLA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DTA244</a> <a href="/es/products/ac-servo-motors/em3g-18">EM3G-18DLA244</a> </td> </tr> <tr> <td> EML-10DPA24 EML-10DPB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DFB22 </td> <td rowspan="2">Incremental 20-bit (1 048 576 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DFB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DSA22 EML-10DSB22 </td> <td rowspan="2">Absoluto 17-bit (131 072 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMA</a> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DSA24 EML-10DSB24 </td> <td>✓</td> </tr> <tr> <td> EML-10DLB22 </td> <td rowspan="2">Absoluto 23-bit (8 388 608 ppr)</td> <td>-</td> <td rowspan="2"> <a href="/es/products/ac-servo-drivers/pronet">PRONET-10DMG</a> </td> </tr> <tr> <td> EML-10DLB24 </td> <td>✓</td> </tr> </table> </div>

Modelos

models

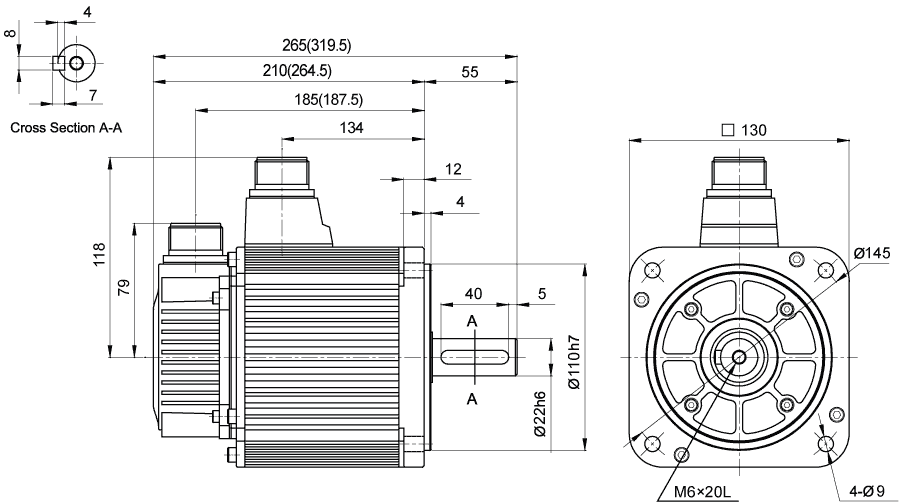

<h2>Dimensions of AC servo motor EML-10</h2> <picture><img src="/files/products/ac-servo-motors/eml-10/eml-10-dimensions.png" alt="Dimensions of AC servo motor EML-10"/></picture>

Dimensions

<h2>Dimensiones del servomotor AC EML-10</h2> <picture><img src="/files/products/ac-servo-motors/eml-10/eml-10-dimensions.png" alt="Dimensiones del servomotor AC EML-10"/></picture>

Dimensiones

dimensions

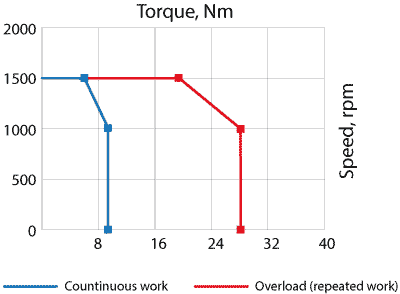

<h2>Speed-torque curves of AC servo motor EML-10</h2> <picture><img src="/files/products/ac-servo-motors/eml-10/eml-10-chart.png" alt="Speed-torque curves of AC servo motor EML-10"/></picture>

Speed-torque chart

<h2>Curvas velocidad-par del servomotor AC EML-10</h2> <picture><img src="/files/products/ac-servo-motors/eml-10/eml-10-chart.png" alt="Curvas velocidad-par del servomotor AC EML-10"/></picture>

Gráfico

chart

Catalog

Catalogar

сatalog

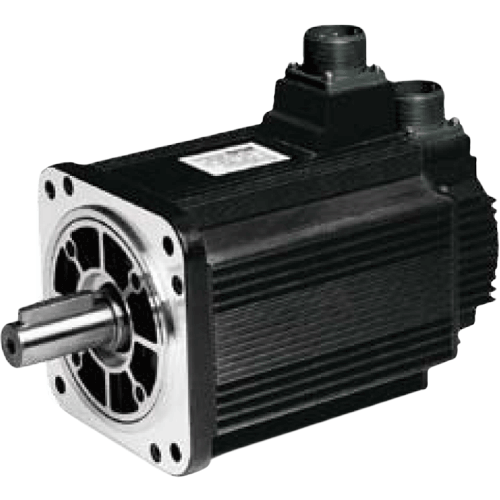

High-torque and low speed 1000 W AC servo motors EML-10 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer high torque and high inertia model <a href="/products/ac-servo-motors/em3l-10" style="color: #770027">EM3L-10</a> or standard series servo motor <a href="/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a>.

High-torque and low speed 1000 W AC servo motors EML-10 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer models EM3L-10 or EM3G-13

Buy EML-10 - low speed high inertia AC servo motors (obsolete)

Low speed high inertia AC servo motors (obsolete)

EML-10

Los servomotores AC de 1000 W de alto par y baja velocidad EML-10 están obsoletos y no se utilizan para sistemas nuevos. Como reemplazo, se recomienda considerar el modelo más nuevo de alto par y alta inercia <a href="/es/products/ac-servo-motors/em3l-10" style="color: #770027">EM3L-10</a > o servomotor de serie estándar <a href="/es/products/ac-servo-motors/em3g-13" style="color: #770027">EM3G-13</a>.

Los servomotores de CA de 1000 W de alto par y baja velocidad EML-10 están obsoletos y no se utilizan para sistemas nuevos. Como reemplazo, se recomienda considerar los modelos más nuevos EM3L-10 o EM3G-13

Comprar EML-10 - servomotor AC de baja velocidad y alta inercia (obsoleto)

Servomotor AC de baja velocidad y alta inercia (obsoleto)

series

flange

available

construction

voltage

power

rated-speed

max-speed

rated-torque

max-torque

eml-10

Output power

Potencia de salida

Rated speed

Velocidad nominal

Maximum speed

Velocidad máximo

Rated torque

Par nominal

Flange

Brida

Maximum torque

Par máximo

Optional brake voltage

Voltaje de freno opcional

Estun AC servo motors provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW, different feedback systems, brake option is available.

Estun AC servo motors{variable} provide great performance and high resolution, smooth and precise motion. A wide power range from 50 W up to 22 kW.

Buy AC servo motors Estun{variable}

AC servo motors Estun

Los servomotores Estun AC proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW, diferentes sistemas de retroalimentación y opción de freno.

Los servomotores Estun AC{variable} proporcionan un gran rendimiento y un movimiento de alta resolución, suave y preciso. Está disponible un amplio rango de potencia desde 50 W hasta 22 kW.

Low speed high inertia AC servo motors (obsolete) EML-10

Technical data

Available motor models

Dimensions of AC servo motor EML-10

Speed-torque curves of AC servo motor EML-10

Downloads

Get a quote

Dear guest

Error

Motor model	Encoder	Brake	Servo driver	Input drive supply voltage	Possible replacement
EML-10APA22 EML-10APB22	Incremental (2 500 ppr)	-	PRONET-E-10A	Single or three phase AC 200V...240V	Without brake: EM3G-13ATA224 EM3G-13ALA224 EM3G-18ATA224 EM3G-18ALA224 With brake: EM3G-13ATA244 EM3G-13ALA244 EM3G-18ATA244 EM3G-18ALA244
EML-10APA24 EML-10APB24		✓
EML-10ADA22	Incremental 17-bit (131 072 ppr)	-	PRONET-10AMA
EML-10ADA24		✓
EML-10AFD22 EML-10AFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-10AMG
EML-10AFD24 EML-10AFB24		✓
EML-10ASA22 EML-10ASB22	Absolute 17-bit (131 072 ppr)	-	PRONET-10AMA PRONET-10AMG
EML-10ASA24 EML-10ASB24		✓
EML-10ALB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-10AMG
EML-10ALB24		✓
EML-10DPA22 EML-10DPB22	Incremental (2 500 ppr)	-	PRONET-E-10D	Three phase AC 380V...440V	Without brake: EM3L-10DTA224 EM3L-10DLA224 EM3G-13DTA224 EM3G-13DLA224 EM3G-18DTA224 EM3G-18DLA224 With brake: EM3L-10DTA244 EM3L-10DLA244 EM3G-13DTA244 EM3G-13DLA244 EM3G-18DTA244 EM3G-18DLA244
EML-10DPA24 EML-10DPB24		✓
EML-10DFB22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-10DMG
EML-10DFB24		✓
EML-10DSA22 EML-10DSB22	Absolute 17-bit (131 072 ppr)	-	PRONET-10DMA PRONET-10DMG
EML-10DSA24 EML-10DSB24		✓
EML-10DLB22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-10DMG
EML-10DLB24		✓
