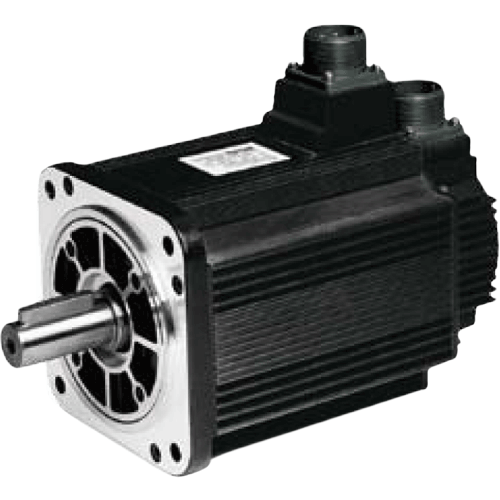

Low speed high inertia AC servo motors (obsolete) EML-20

Output power

2000 W

Rated speed

1000 rpm

Maximum speed

1500 rpm

Rated torque

19.1 Nm

Flange

180 mm

High-torque and low speed 2000 W AC servo motors EML-20 are obsolete and not used for new systems. As a replacement, it is recommended to consider the newer high torque and high inertia model EM3L-20 or standard series servo motor EM3G-29.

Technical data

Rated torque

19.1 Nm

Maximum torque

57.3 Nm

Output power

2000 W

Optional brake voltage

24 VDC

Rated torque

19.1 Nm

Maximum torque

57.3 Nm

Output power

2000 W

Optional brake voltage

24 VDC

Available motor models

Motor model	Encoder	Brake	Servo driver	Input drive supply voltage	Possible replacement
EML-20APA22	Incremental (2 500 ppr)	-	PRONET-E-20A	Three phase AC 200V...240V	-
EML-20APA24		✓
EML-20ADA22	Incremental 17-bit (131 072 ppr)	-	PRONET-20AMA
EML-20ADA24		✓
EML-20AFD22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-20AMG
EML-20AFD24		✓
EML-20ASA22	Absolute 17-bit (131 072 ppr)	-	PRONET-20AMA PRONET-20AMG
EML-20ASA24		✓
EML-20ALA22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-20AMG
EML-20ALA24		✓
EML-20DPA22	Incremental (2 500 ppr)	-	PRONET-E-20D	Three phase AC 380V...440V	Without brake: EM3L-20DTA224 EM3L-20DLA224 EM3G-29DTA224 EM3G-29DLA224 With brake: EM3L-20DTA244 EM3L-20DLA244 EM3G-29DTA244 EM3G-29DLA244
EML-20DPA24		✓
EML-20DFA22	Incremental 20-bit (1 048 576 ppr)	-	PRONET-20DMG
EML-20DFA24		✓
EML-20DSA22	Absolute 17-bit (131 072 ppr)	-	PRONET-20DMA PRONET-20DMG
EML-20DSA24		✓
EML-20DLA22	Absolute 23-bit (8 388 608 ppr)	-	PRONET-20DMG
EML-20DLA24		✓

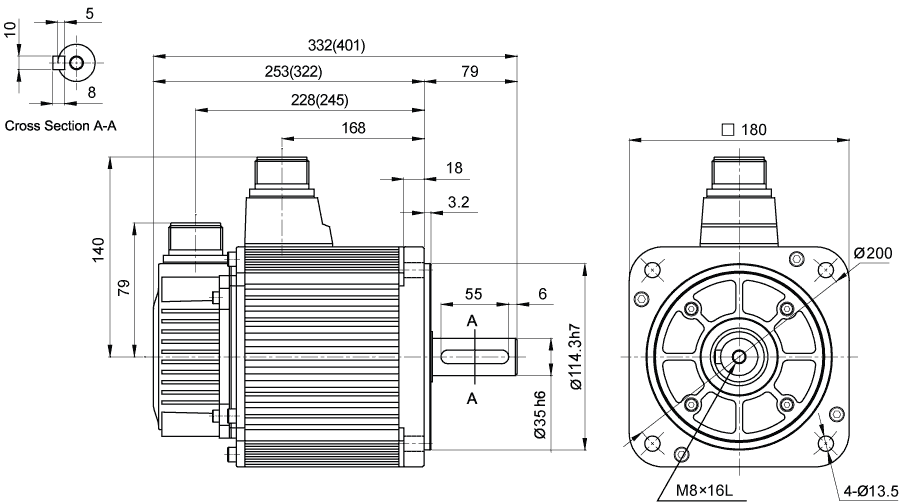

Dimensions of AC servo motor EML-20

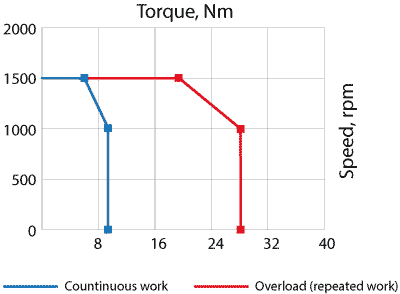

Speed-torque curves of AC servo motor EML-20
