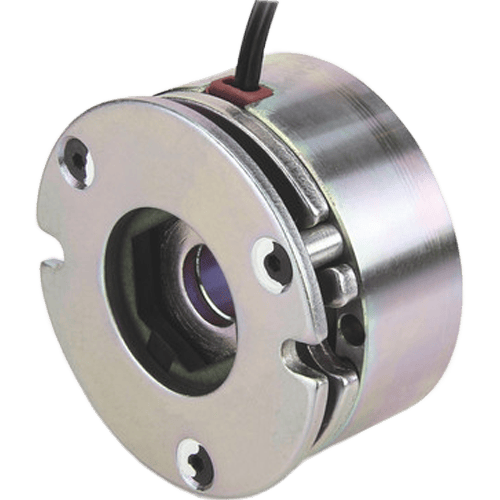

Motor brake BRAKE-BWA-0.35-5
Operating voltage
24 VDC
Shaft diameter
5 mm
Rated power
5.9 W
Holding torque
35 Ncm
BRAKE-BWA-0.35-5 is an electrically operated spring-loaded brake with an extremely compact design for use as a static holding brake. The brake is intended to be installed directly to motors with a shaft diameter of 5 mm. For releasing, brakes require a voltage of 24 VDC. The brakes can only be ordered with a motor.
Technical data
Hub
borehole ø5 H8 with grub screw M3x3
Switch-on time
100 ms
Switch-off time
10 ms
Moment of inertia
10 kg∙mm²
Size
35 mm
Fastening
with 3 screws M3
Connection
leads L=300 mm
Weight
0.15 kg
Hub
borehole ø5 H8 with grub screw M3x3
Switch-on time
100 ms
Switch-off time
10 ms
Moment of inertia
10 kg∙mm²
Size
35 mm
Fastening
with 3 screws M3
Connection
leads L=300 mm
Weight
0.15 kg

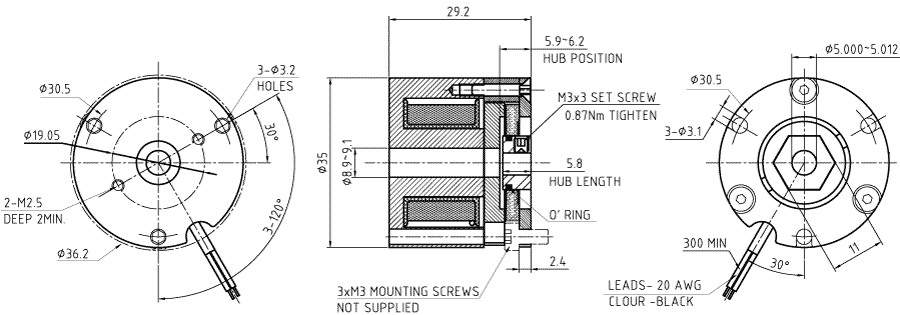

Dimensions of motor brake BRAKE-BWA-0.35-5
Description of motor brake BRAKE-BWA-0.35-5
BRAKE-BWA is an electrically operated spring-loaded brake with an extremely compact design for use as a static holding brake. We offer two brake sizes to be installed directly to motors with a shaft diameter of 5 or 6.35 mm: BRAKE-BWA-0.35-5 and BRAKE-BWA-1.5-6.35
The holding brakes by Nanotec have a compact flange design and asbestos-free friction linings. They are wear resistant and easy to install thanks to their pre-adjusted air gap. For releasing, brakes require a voltage of 24 VDC. Integrated brakes with a connector plug are also suitable for operation in harsh environmental conditions (IP54) and allow quick and error-free wiring.
The brakes can be mounted directly to a motor shaft. If the motor has a long B shaft, an encoder can also be mounted directly on the brake. As the brake comes with threaded holes, no additional adapter plate is necessary. The model is available in two lengths.
The brakes can only be ordered with a motor.
