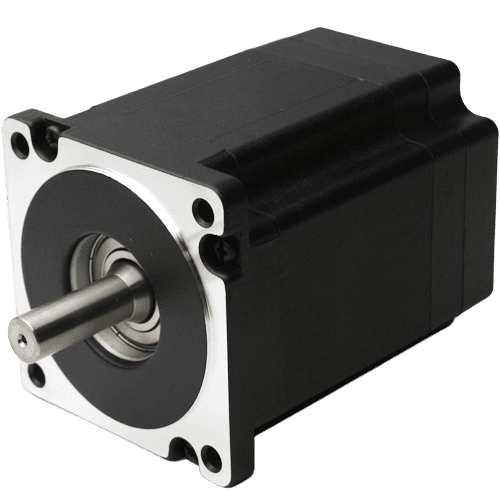

Brushless DC motor DB87L01-S
Size
NEMA 34
Flange
86 mm
Rated power
660 W
Voltage
48 V
Rated speed
3000 rpm
Brushless DC motor with high output power and long service life. By mounting an encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques high-performance planetary gearboxes can be mounted.
Technical data
Rated torque
21.41 kgf∙cm
Peak torque
64.24 kgf∙cm
Rated current
17.95 A
Peak current
53.85 A
Rotor inertia
2400 gcm²
Torque constant
11.7 N∙cm/A
Line to line inductance
0.1 mH
Line to line resistance
0.07 Ohm
Weight
4 kg
Length «A»
140 mm
Rated torque
21.41 kgf∙cm
Peak torque
64.24 kgf∙cm
Rated current
17.95 A
Peak current
53.85 A
Rotor inertia
2400 gcm²
Torque constant
11.7 N∙cm/A
Line to line inductance
0.1 mH
Line to line resistance
0.07 Ohm
Weight
4 kg
Length «A»
140 mm
Dimensions of brushless DC motor DB87L01-S
