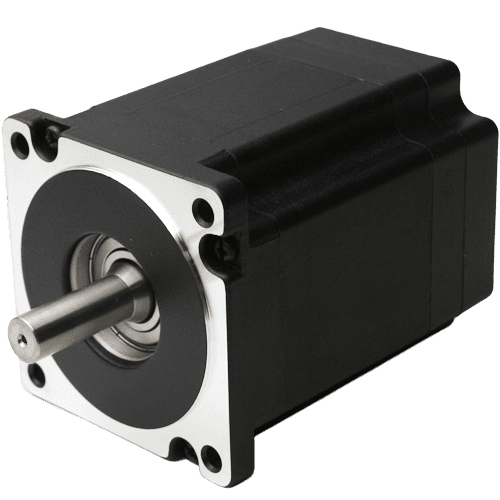

Brushless DC motor DB87M01-S
Size
NEMA 34
Flange
86 mm
Rated power
440 W
Voltage
48 V
Rated speed
3000 rpm
Brushless DC motor with high output power and long service life. By mounting an encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques high-performance planetary gearboxes can be mounted.
Technical data
Rated torque
14.28 kgf∙cm
Peak torque
42.84 kgf∙cm
Rated current
10.77 A
Peak current
32.31 A
Rotor inertia
1600 gcm²
Torque constant
13 N∙cm/A
Line to line inductance
0.48 mH
Line to line resistance
0.16 Ohm
Weight
2.6 kg
Length «A»
113 mm
Rated torque
14.28 kgf∙cm
Peak torque
42.84 kgf∙cm
Rated current
10.77 A
Peak current
32.31 A
Rotor inertia
1600 gcm²
Torque constant
13 N∙cm/A
Line to line inductance
0.48 mH
Line to line resistance
0.16 Ohm
Weight
2.6 kg
Length «A»
113 mm

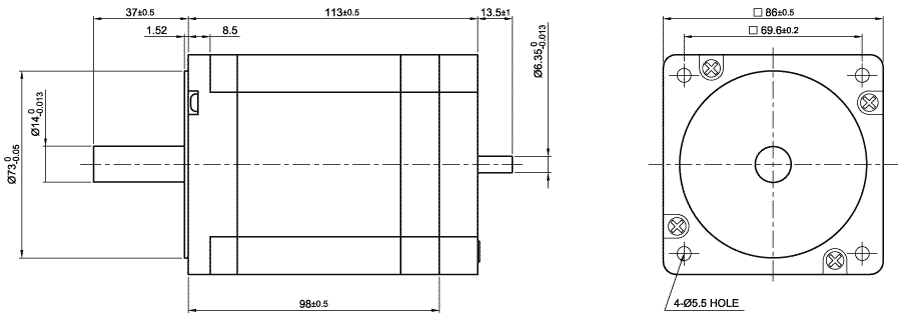

Dimensions of brushless DC motor DB87M01-S
