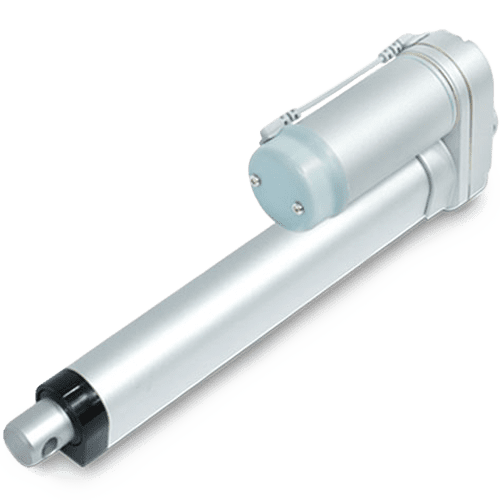

Linear actuator LD3-12-05-K3
Voltage
12 VDC
Push/pull force
150 N
Rated speed
36.5 mm/s
Stroke
50 – 300 mm
Hall sensors
optional
The LD3 linear actuators with gear ratio 1:5 feature a compact design, ideal for applications where there is limited space available for the actuator. High motion speed is highly appreciated in highly dynamic systems. Optional built-in Hall sensors make it possible to position and stabilize the speed of the actuator.
Technical data
Rated current
3.2 A
No load current
1.2 A
Push/pull force (max)
150 N
Self-locking force (max)
2500 N
Rated (full load) speed
36.5 mm/s
No load speed
43.9 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:5
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
2.27 pulses/mm
Operation temperature
-26°C ... +65°C
Rated current
3.2 A
No load current
1.2 A
Push/pull force (max)
150 N
Self-locking force (max)
2500 N
Rated (full load) speed
36.5 mm/s
No load speed
43.9 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:5
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
2.27 pulses/mm
Operation temperature
-26°C ... +65°C
Dimensions of linear actuator LD3-12-05-K3
| Stroke, S | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|
| A, mm | 158 | 209 | 260 | 311 | 362 | 413 |
| B, mm | 208 | 309 | 410 | 511 | 612 | 713 |

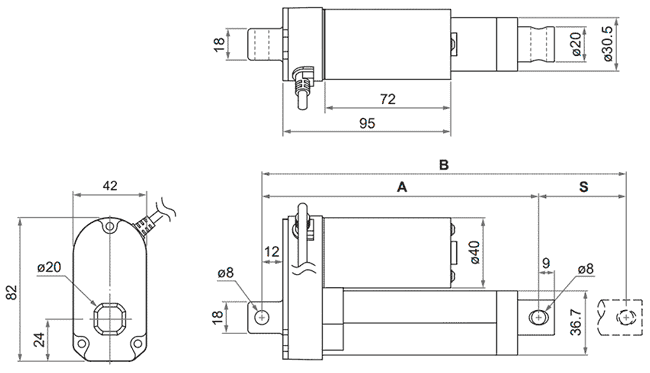

Linear actuator without Hall sensors

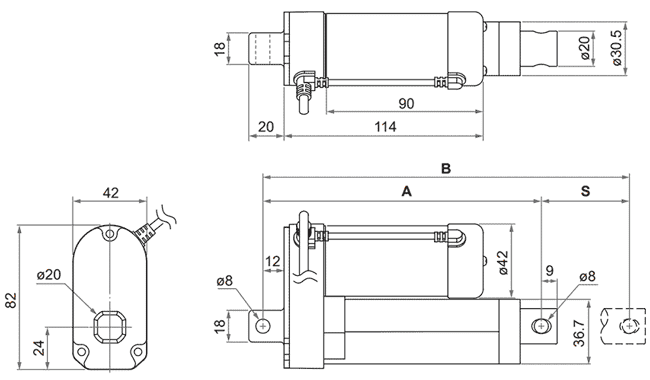

Linear actuator with 2 Hall sensors
Load diagrams of linear actuator LD3-12-05-K3

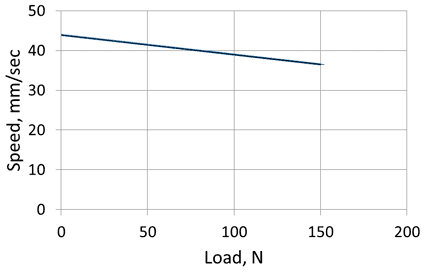

Speed/load diagram of linear actuator

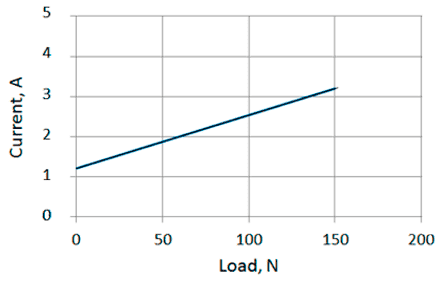

Current/load diagram of linear actuator
