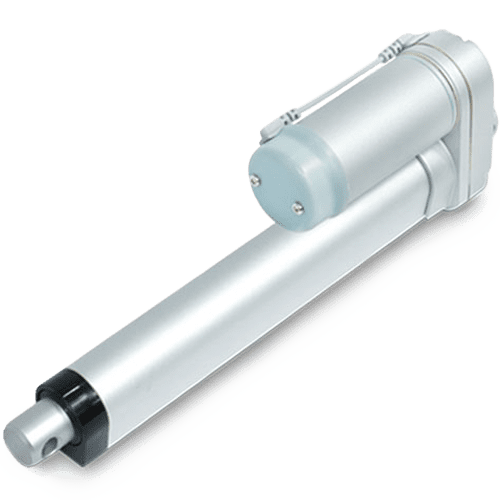

Linear actuator LD3-12-10-K3

Voltage

12 VDC

Push/pull force

250 N

Rated speed

23.5 mm/s

Stroke

50 – 300 mm

Hall sensors

optional

LD3-12-10-K3

The linear actuators LD3 series with gear ratio 1:10 have a compact design, which is suitable for various applications that require limited installation space, such as window or gate opener, adjustable seat tilting and medical devices. The actuator can be ordered with built-in Hall sensors.

Technical data

Rated current

3.2 A

No load current

1.2 A

Push/pull force (max)

250 N

Self-locking force (max)

2500 N

Rated (full load) speed

23.5 mm/s

No load speed

27.6 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:10

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

3.67 pulses/mm

Operation temperature

-26°C ... +65°C

Rated current

3.2 A

No load current

1.2 A

Push/pull force (max)

250 N

Self-locking force (max)

2500 N

Rated (full load) speed

23.5 mm/s

No load speed

27.6 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:10

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

3.67 pulses/mm

Operation temperature

-26°C ... +65°C

Dimensions of linear actuator LD3-12-10-K3

Stroke, S 50 100 150 200 250 300
A, mm 158 209 260 311 362 413
B, mm 208 309 410 511 612 713

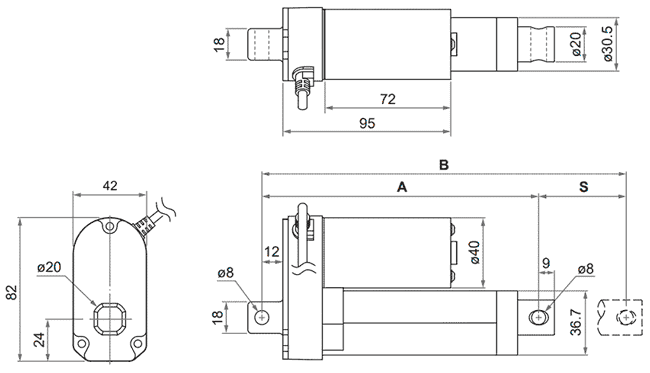

Linear actuator without Hall sensors

Linear actuator without Hall sensors

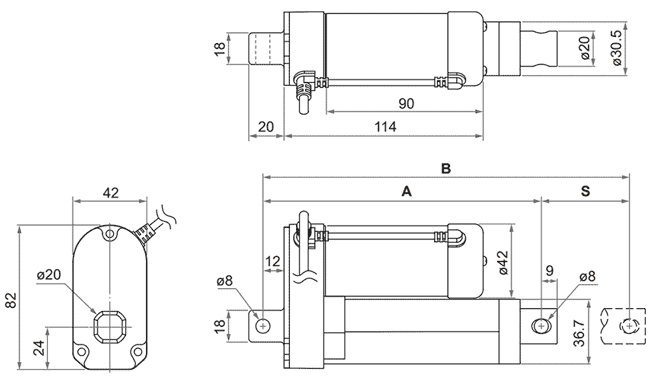

Linear actuator with 2 Hall sensors

Linear actuator with 2 Hall sensors

Load diagrams of linear actuator LD3-12-10-K3

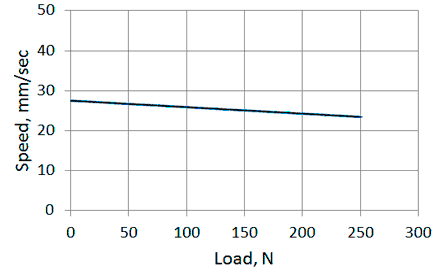

Speed/load diagram of linear actuator

Speed/load diagram of linear actuator

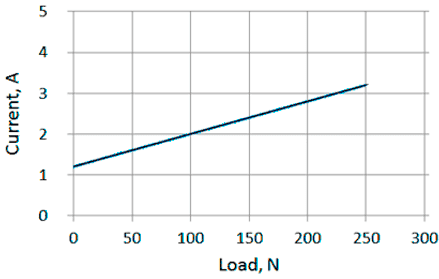

Current/load diagram of linear actuator

Current/load diagram of linear actuator
