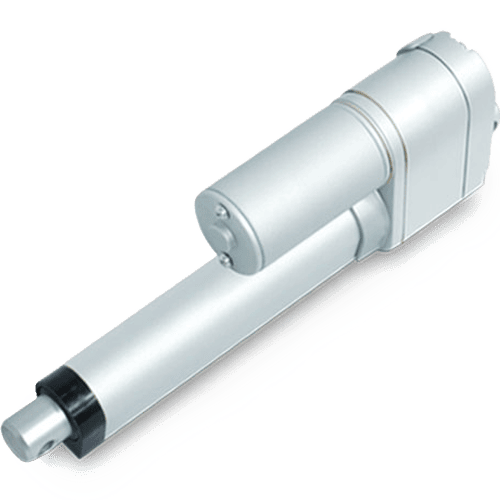

Linear actuator LD3-24-10-K3
Voltage
24 VDC
Push/pull force
250 N
Rated speed
23.5 mm/s
Stroke
50 – 300 mm
Hall sensors
optional
The linear actuators LD3 series with gear ratio 1:10 have a compact design, which is suitable for various applications that require limited installation space, such as window or gate opener, adjustable seat tilting and medical devices. The actuator can be ordered with built-in Hall sensors.
Technical data
Rated current
1.6 A
No load current
0.6 A
Push/pull force (max)
250 N
Self-locking force (max)
2500 N
Rated (full load) speed
23.5 mm/s
No load speed
27.6 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:10
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
3.67 pulses/mm
Operation temperature
-26°C ... +65°C
Rated current
1.6 A
No load current
0.6 A
Push/pull force (max)
250 N
Self-locking force (max)
2500 N
Rated (full load) speed
23.5 mm/s
No load speed
27.6 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:10
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
3.67 pulses/mm
Operation temperature
-26°C ... +65°C
Dimensions of linear actuator LD3-24-10-K3
| Stroke, S | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|
| A, mm | 158 | 209 | 260 | 311 | 362 | 413 |
| B, mm | 208 | 309 | 410 | 511 | 612 | 713 |

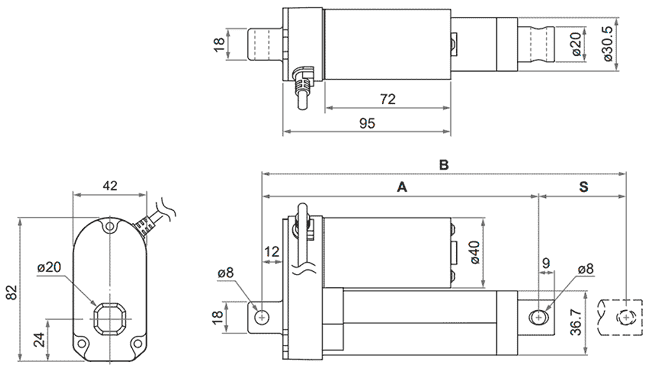

Linear actuator without Hall sensors

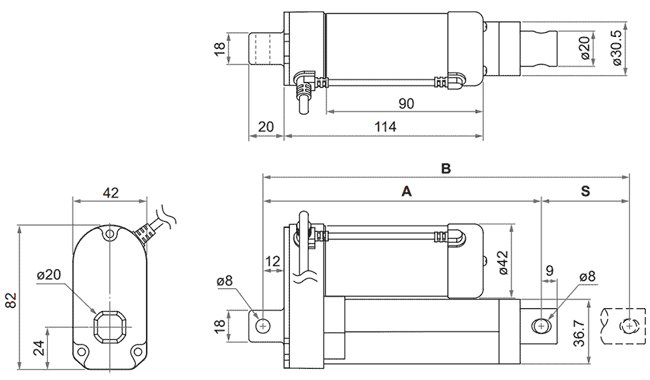

Linear actuator with 2 Hall sensors
Load diagrams of linear actuator LD3-24-10-K3

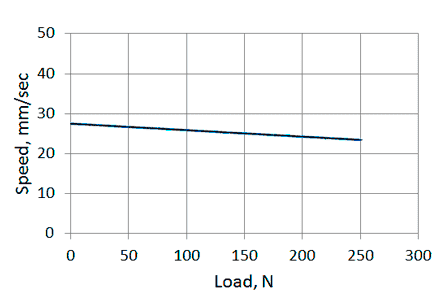

Speed/load diagram of linear actuator

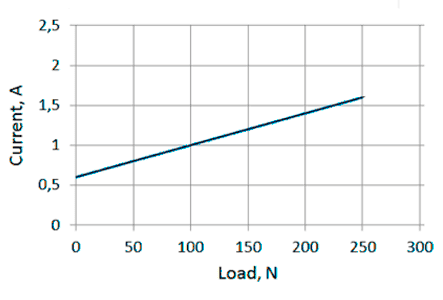

Current/load diagram of linear actuator
