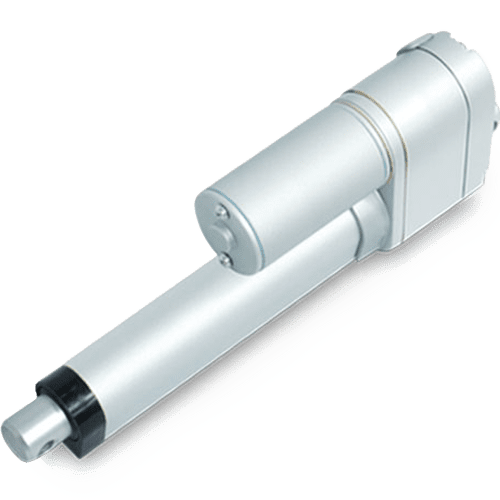

Linear actuator LD3-24-20-K3

Voltage

24 VDC

Push/pull force

500 N

Rated speed

12.3 mm/s

Stroke

50 – 300 mm

Hall sensors

optional

LD3-24-20-K3

The linear actuators are available with voltage 24 VDC. Gear ratio 1:20 provides high force and sufficient stroke motion speed. The actuator can be installed into furniture, medical equipment, industrial applications. Built-in Hall sensors are available on demand.

Technical data

Rated current

1.6 A

No load current

0.6 A

Push/pull force (max)

500 N

Self-locking force (max)

2500 N

Rated (full load) speed

12.3 mm/s

No load speed

14.6 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:20

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

6.86 pulses/mm

Operation temperature

-26°C ... +65°C

Rated current

1.6 A

No load current

0.6 A

Push/pull force (max)

500 N

Self-locking force (max)

2500 N

Rated (full load) speed

12.3 mm/s

No load speed

14.6 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:20

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

6.86 pulses/mm

Operation temperature

-26°C ... +65°C

Dimensions of linear actuator LD3-24-20-K3

Stroke, S 50 100 150 200 250 300
A, mm 158 209 260 311 362 413
B, mm 208 309 410 511 612 713

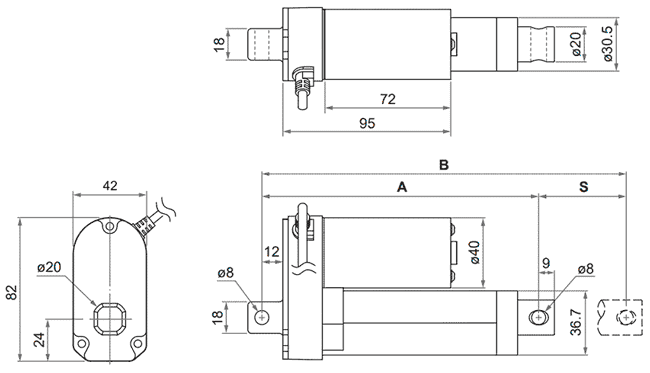

Linear actuator without Hall sensors

Linear actuator without Hall sensors

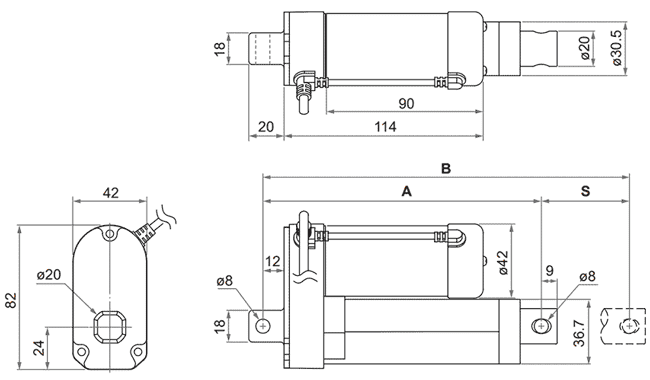

Linear actuator with 2 Hall sensors

Linear actuator with 2 Hall sensors

Load diagrams of linear actuator LD3-24-20-K3

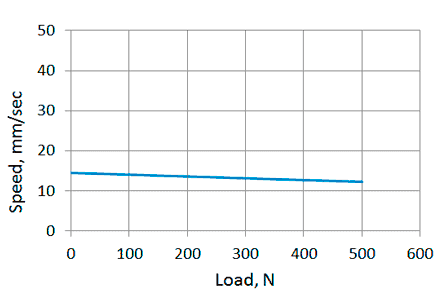

Speed/load diagram of linear actuator

Speed/load diagram of linear actuator

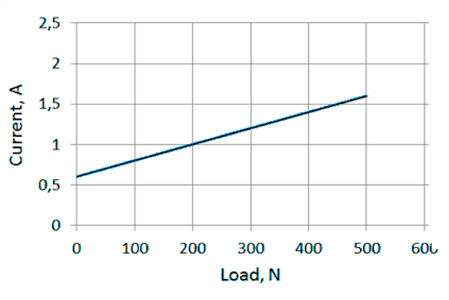

Current/load diagram of linear actuator

Current/load diagram of linear actuator
