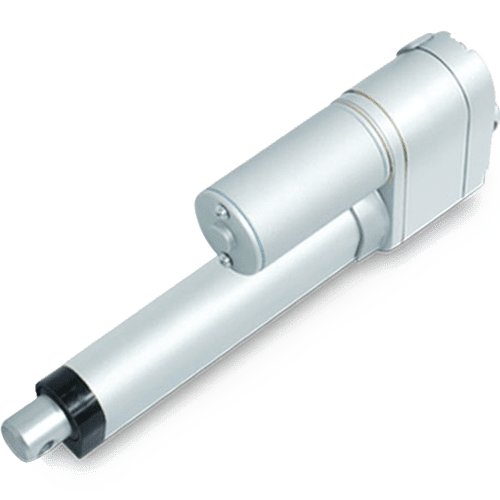

Linear actuator LD3-24-30-K3

Voltage

24 VDC

Push/pull force

800 N

Rated speed

7.5 mm/s

Stroke

50 – 300 mm

Hall sensors

optional

LD3-24-30-K3

Powerful linear actuators with gear ratio 1:30 are used as actuation mechanism in systems with high force requirements. The actuator can be ordered with built-in Hall sensors.

Technical data

Rated current

1.6 A

No load current

0.6 A

Push/pull force (max)

800 N

Self-locking force (max)

2500 N

Rated (full load) speed

7.5 mm/s

No load speed

9.5 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:30

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

10.57 pulses/mm

Operation temperature

-26°C ... +65°C

Rated current

1.6 A

No load current

0.6 A

Push/pull force (max)

800 N

Self-locking force (max)

2500 N

Rated (full load) speed

7.5 mm/s

No load speed

9.5 mm/s

Available stroke length

50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm

Protection class

IP54

Noise level

≤70 dB

Gear ratio

1:30

Duty Cycle

25%

Positioning signal feedback

2 Hall sensors (optional)

Hall sensors resolution

10.57 pulses/mm

Operation temperature

-26°C ... +65°C

Dimensions of linear actuator LD3-24-30-K3

Stroke, S 50 100 150 200 250 300
A, mm 158 209 260 311 362 413
B, mm 208 309 410 511 612 713

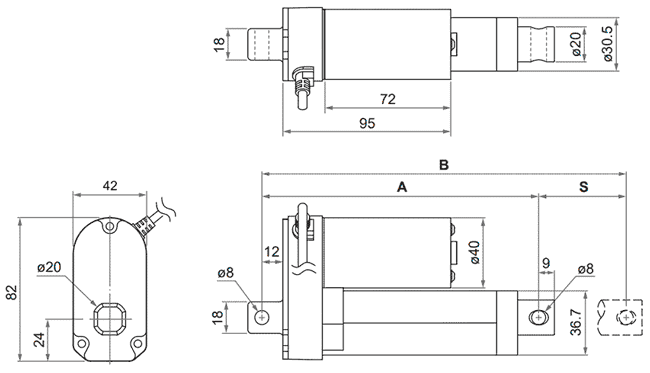

Linear actuator without Hall sensors

Linear actuator without Hall sensors

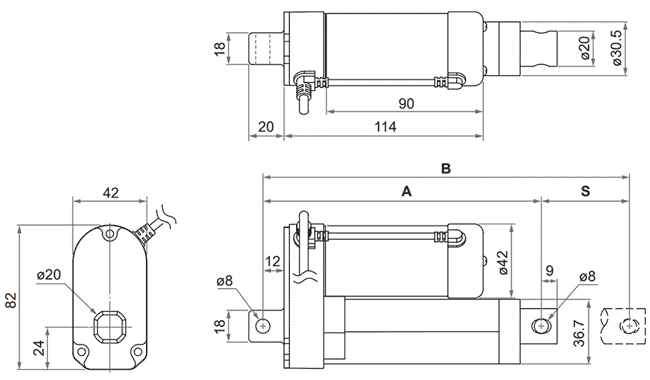

Linear actuator with 2 Hall sensors

Linear actuator with 2 Hall sensors

Load diagrams of linear actuator LD3-24-30-K3

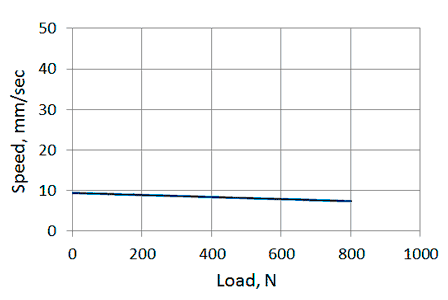

Speed/load diagram of linear actuator

Speed/load diagram of linear actuator

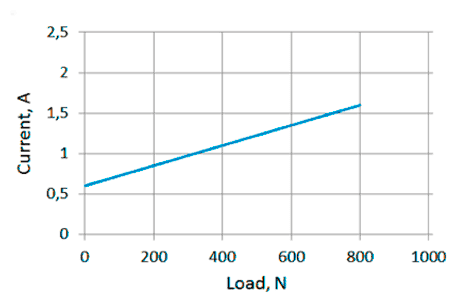

Current/load diagram of linear actuator

Current/load diagram of linear actuator
