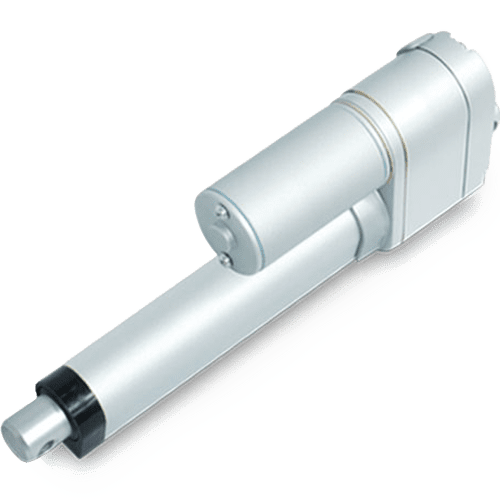

Linear actuator LD3-24-40-K3
Voltage
24 VDC
Push/pull force
1000 N
Rated speed
5.5 mm/s
Stroke
50 – 300 mm
Hall sensors
optional
Robust and strong actuators with a gear ratio 1:40 provide a push/pull force of up to 1000 N and are used in systems with high demands on the output force. The actuator can be ordered with built-in Hall sensors.
Technical data
Rated current
1.6 A
No load current
0.6 A
Push/pull force (max)
1000 N
Self-locking force (max)
2500 N
Rated (full load) speed
5.5 mm/s
No load speed
7.0 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:40
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
14.27 pulses/mm
Operation temperature
-26°C ... +65°C
Rated current
1.6 A
No load current
0.6 A
Push/pull force (max)
1000 N
Self-locking force (max)
2500 N
Rated (full load) speed
5.5 mm/s
No load speed
7.0 mm/s
Available stroke length
50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm
Protection class
IP54
Noise level
≤70 dB
Gear ratio
1:40
Duty Cycle
25%
Positioning signal feedback
2 Hall sensors (optional)
Hall sensors resolution
14.27 pulses/mm
Operation temperature
-26°C ... +65°C
Dimensions of linear actuator LD3-24-40-K3
| Stroke, S | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|
| A, mm | 158 | 209 | 260 | 311 | 362 | 413 |
| B, mm | 208 | 309 | 410 | 511 | 612 | 713 |

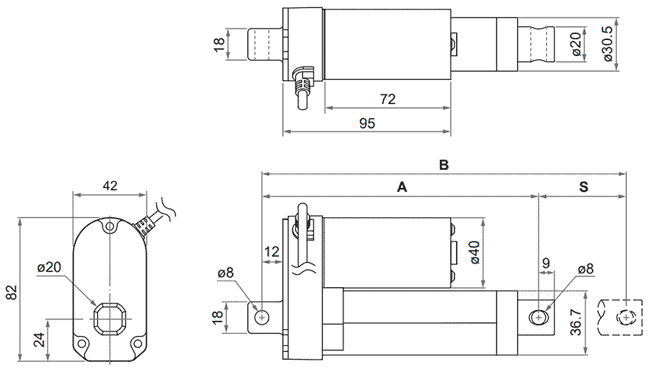

Linear actuator without Hall sensors

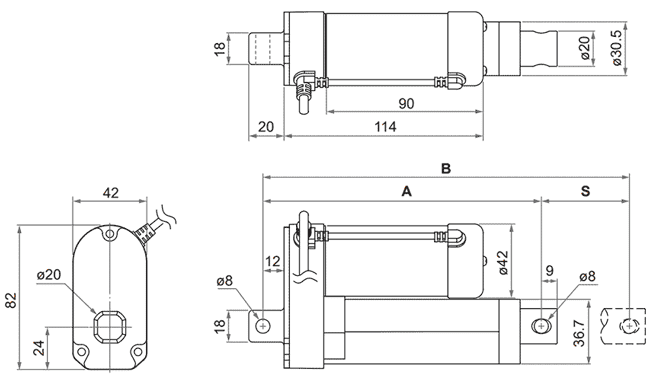

Linear actuator with 2 Hall sensors
Load diagrams of linear actuator LD3-24-40-K3

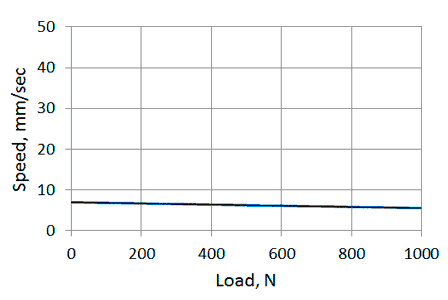

Speed/load diagram of linear actuator

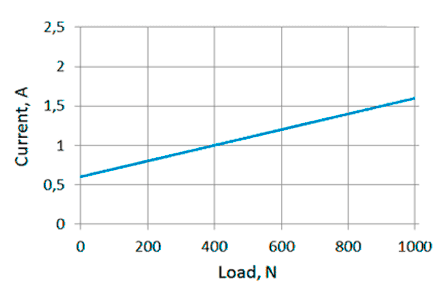

Current/load diagram of linear actuator
