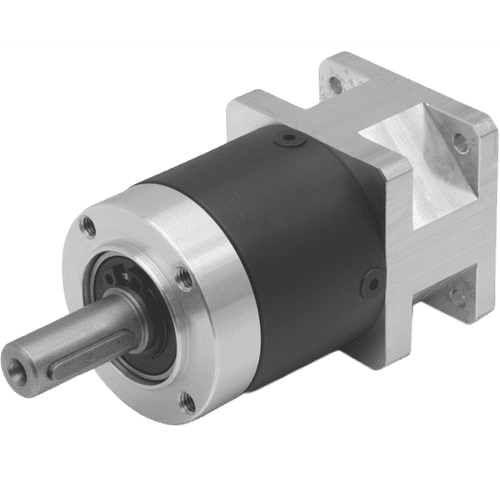

Precision planetary gearbox GPLE40

Suitable motor sizes

NEMA 17 (42 mm), NEMA 23 (56 mm), NEMA 24 (60 mm)

Rated output torque

5 - 20 Nm

Max. backlash

15´ - 22´ (arc minutes)

Efficiency

48 - 98%

Possible reduction ratios

3 - 512

The low-play planetary gearboxes for NEMA 17 (42 mm), NEMA 23 (56 mm) and NEMA 24 (60 mm) motors provide high running torques, high torsional stiffness, low circumferential backlash, high admissible axial and radial shaft loads and low running noise.

Technical data

Max. input speed

18 000 rpm

Admissible radial shaft Load

160 N

Admissible axial shaft Load

160 N

Protection class

IP54

Operation temperature

-25°C ... +90°C

Max. input speed

18 000 rpm

Admissible radial shaft Load

160 N

Admissible axial shaft Load

160 N

Protection class

IP54

Operation temperature

-25°C ... +90°C

Reduction ratios of precision planetary gearbox GPLE40

Reduction ratio	Rated output torque, Nm	Max. output torque, Nm	Efficiency, %	Max. backlash, arc minutes	Moment of inertia, kg∙mm²	Length L1, mm	Length L, mm		Weight, kg
Reduction ratio	Rated output torque, Nm	Max. output torque, Nm	Efficiency, %	Max. backlash, arc minutes	Moment of inertia, kg∙mm²	Length L1, mm	NEMA 17	NEMA 23 NEMA 24	Weight, kg
3	11	17.5	98	15	3.1	39	66.5	63.5	0.35
4	15	24	98		2.2
5	14	22	98		1.9
8	6	10	96		1.7
10	5	8	95		1.6			-
9	16.5	26	97	19	3	52	79.5	76.5	0.45
12	20	32	96		2.9
15	18	29	96		2.3
16	20	32	96		2.2
20	20	32	96		1.9
25	18	29	95		1.9
32	20	32	95		1.7
40	18	29	94		1.6
64	7.5	12	86		1.6
60	20	32	92	22	2.9	64.5	92	89	0.55
80	20	32	90		1.9
100	20	32	89		1.9
120	18	29	87		2.9
160	20	32	86		1.6
200	18	29	82		1.6
256	20	32	81		1.6
320	18	29	76		1.6
512	7.5	12	48		1.6

Dimensions of precision planetary gearbox GPLE40

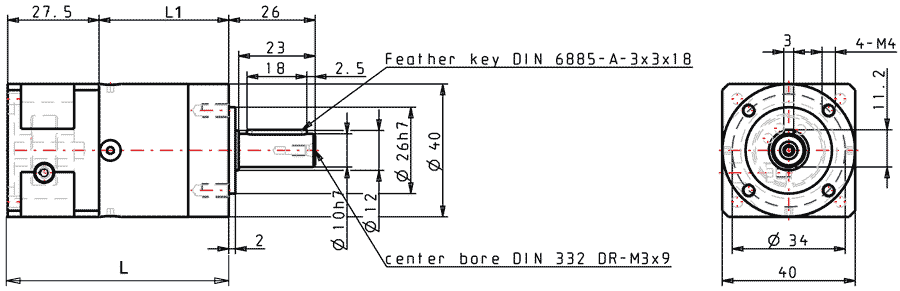

Dimensions of GPLE40 for NEMA 17 motor size

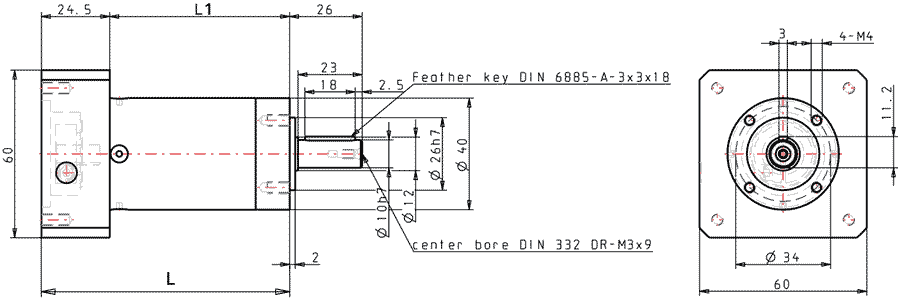

Dimensions of GPLE40 for NEMA 23 and NEMA 24 motor sizes

Description of precision planetary gearbox GPLE40

Note: the spacer sleeve MK-DH-6,35-8-GPLE40 must also be ordered if this gearbox will be attached to motors with an 6,35 mm shaft.

Downloads

Brief description

3D model GPLE40-1S NEMA 17 (for gear ratios 3-10)

3D model GPLE40-1S NEMA 23, NEMA 24 (for gear ratios 3-10)

3D model GPLE40-2S NEMA 17 (for gear ratios 9-64)

3D model GPLE40-2S NEMA 23, NEMA 24 (for gear ratios 9-64)

3D model GPLE40-3S NEMA 17 (for gear ratios 60-512)

3D model GPLE40-3S NEMA 23, NEMA 24 (for gear ratios 60-512)
