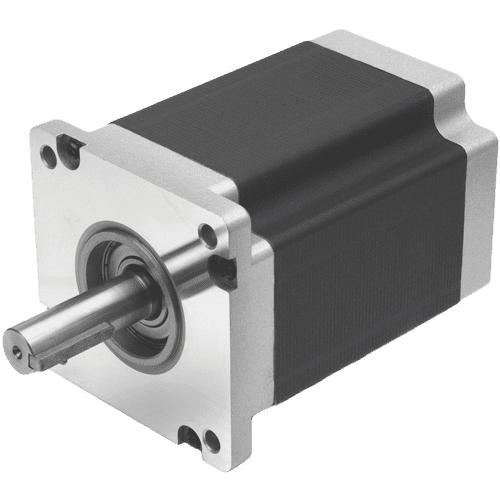

High-torque stepper motor ST11018L8004-A
Size
NEMA 42
Flange
110 mm
Holding torque
250 kgf∙cm
Current per phase
8.0 A
Length
201 mm
High-torque stepper motor in size NEMA 42 (110 mm) with 1.8° step angle (full step). Ideal solution for direct drives because of its high torque in relation to the motor size. An extensive range of customized shaft and cable versions as well as custom-made products are available upon a request.
Technical data
Bipolar connection:
Holding torque
250 kgf∙cm
Current per phase
8.0 A
Phase resistance
1.0 Ohm
Inductance
17.1 mH
Rotor inertia
16200 gcm²
Step angle
1.8°
Weight
11.7 kg
Length «A»
201 mm
Bipolar connection:
Holding torque
250 kgf∙cm
Current per phase
8.0 A
Phase resistance
1.0 Ohm
Inductance
17.1 mH
Rotor inertia
16200 gcm²
Step angle
1.8°
Weight
11.7 kg
Length «A»
201 mm

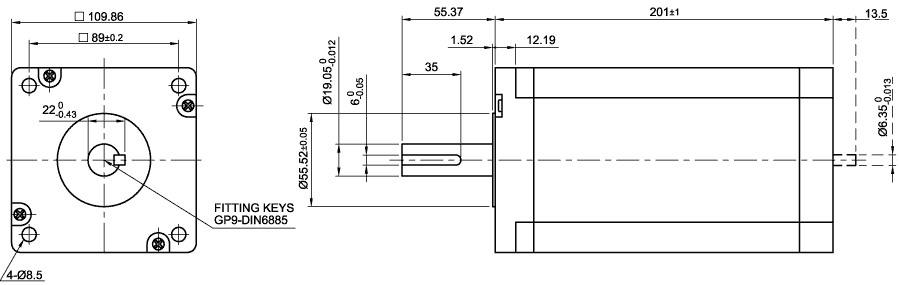

Dimensions of stepper motor ST11018L8004-A
