Brush DC gearmotor SM5946W
Rated torque
30 kgf∙cm
Rated speed
80 rpm
Voltage
12 V
Gearhead
worm, 1/30
Current
< 5 A

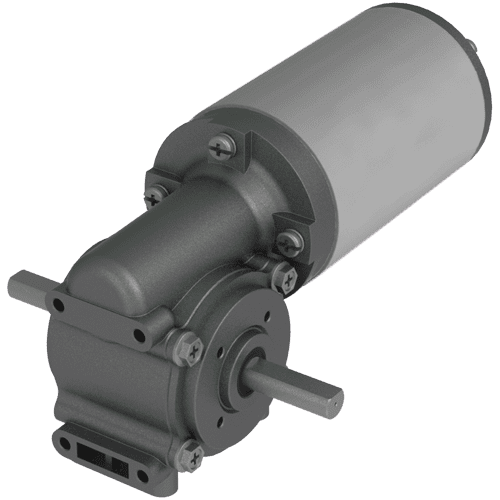

![SM5946W](/files/products/dc-brush-motors/sm5946w/sm5946w.png)
SM5946W is a DC brush motor with a worm gearhead. The motor is reversible, maintenance-free. Gearmotor is self-impeding. Supply voltage 12 VDC is suitable for a wide range of applications. 24 VDC power supply is upon a request. The standard reduction ratio is 1/30. Other ratios are on request.

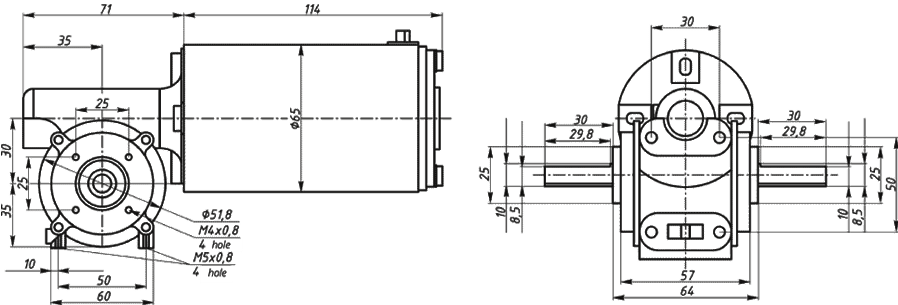

Dimensions of brush DC gearmotor SM5946W
![Dimensions of brush DC gearmotor SM5946W](/files/products/dc-brush-motors/sm5946w/sm5946w-dimensions.png)
