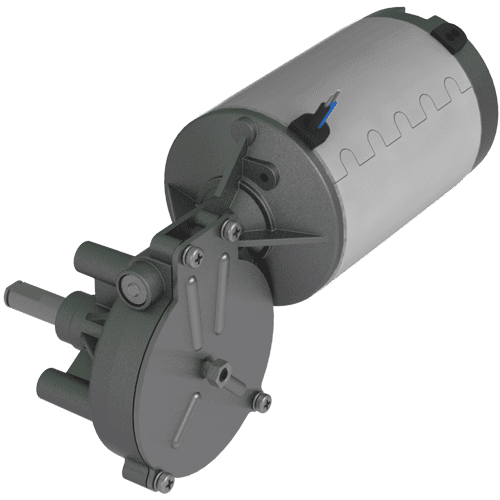

Brush DC gearmotor SM6551W
Rated torque
78 kgf∙cm
Rated speed
54 rpm
Voltage
24 V
Gearhead
worm, 1/65
Current
< 2.9 A
![SM6551W](/files/products/dc-brush-motors/sm6551w/sm6551w.png)
A reversible DC brush motor is equipped with a worm gearhead. The motor is maintenance-free. The worm gearbox is self-impeding, this is useful feature for some systems. Supply voltage 24 VDC is common for industrial using. We supply the geared motor reduction ratio 1/65.

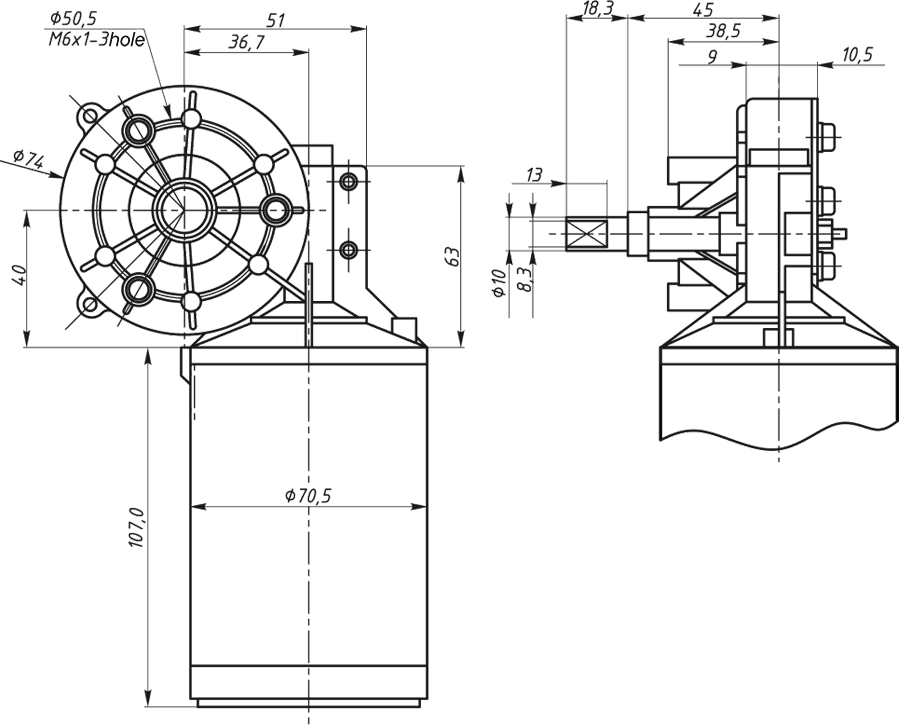

Dimensions of brush DC gearmotor SM6551W
![Dimensions of brush DC gearmotor SM6551W](/files/products/dc-brush-motors/sm6551w/sm6551w-dimensions.png)
