Brush DC gearmotor SM7165W
Rated torque
110 kgf∙cm
Rated speed
87 rpm
Voltage
24 V
Gearhead
worm, 1/30
Current
< 8.3 A
![SM7165W](/files/products/dc-brush-motors/sm7165w/sm7165w.png)

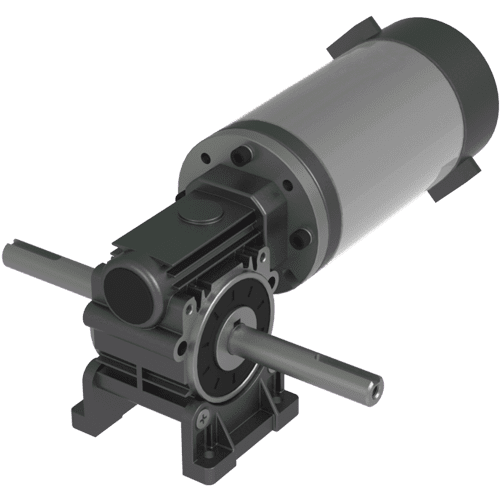

SM7165W is a DC brush motor with worm gearhead. The motor is reversible, maintenance-free. Gearmotor is self-impeding. The standard reduction ratio is 1/30. Other ratios are on request.

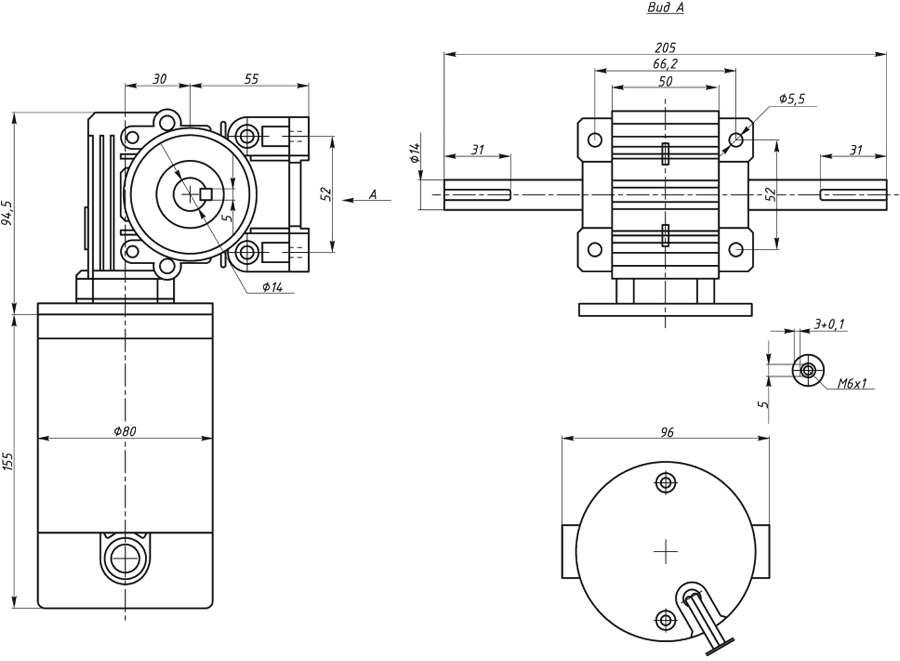

Dimensions of brush DC gearmotor SM7165W
![Dimensions of brush DC gearmotor SM7165W](/files/products/dc-brush-motors/sm7165w/sm7165w-dimensions.png)
