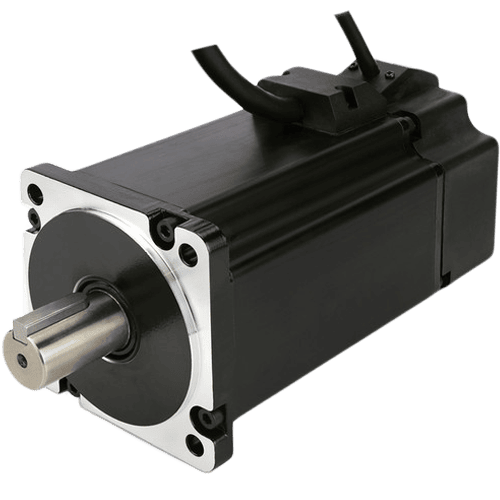

Brushless DC motor APBA80L048030-E

Size

NEMA 32

Flange

80 mm

Rated power

1000 W

Voltage

48 V

Rated speed

3000 rpm

With their rated power of 1,000 W, the high-performance BLDC motor APBA80L048030-E not only matches the power of AC servo motors with 80 mm flange but are also mechanically compatible. It is rated IP65 and comes standard with an integrated encoder. The incremental encoder resolution is 2500 CPR.

Technical data

Rated torque

32.63 kgf∙cm

Peak torque

97.89 kgf∙cm

Rated current

30 A

Peak current

90 A

Rotor inertia

170 gcm²

Torque constant

10.7 N∙cm/A

Line to line inductance

0.21 mH

Line to line resistance

0.043 Ohm

Weight

3.2 kg

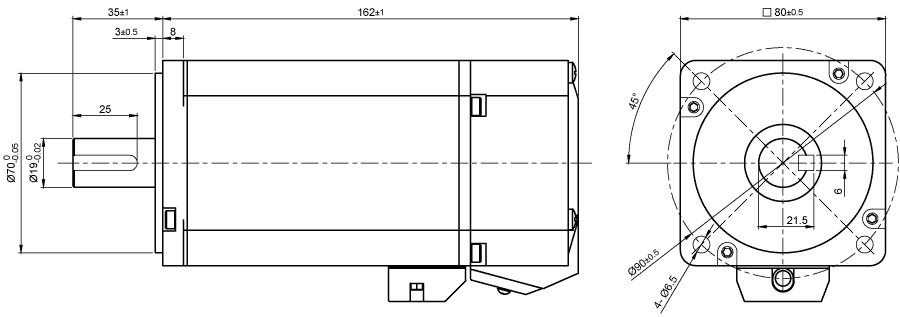

Length «A»

162 mm

Encoder

yes

Encoder type

incremental

Encoder resolution

2500 CPR

Operating voltage (encoder)

5 V

IP-protection motor

IP65
