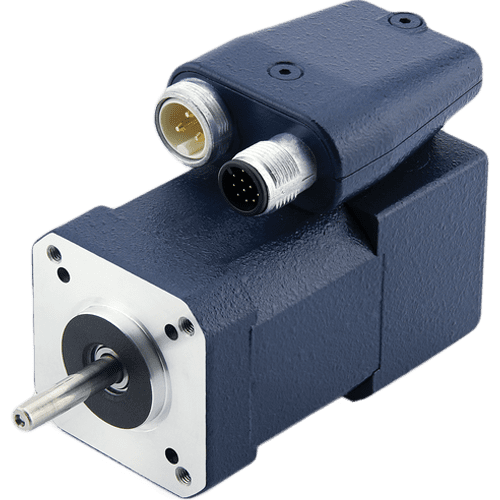

Brushless DC motor ASB42C048060-ENM
Size
NEMA 17
Flange
42 mm
Rated power
160 W
Voltage
48 V
Rated speed
6000 rpm
NEMA 17 BLDC motor (42 mm) with protection class IP65 (except shaft output). With M16 and M12 connectors for power and rotary encoder. For higher torques and a wider performance range we offer planetary gearboxes with an identical construction.
Technical data
Rated torque
2.55 kgf∙cm
Peak torque
7.65 kgf∙cm
Rated current
4.63 A
Peak current
13.89 A
Rotor inertia
96 gcm²
Torque constant
5.4 N∙cm/A
Line to line inductance
1.21 mH
Line to line resistance
0.58 Ohm
Length «A»
121 mm
Encoder
yes
Encoder type
optical
Encoder resolution
1024 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Rated torque
2.55 kgf∙cm
Peak torque
7.65 kgf∙cm
Rated current
4.63 A
Peak current
13.89 A
Rotor inertia
96 gcm²
Torque constant
5.4 N∙cm/A
Line to line inductance
1.21 mH
Line to line resistance
0.58 Ohm
Length «A»
121 mm
Encoder
yes
Encoder type
optical
Encoder resolution
1024 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65

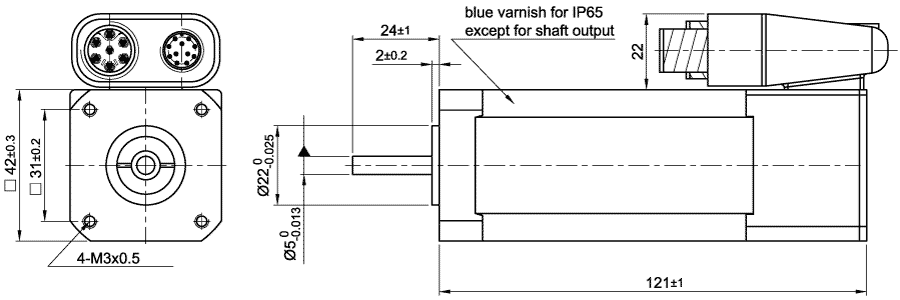

Dimensions of brushless DC motor ASB42C048060-ENM
