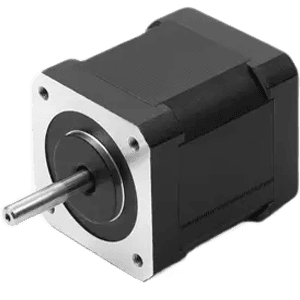

Brushless DC motor DB42C02
Size
NEMA 17
Flange
42 mm
Rated power
147 W
Voltage
48 V
Rated speed
14000 rpm
BLDC motor with quiet running characteristics, high acceleration rates, a long service life and speeds of up to 14000 rpm. By mounting an encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques and a wider performance range we offer planetary gearboxes. If use DB42C02 series with a gearbox, the motor speed must not exceed the maximum input speed of the gearbox.
Technical data
Rated torque
1.02 kgf∙cm
Peak torque
3.059 kgf∙cm
Rated current
3.57 A
Peak current
10.71 A
Rotor inertia
89 gcm²
Torque constant
2.8 N∙cm/A
Line to line inductance
0.32 mH
Line to line resistance
0.2 Ohm
Weight
0.75 kg
Length «A»
100 mm
Rated torque
1.02 kgf∙cm
Peak torque
3.059 kgf∙cm
Rated current
3.57 A
Peak current
10.71 A
Rotor inertia
89 gcm²
Torque constant
2.8 N∙cm/A
Line to line inductance
0.32 mH
Line to line resistance
0.2 Ohm
Weight
0.75 kg
Length «A»
100 mm

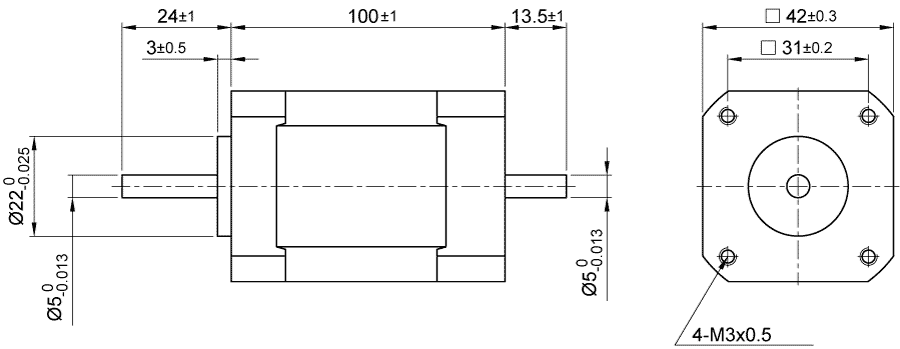

Dimensions of brushless DC motor DB42C02
