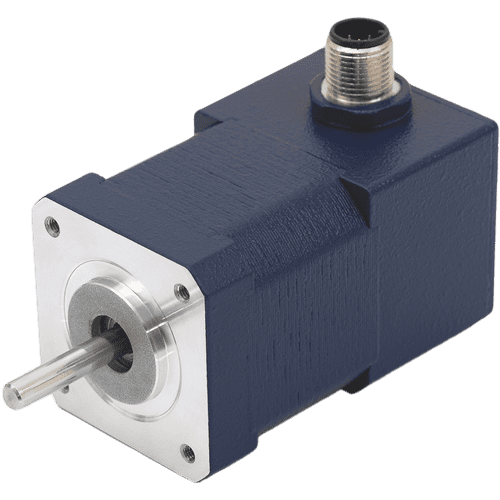

Stepper motor IP65 with encoder AS4118L1804-E
Size
NEMA 17
Flange
42 mm
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Length
70.4 mm
High-torque stepper motor with M12 connector with protection class IP65 (except shaft output) in size NEMA 17 (42 mm) and 1.8° step angle (full step). Identical flange size as the standard motor ST4118, therefore electrically and mechanically interchangeable.
Technical data
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Phase resistance
1.75 Ohm
Inductance
3.3 mH
Rotor inertia
82 gcm²
Step angle
1.8°
Brake
no
Encoder
yes
Encoder type
incremental
Encoder resolution
500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Weight
0.34 kg
Length «A»
70.4 mm
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Phase resistance
1.75 Ohm
Inductance
3.3 mH
Rotor inertia
82 gcm²
Step angle
1.8°
Brake
no
Encoder
yes
Encoder type
incremental
Encoder resolution
500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Weight
0.34 kg
Length «A»
70.4 mm

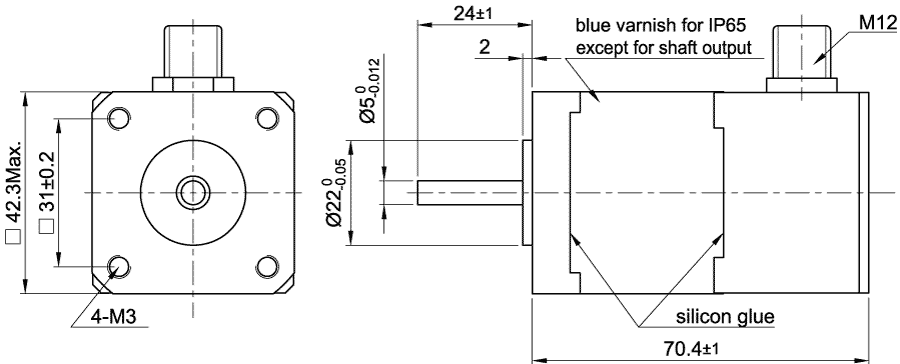

Dimensions of stepper motor IP65 with encoder AS4118L1804-E
