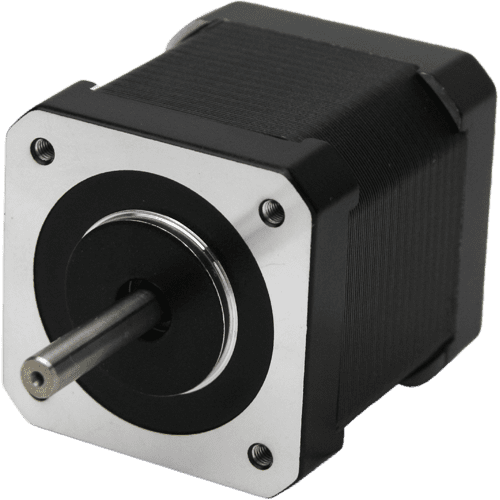

Stepper motor FL42STH47-1684A

Size

NEMA 17

Flange

42 mm

Holding torque

4.4 kgf∙cm

Current per phase

1.68 A

Length

47.5 mm

FL42STH47-1684A

The FL42STH47-1684A stepper motors in NEMA 17 size are highly regarded for their versatility and are a popular choice for a wide range of robotic projects, mechatronics system design and programming, as well as for design enthusiasts. These stepper motors find extensive use in numerous products and applications where precise control of shaft position is essential.

Technical data

Rotor inertia

68 gcm²

Phase inductance

2.8 mH

Phase resistance

1.65 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.35 kg

Rotor inertia

68 gcm²

Phase inductance

2.8 mH

Phase resistance

1.65 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.35 kg

Dimensions of stepper motor FL42STH47-1684A

Dimensions of stepper motor FL42STH47-1684A
