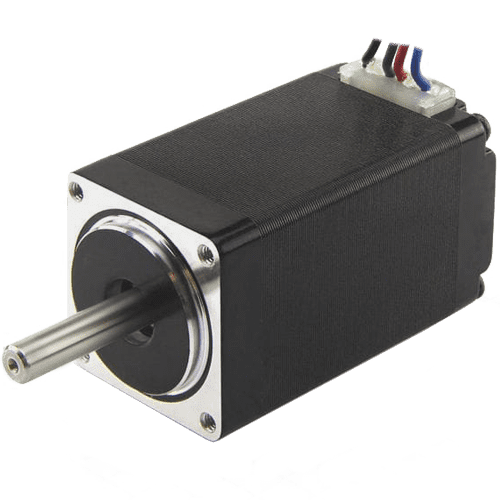

Miniature stepper motor ST2818S1006-A
Size
NEMA 11
Flange
28 mm
Holding torque
0.6 kgf∙cm
Current per phase
0.67 A
Length
31.5 mm
High-torque stepper motor in size NEMA 11 (28 mm) with 1.8° step angle (full step). Ideal for applications in laboratory analysis. An extensive range of customized shaft and cable versions as well as custom-made products are available upon a request.
Technical data
Unipolar connection:
Holding torque
0.4 kgf∙cm
Current per phase
0.95 A
Phase resistance
2.8 Ohm
Inductance
0.85 mH
Bipolar connection:
Holding torque
0.6 kgf∙cm
Current per phase
0.67 A
Phase resistance
5.6 Ohm
Inductance
3.4 mH
Rotor inertia
9 gcm²
Step angle
1.8°
Weight
0.11 kg
Length «A»
31.5 mm
Unipolar connection:
Holding torque
0.4 kgf∙cm
Current per phase
0.95 A
Phase resistance
2.8 Ohm
Inductance
0.85 mH
Bipolar connection:
Holding torque
0.6 kgf∙cm
Current per phase
0.67 A
Phase resistance
5.6 Ohm
Inductance
3.4 mH
Rotor inertia
9 gcm²
Step angle
1.8°
Weight
0.11 kg
Length «A»
31.5 mm

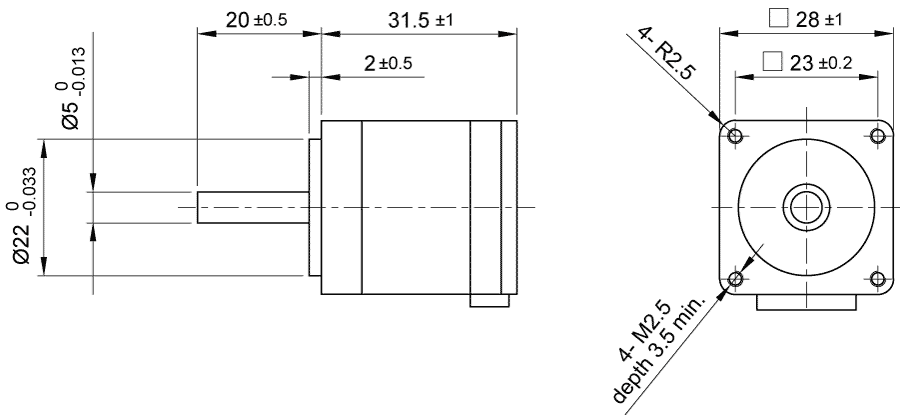

Dimensions of stepper motor ST2818S1006-A
