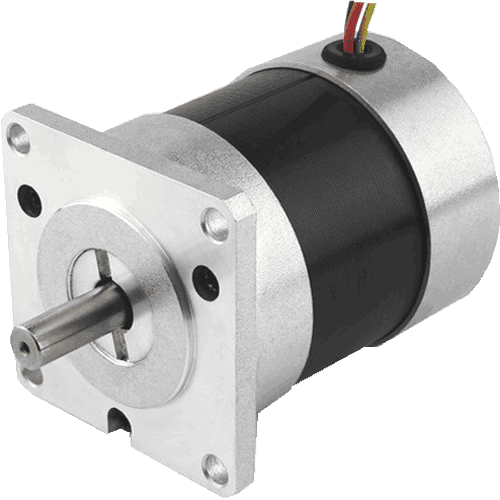

Brushless DC motor DB59C024035-A
Size
NEMA 23
Flange
56 mm
Rated power
220 W
Voltage
24 V
Rated speed
3500 rpm
Brushless DC motor with high efficiency and quiet running properties; power 220 W. DB59C024035-A is one of the most powerful BLDC motors of this size. For higher torques and a wider performance range we offer planetary gearboxes.
Technical data
Rated torque
6.118 kgf∙cm
Peak torque
18.35 kgf∙cm
Rated current
13.6 A
Peak current
40 A
Rotor inertia
173 gcm²
Torque constant
4.4 N∙cm/A
Line to line inductance
0.2 mH
Line to line resistance
0.135 Ohm
Weight
0.95 kg
Length «A»
93.6 mm
Rated torque
6.118 kgf∙cm
Peak torque
18.35 kgf∙cm
Rated current
13.6 A
Peak current
40 A
Rotor inertia
173 gcm²
Torque constant
4.4 N∙cm/A
Line to line inductance
0.2 mH
Line to line resistance
0.135 Ohm
Weight
0.95 kg
Length «A»
93.6 mm

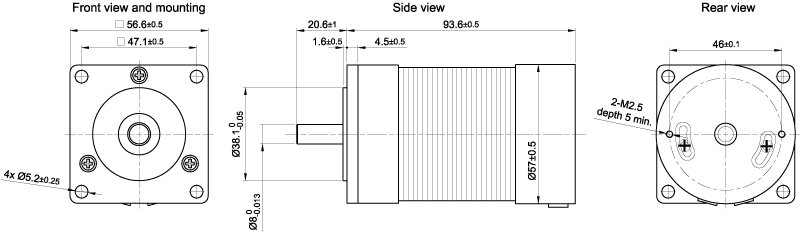

Dimensions of brushless DC motor DB59C024035-A
