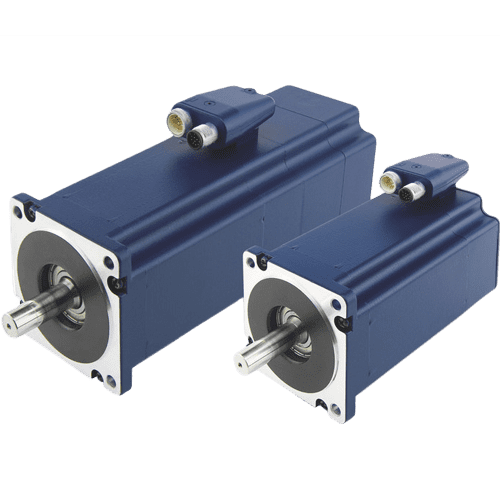

High-torque stepmotor IP65 with encoder AS8918L9504-E24

Size

NEMA 34

Flange

86 mm

Holding torque

93.3 kgf∙cm

Current per phase

9.5 A

Length

148 mm

AS8918L9504-E24

High-torque stepper motor with M12 connector with protection class IP65 (except shaft output) in size NEMA 34 (86 mm) and 1.8° step angle (full step). Identical flange size as the standard motor ST8918, therefore electrically and mechanically interchangeable.

Technical data

Holding torque

93.3 kgf∙cm

Current per phase

9.5 A

Phase resistance

0.26 Ohm

Inductance

2.7 mH

Rotor inertia

3000 gcm²

Step angle

1.8°

Brake

no

Encoder

yes

Encoder type

incremental

Encoder resolution

4000 CPR

Operating voltage (encoder)

24 V

IP-protection motor

IP65

Weight

4.35 kg

Length «A»

148 mm

Holding torque

93.3 kgf∙cm

Current per phase

9.5 A

Phase resistance

0.26 Ohm

Inductance

2.7 mH

Rotor inertia

3000 gcm²

Step angle

1.8°

Brake

no

Encoder

yes

Encoder type

incremental

Encoder resolution

4000 CPR

Operating voltage (encoder)

24 V

IP-protection motor

IP65

Weight

4.35 kg

Length «A»

148 mm

Dimensions of stepper motor IP65 with encoder AS8918L9504-E24

Dimensions of stepper motor IP65 with encoder AS8918L9504-E24
