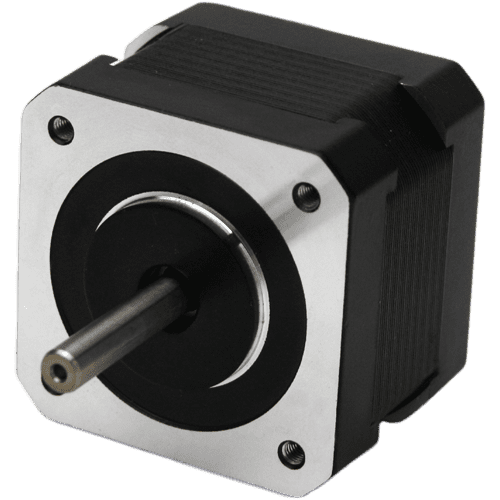

NEMA 17 Stepper motor FL42STH33-1334A

Size

NEMA 17

Flange

42 mm

Holding torque

2.2 kgf∙cm

Current per phase

1.33 A

Length

33.5 mm

FL42STH33-1334A

NEMA 17 FL42STH33 motors find application in a variety of equipment, including micromanipulators, positioners, solution feeders, semi-automatic multivariate controllers, sampling equipment, automatic analyzers, mixing devices, and instruments used for petroleum product analysis.

Technical data

Rotor inertia

35 gcm²

Phase inductance

2.5 mH

Phase resistance

2.1 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.22 kg

Rotor inertia

35 gcm²

Phase inductance

2.5 mH

Phase resistance

2.1 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.22 kg

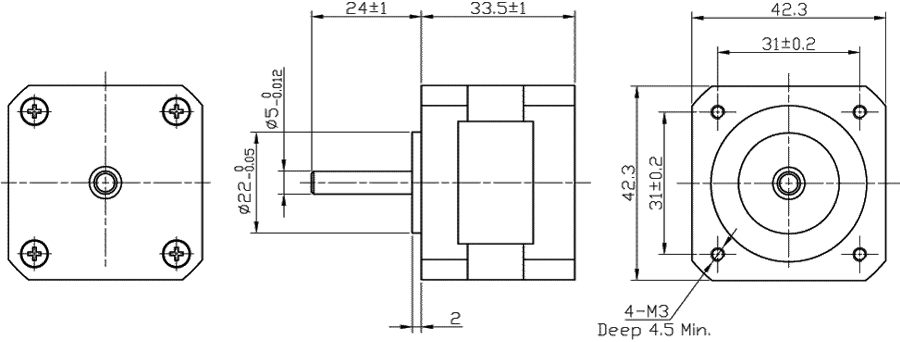

Dimensions of stepper motor FL42STH33-1334A

Dimensions of stepper motor FL42STH33-1334A
