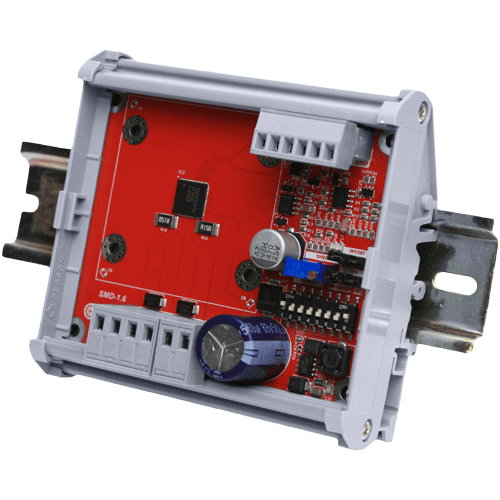

Stepper motor driver SMD-1.6 carrier kit
Voltage
12 – 24 VDC
Max. current per phase
0.1 - 1.6 A
Microstepping
1/1 - 1/128
Control methods
Analog input, STEP/DIR
Version
in an open housing with DIN clamp
Stepper motor driver SMD-1.6 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. This compact and lightweight driver is designed for smooth movement of the stepper motor with microstepping up to 1/128, provides excellent dynamics and high motor torque.

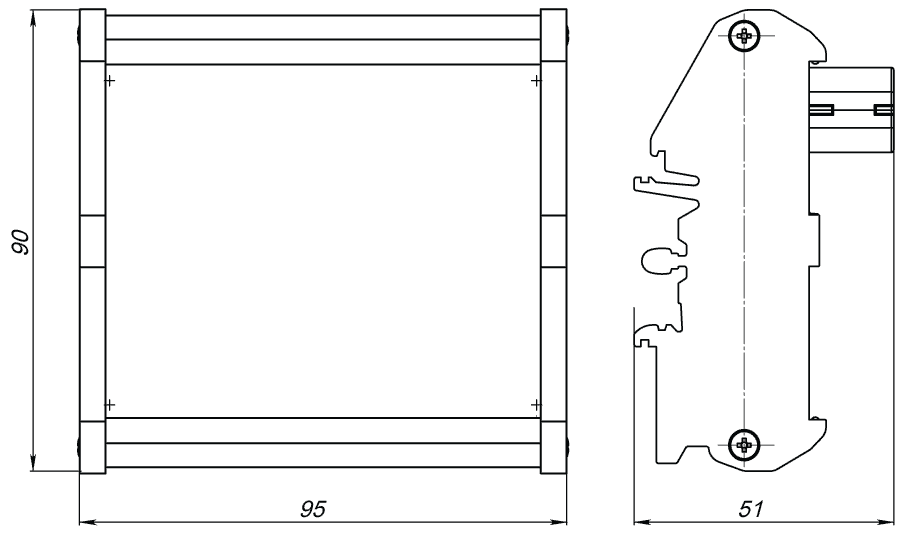

Dimensions of stepper motor driver SMD-1.6 carrier kit
Description of stepper motor driver SMD-1.6 carrier kit
Stepper motor driver SMD-1.6 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. The driver is compact and lightweight and implemented with small in size open housing. The operation of the stepper motor with SMD-1.6 DIN clamp driver is characterized by low vibration and noise. The driver is designed for smooth movement of the stepper motor with microstepping up to 1/128, provides excellent dynamics and high motor torque.
Control methods of stepper motor driver SMD-1.6 carrier kit
- Pulse position control STEP/DIR
- Speed control via analog voltage signal 0 - 10 VDC or with built-in potentiometer
