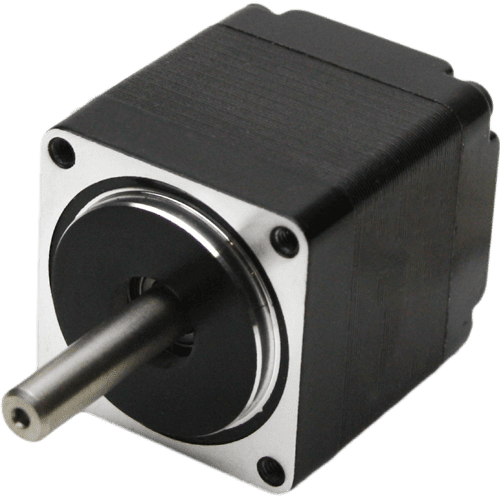

NEMA 11 Stepper motor FL28STH32-0956A
Size
NEMA 11
Flange
28 mm
Holding torque
0.43 kgf∙cm
Current per phase
0.95 A
Length
32 mm
The FL28STH32-0956A NEMA 11 hybrid stepper motor is a popular model of small-sized electric motors. Despite its miniature size, this engine has good performance characteristics, demonstrating high smooth operation with low inertia and high torque on the output shaft.
Technical data
Rotor inertia
9 gcm²
Phase inductance
1 mH
Phase resistance
2.8 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
0.11 kg
Rotor inertia
9 gcm²
Phase inductance
1 mH
Phase resistance
2.8 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
0.11 kg

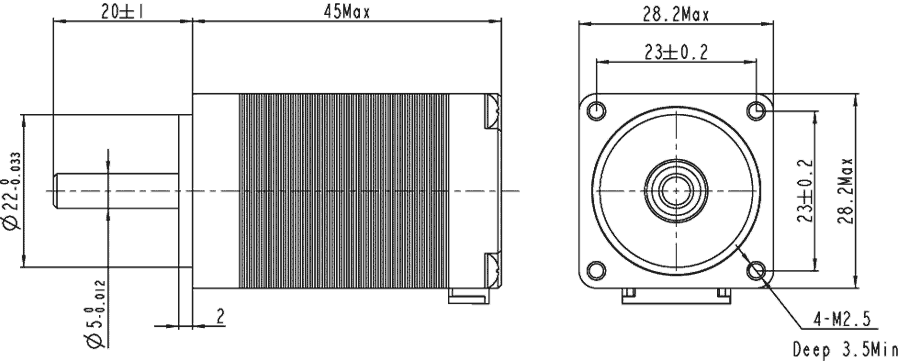

Dimensions of stepper motor FL28STH32-0956A
