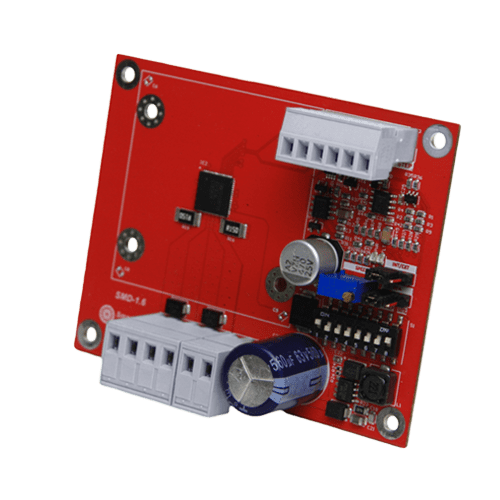

Stepper motor driver SMD-1.6 open frame
Voltage
12 – 24 VDC
Max. current per phase
0.1 - 1.6 A
Microstepping
1/1 - 1/128
Control methods
Analog input, STEP/DIR
Version
open board without housing
Stepper motor driver SMD-1.6 open frame is manufactured in a frameless design, in the form of an open board with mounting holes. There is also a carrier kit version of the driver with a DIN clamp. This compact and lightweight driver is designed for smooth movement of the stepper motor with microstepping up to 1/128, provides excellent dynamics and high motor torque.

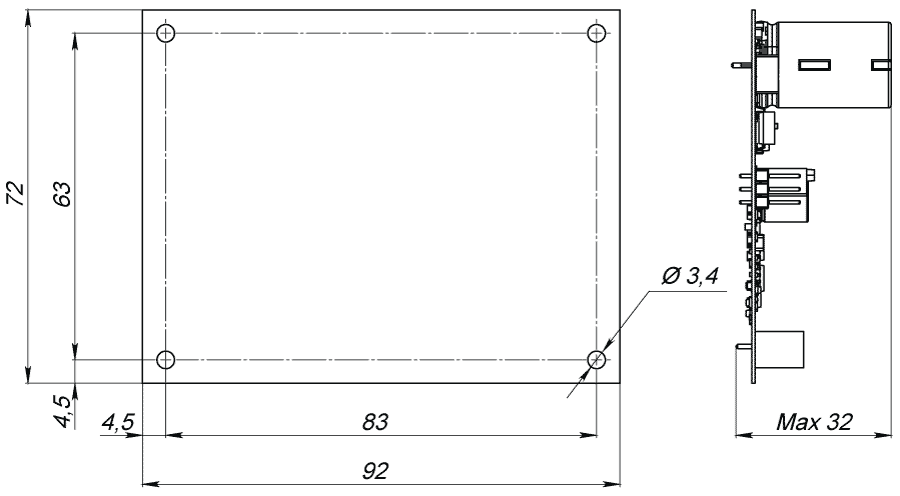

Dimensions of stepper motor driver SMD-1.6 open frame
Description of stepper motor driver SMD-1.6 open frame
The SMD-1.6 stepper motor driver is manufactured in a frameless design, in the form of an open board with mounting holes. There is also a carrier kit version of the driver with a DIN clamp. The compact and lightweight driver is small in size and does not require much space at the installation site. The operation of the stepper motor with SMD-1.6 driver is characterized by low vibration and noise. The driver works with microstepping up to 1/128, provides high motor output torque.
Control methods of stepper motor driver SMD-1.6 open frame
- Pulse position control STEP/DIR Speed control via analog voltage signal 0 - 10 VDC or with built-in potentiometer
