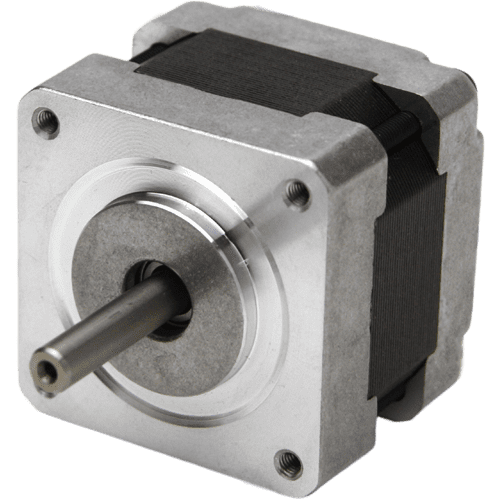

NEMA 16 Stepper motor FL39ST34-0306A

Size

NEMA 16

Flange

39 mm

Holding torque

1.3 kgf∙cm

Current per phase

0.3 A

Length

34 mm

FL39ST34-0306A

The FL39ST34-0306A is known for being one of the most user-friendly stepper motor models available. It operates with a supply voltage of 12 V in quasi-static mode, making it a popular choice for a wide range of applications. These stepper motors find extensive use in small-sized devices, lighting equipment, miniature dispensers, medical equipment.

Technical data

Rotor inertia

20 gcm²

Phase inductance

20 mH

Phase resistance

40 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.18 kg

Rotor inertia

20 gcm²

Phase inductance

20 mH

Phase resistance

40 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.18 kg

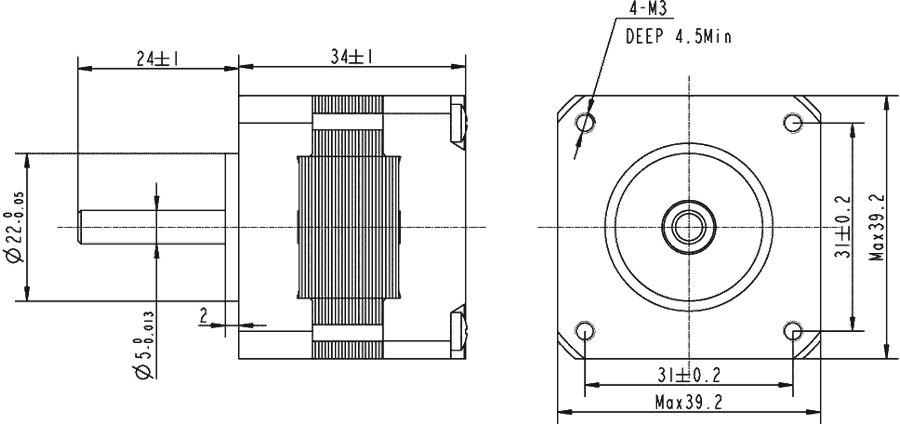

Dimensions of stepper motor FL39ST34-0306A

Dimensions of stepper motor FL39ST34-0306A
