Stepper motor FL57STH56-2804A

Size

NEMA 23

Flange

57 mm

Holding torque

12.6 kgf∙cm

Current per phase

2.8 A

Length

56 mm

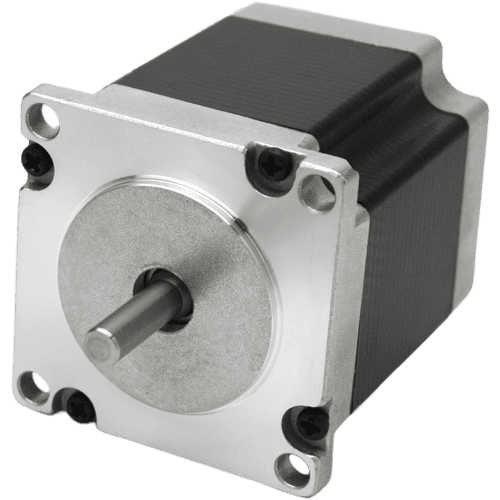

FL57STH56-2804A

The stepper motors FL57STH56-2804A, which are in the NEMA 23 size category, are commonly employed as components in actuators for linear motion systems and axes of CNC machines. These motors have a wide range of applications in industrial automation equipment, including assembly and packaging lines, as well as in the field of 3D printing.

Technical data

Rotor inertia

300 gcm²

Phase inductance

2.5 mH

Phase resistance

0.9 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.7 kg

Rotor inertia

300 gcm²

Phase inductance

2.5 mH

Phase resistance

0.9 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

0.7 kg

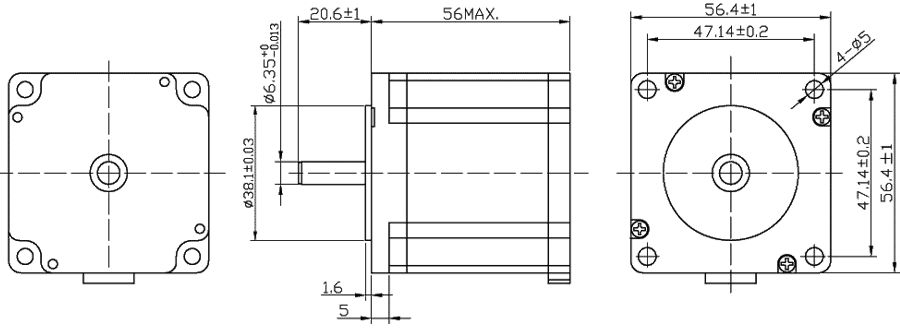

Dimensions of stepper motor FL57STH56-2804A

Dimensions of stepper motor FL57STH56-2804A
